7-27 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0069)
  • 7-27 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0069)

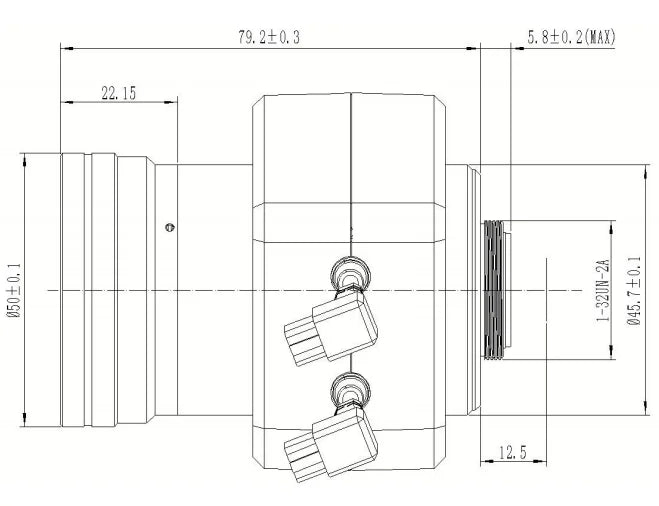

  • LS-CTV-0069 dimensions (mm)

CCTV lenses

7-27 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0069)

Model LS-CTV-0069

  • Focal length7-27mm
  • MountCS-mount
  • Sensor1/1.7"
  • ApertureF1.4 DC Iris ( P-iris optional )
  • ResolutionSupport 12 Megapixel
$339.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

7-27 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0069)LS-CTV-0069

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

7-27 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens. A 7-27 mm F1.4 motorized zoom lens for 1/1.7" cameras up to 12 megapixels, DC iris with P-iris optional, for highway, rail, industry and city surveillance. At a glance: focal length 7-27mm; format 1/1.7"; resolution Support 12 Megapixel; aperture F1.4 DC Iris ( P-iris optional ); mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0069
IR correctedIR
Format1/1.7"
Angle of view (1/1.7", DxHxV)65 x 53 x 42.2 deg
Angle of view (1/1.8", DxHxV)61 x 51 x 34.2 deg
Angle of view (1/2", DxHxV)55 x 44.3 x 33.4 deg
CRA0.3° Wide; 0.2° Tele
Notes-30°~+70°
FeaturesCoating 400~900nm
IR correctionIR
Coating400~900nm

Optics

Focal length7-27mm
ApertureF1.4 DC Iris ( P-iris optional )
M.O.D.1.5m
Distortion-8.6%~4.9%
Back focal length7.74~9.88mm
Mechanical back focal length7.23~9.38mm
Back focal length (optical)7.74~9.88mm
IrisDC

Sensor and imaging

ResolutionSupport 12 Megapixel

Mechanical

Sizedia. 50 x 85mm
MountCS
Weight200g
Shipping weight (estimated)0.38 kg
