CCTV lenses

3.8-18 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens (LS-CTV-0075)

Model LS-CTV-0075

Focal length3.8-18mm
MountCS-mount
Sensor1/1.7"
ApertureF1.5 DC Iris ( P-iris optional )
ResolutionSupport 12 Megapixel

$329.00

Ships in 2-3 weeks

0.48 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

3.8-18 mm, 1/1.7", 12 MP, CS-mount Motorized Zoom Lens. A 3.8-18 mm F1.5 motorized zoom lens for 1/1.7" cameras up to 12 megapixels, DC iris with P-iris optional, for highway, rail, industry and city surveillance. At a glance: focal length 3.8-18mm; format 1/1.7"; resolution Support 12 Megapixel; aperture F1.5 DC Iris ( P-iris optional ); mount CS.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0075
IR corrected	IR
Format	1/1.7"
Angle of view (1/1.7", DxHxV)	128 x 104 x 76 deg
Angle of view (1/2", DxHxV)	114 x 92 x 68 deg
Angle of view (1/2.9", DxHxV)	86 x 68 x 51 deg
CRA	<18.33° Wide; <9.1° Tele
Notes	-30°~+70°
Features	Coating 400~900nm
IR correction	IR
Coating	400~900nm

Optics

Focal length	3.8-18mm
Aperture	F1.5 DC Iris ( P-iris optional )
M.O.D.	1.5m
Distortion	-48%~-2%
Back focal length	7.35~18.6mm
Mechanical back focal length	7.45~8mm
Back focal length (optical)	7.35~18.6mm
Iris	DC

Sensor and imaging

Resolution	Support 12 Megapixel

Interfaces and I/O

Connector	Molex 51021-0400, P=1.25, 8-pin (zoom A+/A-/B+/B-, focus A+/A-/B+/B-), 300 +/-10 mm

Mechanical

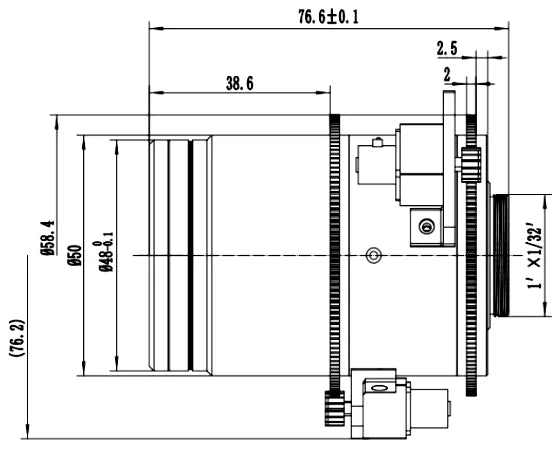

Size	dia. 50 x 76.6mm
Mount	CS
Weight	275g
Shipping weight (estimated)	0.48 kg

Downloads

Datasheet (PDF)LS-CTV-0075 · 1005 KB

Features

High resolution: 6K megapixel cover 10MP, 4K, 5MP
Suitable F. length: 3.8-18mm making up short distance surveillance
Big aperture: F1.5 suitable for dark vision
Large format: 1/1.7" large format covering 1/1.8", 1/2"
Compact size: Compact small size lens for special application
Optional Iris: DC iris ( P-iris optional )
4K 12 megapixel high resolution
Large 1/1.7" format

Applications

Highway
train
industry
power station
city surveillance
Surveillance
