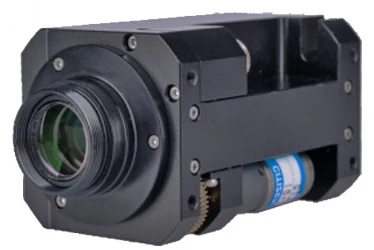

1", C/F-mount Motorized Zoom Lens (LS-SLMZ12X0672CO)

CCTV lenses

1", C/F-mount Motorized Zoom Lens, WD 85 ±2 mm (LS-CTV-0067)

Model LS-CTV-0067

MountC-mount
Sensor1"
Working distance85 ±2 mm
Resolution16.8/12.0/6.1/4.8/3.9/3.4/3.06/3.05 um

$349.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

1", C/F-mount Motorized Zoom Lens. 12X coaxial motorized linear zoom lens (0.6-7.2X) with low distortion, RS232 control and coaxial illumination input; modular auxiliary lenses and TV tubes extend magnification from 0.09 to 180X. At a glance: magnification steps 0.6, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.2 X; working distance 85 ±2 mm; max format 1" (dia. 16); mount C / F.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0067
Zoom range	0.6X - 7.2X (12X)
Max format	1" (dia. 16)
Control	RS232, built-in control card
TV tubes	0.5X, 0.67X, 1X, 2X
Format	1" (dia. 16)
Notes	Detailed FOV Field of view available upon requirement

Optics

Working distance	85 ±2 mm
Magnification steps	0.6, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.2 X
Resolution (µm) per magnification	16.8, 12.0, 6.1, 4.8, 3.9, 3.4, 3.05, 3.05
Depth of field (mm) per magnification	3.33, 1.42, 0.36, 0.19, 0.12, 0.08, 0.06, 0.05
NA per magnification	0.02, 0.028, 0.055, 0.07, 0.086, 0.1, 0.11, 0.11
TV distortion per magnification	0.04%, 0.079%, 0.07%, 0.064%, 0.004%, 0.02%, 0.010%, 0.005%
Coaxial illumination	coaxial light source inlet
Auxiliary lenses (working distance)	0.25X (WD 253), 0.5X (WD 150), 0.75X (WD 108), none (WD 85), 1.5X (WD 49), 2X (WD 38)
Depth of field (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)	3.33/1.42/0.36/0.19/0.12/0.08/0.06/0.05 mm
Aperture (NA) (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)	0.02/0.028/0.055/0.07/0.086/0.1/0.11/0.11
Distortion (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)	0.04%/0.079%/0.07%/0.064%/0.004%/0.02%/0,01%/0.005%

Sensor and imaging

Resolution (0.6x/1.0x/2.0x/3.0x/4.0x/5.0x/6.0x/7.2x)	16.8/12.0/6.1/4.8/3.9/3.4/3.06/3.05 um

Environment and compliance

Operating temperature	+10 to 35 °C
Operating humidity	20-80% RH (no condensation)
Humidity	20~80% RH (No Condensation)

Mechanical

Mount	C / F
Length (from datasheet drawing)	144.4 mm coaxial version, 126.5 mm standard version
Shipping weight (estimated)	0.80 kg

Downloads

Datasheet (PDF)LS-CTV-0067 · 1005 KB

Features

Modular design covers 0.09 to 180X optical magnification with high resolution and contrast
Works with all common operating systems
Stable, smooth zoom with minimal center offset; repeat positioning accuracy up to 1 µm
Light source can be fitted as required
Controlled from intelligent devices over RS232, no manual operation
Rotating wheel is monitored to eliminate gear-backlash errors
Automatic zoom can be designed for single-, dual- or multi-axis curves
Low distortion 0.04%~0.002%

Applications

Closed precision machining
Industrial high-precision measurement
Highly integrated medical analysis
Inspection of parts with different depth of field or stepped surfaces

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Motorized Zoom lenses (LS-CTV-S04) series

See all 30 models
