15-75 mm, 1/1.7", 12 MP, C-mount Motorized Zoom Lens (LS-CTV-0073)

Model LS-CTV-0073

Focal length15-75mm
MountC-mount
Sensor1/1.7"
ApertureF1.4 DC Iris ( P-iris optional )
ResolutionSupport 12 Megapixel

$349.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

15-75 mm, 1/1.7", 12 MP, C-mount Motorized Zoom Lens. A 15-75 mm F1.4 motorized zoom lens for 1/1.7" cameras up to 12 megapixels, DC iris with P-iris optional, for highway, rail, industry and city surveillance. At a glance: focal length 15-75mm; format 1/1.7"; resolution Support 12 Megapixel; aperture F1.4 DC Iris ( P-iris optional ); mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0073
IR corrected	IR
Format	1/1.7"
Angle of view (1/1.7" 4:3, DxHxV)	33 x 26 x 20 deg
Angle of view (1/1.7" 16:9, DxHxV)	31 x 27 x 14 deg
Angle of view (1/2", DxHxV)	28 x 22.2 x 16.5 deg
CRA	<1.3° Tele; <0.52° Wide
Notes	-30°~+70°
Features	Coating 400~900nm
Motor	5V DC rated, coil resistance 30 ohm +/-7%, 2-phase bipolar, 18 deg/step, speed reduction 1:156, max starting pulse rate 1200 PPS, max slewing 2500 PPS, operating -20~+70 C
IR correction	IR
Coating	400~900nm

Optics

Focal length	15-75mm
Aperture	F1.4 DC Iris ( P-iris optional )
M.O.D.	1.5m
Distortion	-6.7%~0.7% (1/1.7")
Back focal length	8.58~11.69mm
Mechanical back focal length	6.96~10.07mm
Back focal length (optical)	8.58~11.69mm
Iris	DC

Sensor and imaging

Resolution	Support 12 Megapixel

Interfaces and I/O

Connector	Molex 51021-0400, P=1.25, 4-pin, UL1571 AWG28, 300 +/-10 mm

Mechanical

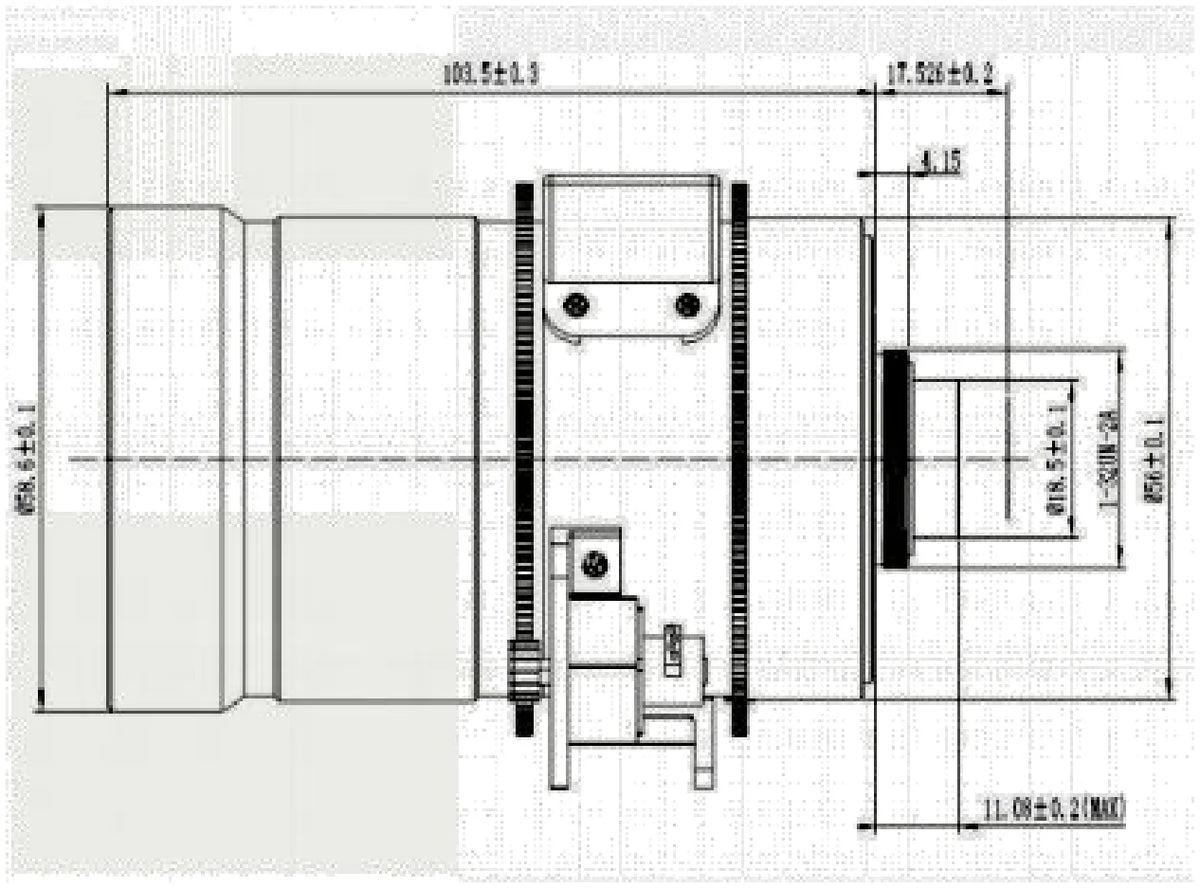

Size	dia. 58.6 x 114.58mm
Mount	C
Weight	300g
Shipping weight (estimated)	0.52 kg

Downloads

Datasheet (PDF)LS-CTV-0073 · 1005 KB

Features

High resolution: 6K megapixel cover 10MP, 4K, 5MP
Suitable F. length: 15-75mm making up short distance surveillance
Big aperture: F1.4 suitable for dark vision
Large format: 1/1.7" large format covering 1/1.8", 1/2"
Compact size: Compact small size lens for special application
Optional Iris: DC iris ( P-iris optional )
4K 12 megapixel high resolution
Large 1/1.7" format

Applications

Highway
train
industry
power station
city surveillance
Surveillance
