CCTV lenses

16-1060 mm, 1/1.7", 3 MP, C-mount Motorized Zoom Lens (LS-CTV-0084)

Model LS-CTV-0084

Focal length16-1060mm ( 64X )
MountC-mount
Sensor1/1.7"
ApertureF3.5-10.5 DC Iris
Resolution3 Megapixel

$479.00

Ships in 2-3 weeks

8.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

16-1060 mm, 1/1.7", 3 MP, C-mount Motorized Zoom Lens. 64x motorized zoom lens, 16-1060 mm F3.5-10.5 DC auto iris, for 1/1.7" cameras (covers 1/1.8", 1/2"), IR-corrected, for long-range highway, rail, power station, city, border, mountain and river surveillance. At a glance: focal length 16-1060mm ( 64X ); format 1/1.7"; resolution 3 Megapixel; aperture F3.5-10.5 DC Iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0084
IR correction	IR
Format	1/1.7"
Angle of view (1/1.7")	W: 32.1 x 28.2 x 16.1 T: 0.51 x 0.45 x 0.25
Angle of view (1/1.8")	W: 30.2 x 26.5 x 15.1 T: 0.48 x 0.42 x 0.24
ND filter	(Optional)
Notes	-10°~+50°
Features	Anti-fog (optional); temperature compensation (optional)
Coating	400~950 nm
Angle of view (1/1.7", DxHxV)	W: 32.1 x 28.2 x 16.1 / T: 0.51 x 0.45 x 0.25 deg
Angle of view (1/1.8", DxHxV)	W: 30.2 x 26.5 x 15.1 / T: 0.48 x 0.42 x 0.24 deg

Optics

Focal length	16-1060mm ( 64X )
Aperture	F3.5-10.5 DC Iris
M.O.D.	5m
Back focal length (optical)	55mm

Sensor and imaging

Resolution	3 Megapixel

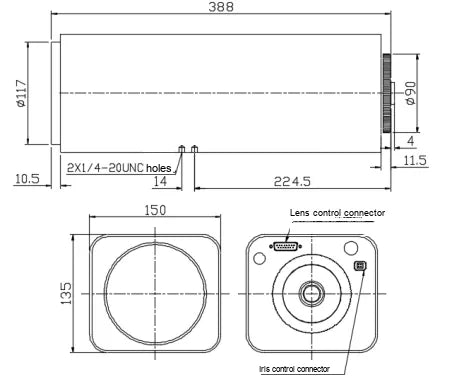

Mechanical

Filter size	M113 x P=1mm
Size	388 x 135 x 150mm
Mount	C
Weight	6kg
Shipping weight (estimated)	8.50 kg
