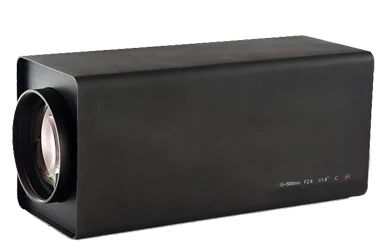

10-320 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens (LS-CTV-0078)
  • 10-320 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens (LS-CTV-0078)

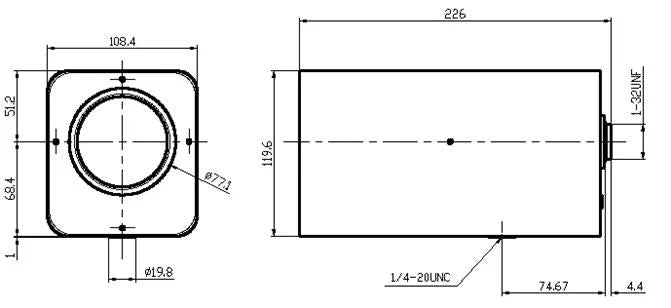

  • LS-CTV-0078 dimensions (mm)

CCTV lenses

10-320 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens (LS-CTV-0078)

Model LS-CTV-0078

  • Focal length10-320 mm
  • MountC-mount
  • Sensor1/2"
  • ApertureF2.0-360
  • Resolution2.0 Megapixel
$349.00

Ships in 2-3 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

10-320 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens (LS-CTV-0078)LS-CTV-0078

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

10-320 mm, 1/2", 2 MP, C-mount Motorized Zoom Lens. 2.0 megapixel 10-320 mm motorized zoom lens with a 1/2" format covering 1/2", 1/2.5" and 1/2.7". IR-corrected for 24 h day and night, with preset function. At a glance: focal length 10-320 mm; format 1/2"; resolution 2.0 Megapixel; aperture F2.0-360; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0078
Format1/2"
B.F.L.13.26 mm
ZoomMotorized
Angle of view (1/2", DxHxV, wide)51.2 x 41.7 x 31.8 deg
Angle of view (1/2", DxHxV, tele)1.37 x 1.11 x 0.84 deg
Coating400-950 nm
Feature2.0MP ED
MarksPreset (optional), IR function

Optics

Focal length10-320 mm
ApertureF2.0-360
IrisDC
FocusMotorized
M.O.D.1.5 m

Sensor and imaging

Resolution2.0 Megapixel

Environment and compliance

Operating temperature-10 to +50 C

Mechanical

MountC
Effective diameter (front)dia. 64.8 mm
Effective diameter (rear)dia. 18.7 mm
Size108.4 x 119.6 x 226 mm (D x H x L)
Shipping weight (estimated)0.80 kg
