CCTV lenses

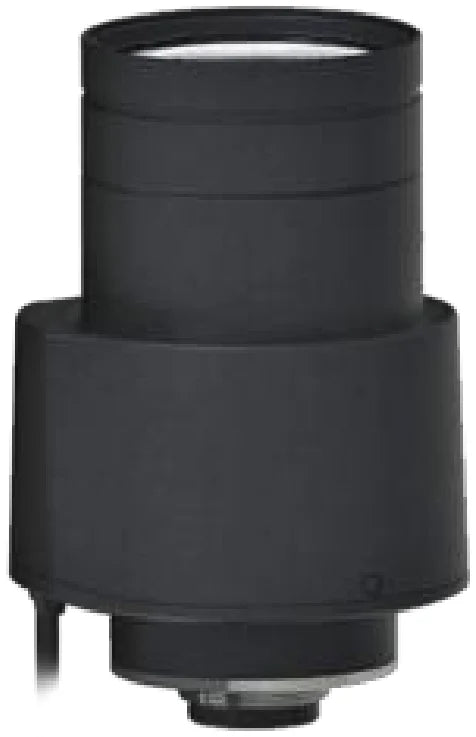

10-40 mm, 1/1.2", 12 MP, C-mount Motorized Zoom Lens (LS-CTV-0061)

Model LS-CTV-0061

Focal length10-40 mm
MountC-mount
Sensor1/1.2"
ApertureF1.3 P-Iris
Resolution12 Megapixel

$339.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

10-40 mm, 1/1.2", 12 MP, C-mount Motorized Zoom Lens. 12 megapixel 10-40 mm motorized zoom lens for 1/1.2" cameras with a large F1.3 aperture and P-iris, IR-corrected for day and night. Compact lens for highway, rail, industry, power station and city surveillance. At a glance: focal length 10-40 mm; format 1/1.2"; resolution 12 Megapixel; aperture F1.3 P-Iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0061
IR corrected	IR
Format	1/1.2"
Angle of view (1/1.2", DxHxV)	W 58.2 x 51 x 28.3 / T 20 x 17.1 x 10 ( 16:9)
Angle of view (2/3", DxHxV)	W 50 x 40 x 30 / T 17 x 14 x 10.2 (4:3)
Angle of view (1/1.8", DxHxV)	W 40.1 x 35 x 20 / T 14 x 12 x 7 (16:9)
CRA	0° T; 0.7°W (1/1.2") / 2.1°T; 2.6° W ( 1/1.8")
B.F.L.	10.28 mm
IR correction	IR
Angle of view (1/1.2" 16:9, DxHxV)	W 58.2 x 51 x 28.3 / T 20 x 17.1 x 10 deg
Angle of view (2/3" 4:3, DxHxV)	W 50 x 40 x 30 / T 17 x 14 x 10.2 deg
Angle of view (1/1.8" 16:9, DxHxV)	W 40.1 x 35 x 20 / T 14 x 12 x 7 deg
Notes	-30°~+70°

Optics

Focal length	10-40 mm
Aperture	F1.3 P-Iris
M.O.D.	W 1.5 m / T 3 m
Distortion	-9.4%~0.3% (1/1.2") / -4.4%~0.03% (1/1.8")
Relative illumination	41% @ dia. 12.8 mm
Mechanical back focal length	8.3 mm
Back focal length (optical)	10.28mm

Sensor and imaging

Resolution	12 Megapixel

Environment and compliance

Operating temperature	-30°~+70°

Mechanical

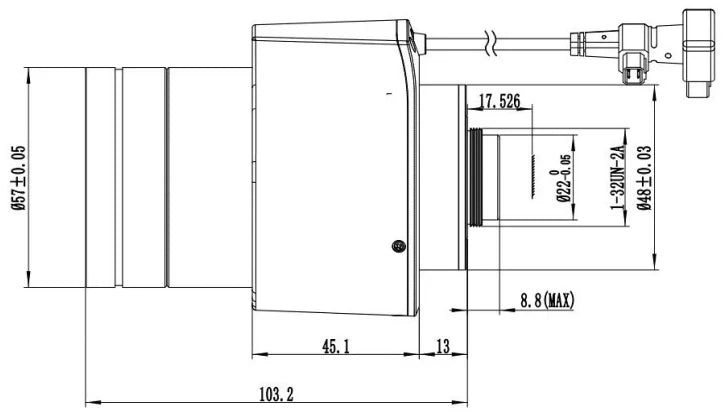

Size	dia. 57 x 112 mm
Mount	C
Weight	400 g
Shipping weight (estimated)	0.66 kg

Downloads

Datasheet (PDF)LS-CTV-0061 · 1005 KB

Features

High resolution: 12 megapixel covering 4K, 1080P
Suitable F. length: 10-40mm making up short distance surveillance.
Big aperture: F1.3 suitable for dark vision
Large format: 1/1.2" large format
Compact size: Compact small size lens for special application.
Optional Iris: P-iris
4K 12 megapixel high resolution
Large 1/1.2" format

Applications

Highway
Trains
Industry
Power stations
City surveillance
Surveillance
