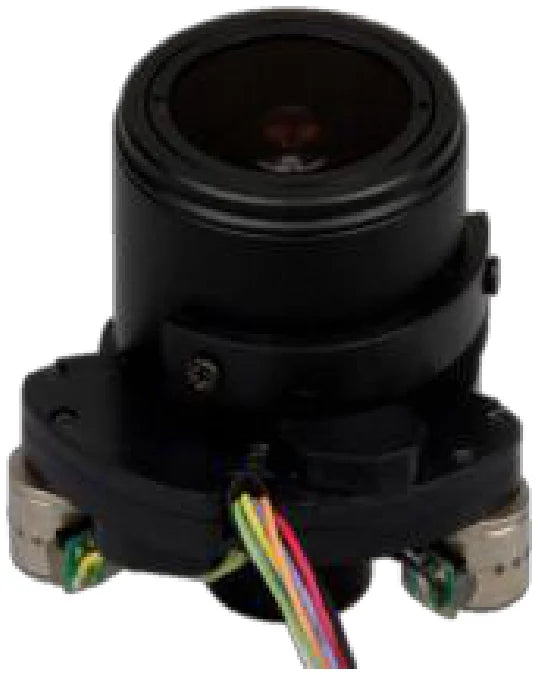

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Fixed Iris (LS-CTV-0065)
  • 2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Fixed Iris (LS-CTV-0065)

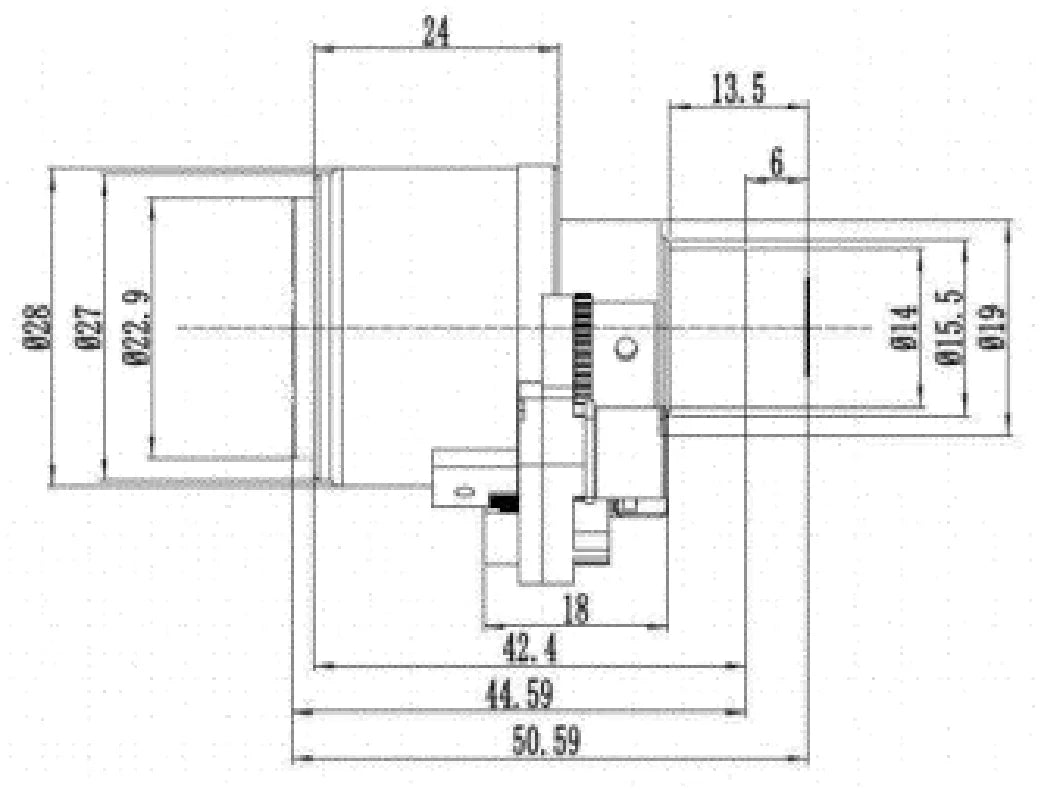

  • LS-CTV-0065 dimensions (mm)

CCTV lenses

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Fixed Iris (LS-CTV-0065)

Model LS-CTV-0065

  • Focal length2.8-12mm
  • MountD14
  • Sensor1/2.7"
  • ApertureFixed Iris
  • Resolution3.0 Megapixel
$329.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.16 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens, Fixed Iris (LS-CTV-0065)LS-CTV-0065

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.8-12 mm, 1/2.7", 3 MP, D14-mount Motorized Zoom Lens. 3.0 megapixel 2.8-12 mm motorized zoom lens for 1/2.7" sensors, with a plug-in D14 mount (D14 or M12 interface optional). At a glance: focal length 2.8-12mm; format 1/2.7"; resolution 3.0 Megapixel; aperture type Fixed Iris; mount dia. 14 (D14).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0065
IR correctionIR
Format1/2.7"
Angle of view (1/2.7", DxHxV)140 x 100 x 72 deg
Angle of view (1/3", DxHxV)120 x 89 x 64 deg

Optics

Focal length2.8-12mm
Aperture typeFixed Iris
ApertureF1.8
M.O.D.0.3m
Distortion-64.5% ~ -4.3%
Back focal length (optical)7.1~13.6mm
Mechanical back focal length6mm
Total track length (TTL)65.6mm

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 28 x 42.4mm
Mountdia. 14 (D14)
Weight41g
Shipping weight (estimated)0.16 kg
