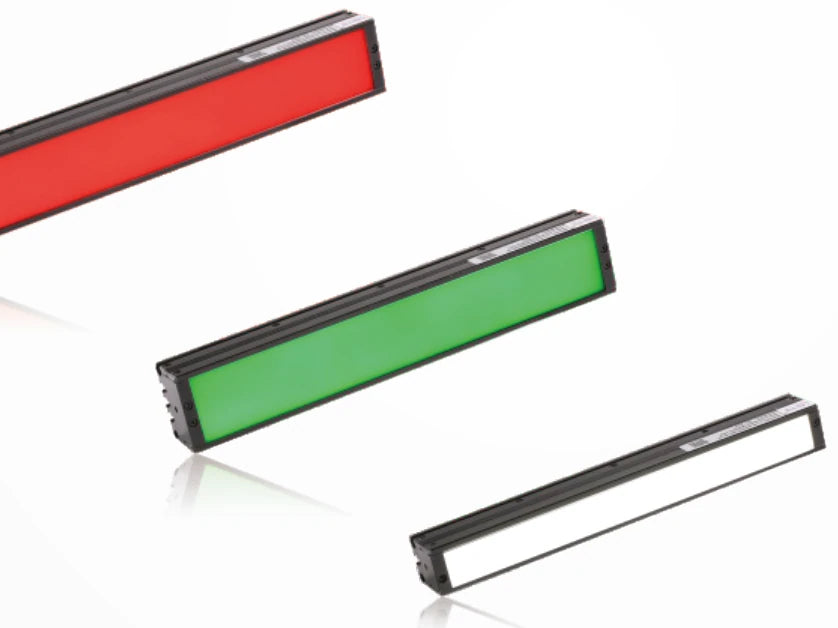

High uniformity bar light (LS-BAR-S69)
- 40 models
- from $89.00
- Series LS-BAR-S69
The High uniformity bar light (LS-BAR-S69) is a range of 40 bar lights from LumaSpec Vision, from $89.00. It comes in 40 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 30 mm, 42 x 16 mm, 62 x 30 mm, 72 x 16 mm, 87 x 30 mm, 102 x 16 mm, 112 x 30 mm, 132 x 16 mm, 137 x 30 mm, 162 x 16 mm, 162 x 30 mm, 187 x 30 mm, 192 x 16 mm, 212 x 30 mm, 222 x 16 mm, 237 x 30 mm and 24 more
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Voltage
- 24 V
Features
- Wide-angle LED array design, high luminance
- Made with high-precision moulds, smaller difference between batches, high heat-dissipation performance
- Multiple installation methods, easy to install: frame structure keeps the built-in installing holes, M3 screw and nut (not attached)
- Different transmittance diffuser plates optional
- Wide-angle surface-mount (paste) LEDs behind a high-diffusivity diffuser (transmittance optional)
- Wire jacket covers the cable exit, anti-pull
- Customizable: Light array quantities, Length & width, Combined light, Colour & colour temperature, Multi-area control, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Metal surface defect inspection
- Printed character defect inspection
- Edge defect inspection
- Imaging example: keyboard character inspection on plastic products (LS-BAR-0485-W; result image captioned LS-BAR-0390-W 2 pcs), high uniformity white background highlights black characters
All 40 models in the High uniformity bar light (LS-BAR-S69)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-0464 | 30 mm | 37 | 25 | 6 | $89.00 | View |
| LS-BAR-0465 | 42 x 16 mm | 42 | 30 | 3 | $149.00 | View |
| LS-BAR-0466 | 62 x 30 mm | 62 | 50 | 6 | $169.00 | View |
| LS-BAR-0467 | 72 x 16 mm | 72 | 60 | 3 | $179.00 | View |
| LS-BAR-0468 | 87 x 30 mm | 87 | 75 | 6 | $199.00 | View |
| LS-BAR-0469 | 102 x 16 mm | 102 | 90 | 3 | $219.00 | View |
| LS-BAR-0470 | 112 x 30 mm | 112 | 100 | 6 | $229.00 | View |
| LS-BAR-0471 | 132 x 16 mm | 132 | 120 | 3 | $259.00 | View |
| LS-BAR-0473 | 162 x 16 mm | 162 | 150 | 3 | $259.00 | View |
| LS-BAR-0472 | 137 x 30 mm | 137 | 125 | 6 | $259.00 | View |
| LS-BAR-0474 | 162 x 30 mm | 162 | 150 | 6 | $259.00 | View |
| LS-BAR-0479 | 237 x 30 mm | 237 | 225 | 6 | $269.00 | View |
| LS-BAR-0476 | 192 x 16 mm | 192 | 180 | 3 | $279.00 | View |
| LS-BAR-0475 | 187 x 30 mm | 187 | 175 | 6 | $279.00 | View |
| LS-BAR-0480 | 252 x 16 mm | 252 | 240 | 3 | $299.00 | View |
| LS-BAR-0481 | 262 x 30 mm | 262 | 250 | 6 | $299.00 | View |
| LS-BAR-0482 | 282 x 16 mm | 282 | 270 | 3 | $309.00 | View |
| LS-BAR-0483 | 287 x 30 mm | 287 | 275 | 6 | $319.00 | View |
| LS-BAR-0477 | 212 x 30 mm | 212 | 200 | 6 | $329.00 | View |
| LS-BAR-0484 | 312 x 16 mm | 312 | 300 | 3 | $339.00 | View |
| LS-BAR-0485 | 312 x 30 mm | 312 | 300 | 6 | $339.00 | View |
| LS-BAR-0478 | 222 x 16 mm | 222 | 210 | 3 | $359.00 | View |
| LS-BAR-0487 | 342 x 16 mm | 342 | 330 | 3 | $359.00 | View |
| LS-BAR-0486 | 337 x 30 mm | 337 | 325 | 6 | $359.00 | View |
| LS-BAR-0488 | 362 x 30 mm | 362 | 350 | 6 | $379.00 | View |
| LS-BAR-0489 | 372 x 16 mm | 372 | 360 | 3 | $389.00 | View |
| LS-BAR-0490 | 387 x 30 mm | 387 | 375 | 6 | $449.00 | View |
| LS-BAR-0491 | 402 x 16 mm | 402 | 390 | 3 | $519.00 | View |
| LS-BAR-0492 | 412 x 30 mm | 412 | 400 | 6 | $539.00 | View |
| LS-BAR-0497 | 487 x 30 mm | 487 | 475 | 6 | $539.00 | View |
| LS-BAR-0493 | 432 x 16 mm | 432 | 420 | 3 | $569.00 | View |
| LS-BAR-0498 | 492 x 16 mm | 492 | 480 | 3 | $569.00 | View |
| LS-BAR-0494 | 437 x 30 mm | 437 | 425 | 6 | $569.00 | View |
| LS-BAR-0495 | 462 x 16 mm | 462 | 450 | 3 | $579.00 | View |
| LS-BAR-0500 | 522 x 16 mm | 522 | 510 | 3 | $579.00 | View |
| LS-BAR-0496 | 462 x 30 mm | 462 | 450 | 6 | $579.00 | View |
| LS-BAR-0499 | 512 x 30 mm | 512 | 500 | 6 | $579.00 | View |
| LS-BAR-0501 | 762 x 30 mm | 762 | 750 | 6 | $729.00 | View |
| LS-BAR-0502 | 1012 x 30 mm | 1012 | 1000 | 6 | $1,249.00 | View |
| LS-BAR-0503 | 1512 x 30 mm | 1512 | 1500 | 6 | $1,669.00 | View |
