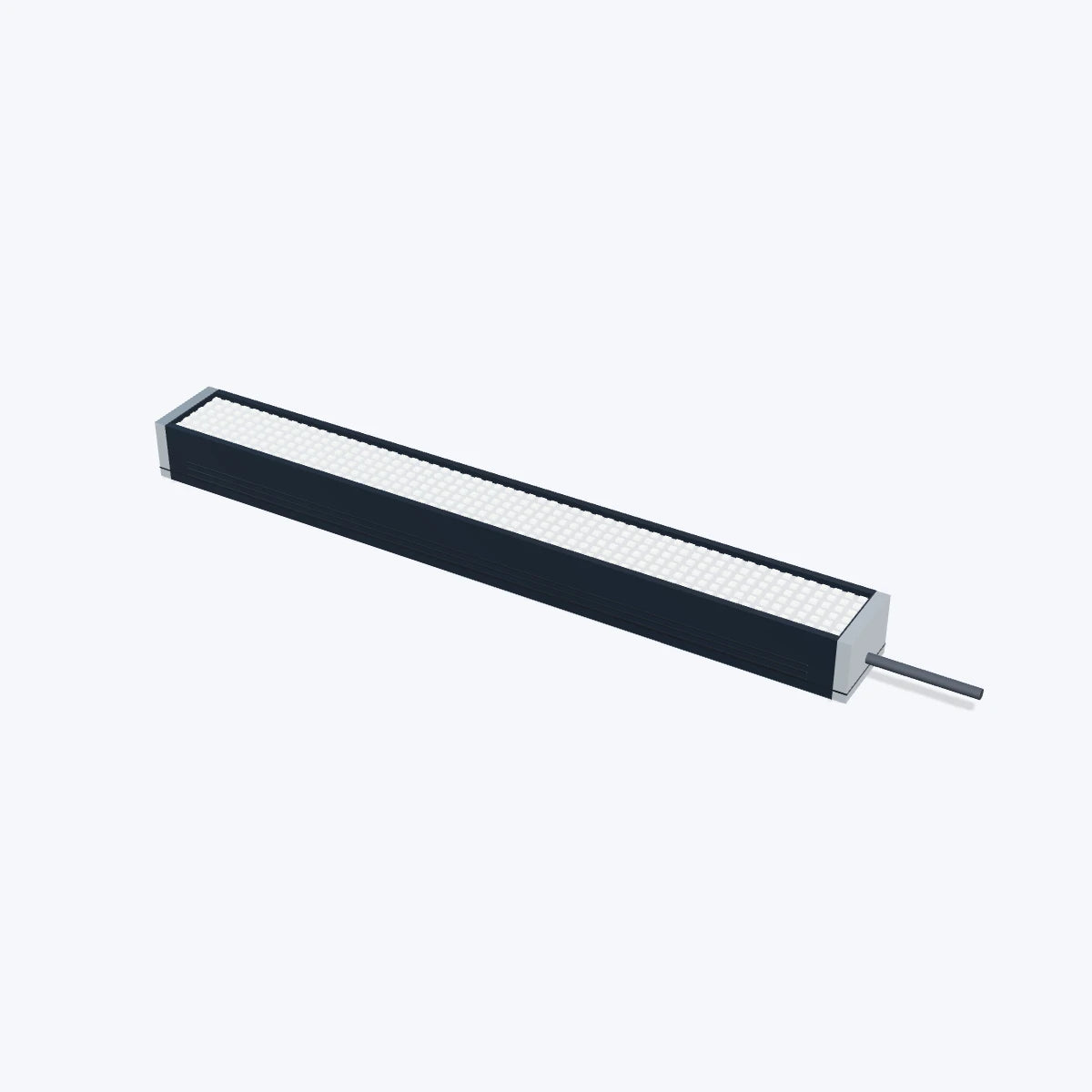

Dimension-based illustration. Housing dimensions follow this model's printed specifications; LED layout, cable position, finish and light colour are representative.
Bar lights
312 x 30 mm High uniformity bar light (LS-BAR-0485)
Model LS-BAR-0485
- ColourRed, Green, Blue, White
- Size312 mm
- Voltage24 V
- TypeStandard
$339.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High uniformity bar light with a wide-angle LED array and high luminance; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0485 |
|---|---|
| Light array quantities | 6 |
| Remark | 30mm |
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting length | B = A - 12 |
| Luminous surface width (mm) | 30 |
| Emitting length B (mm) | 300 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Analog controller, digital controller, high power controller |
| Power (R) | 8.6W |
| Power (G/B/W) | 11.5W |
Mechanical
| Weight | 417 g |
|---|---|
| Dimension A (mm) | 312 |
