High uniformity bar light (LS-BAR-S69)
  • High uniformity bar light (LS-BAR-S69)
  • LS-BAR-0464 dimensions (mm)

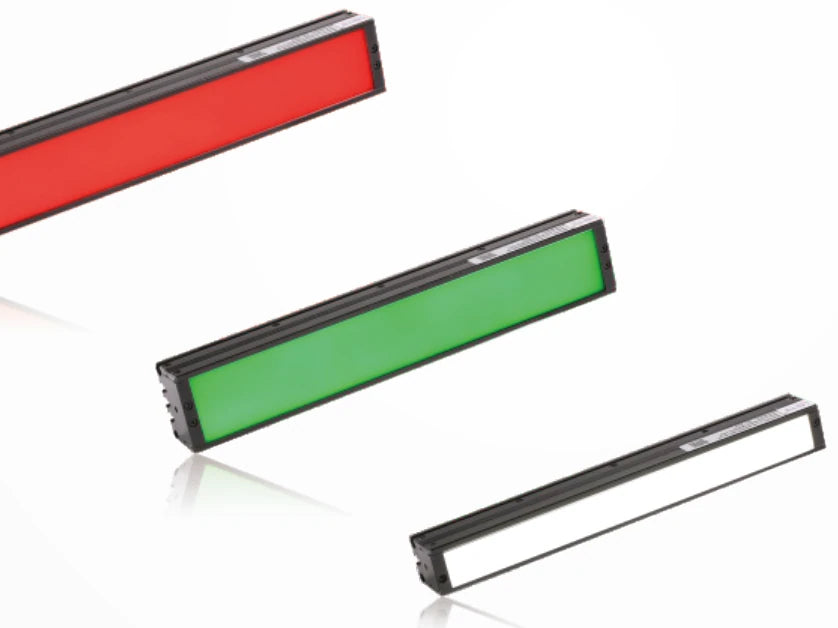

Representative photo of this series

Bar lights

362 x 30 mm High uniformity bar light (LS-BAR-0488)

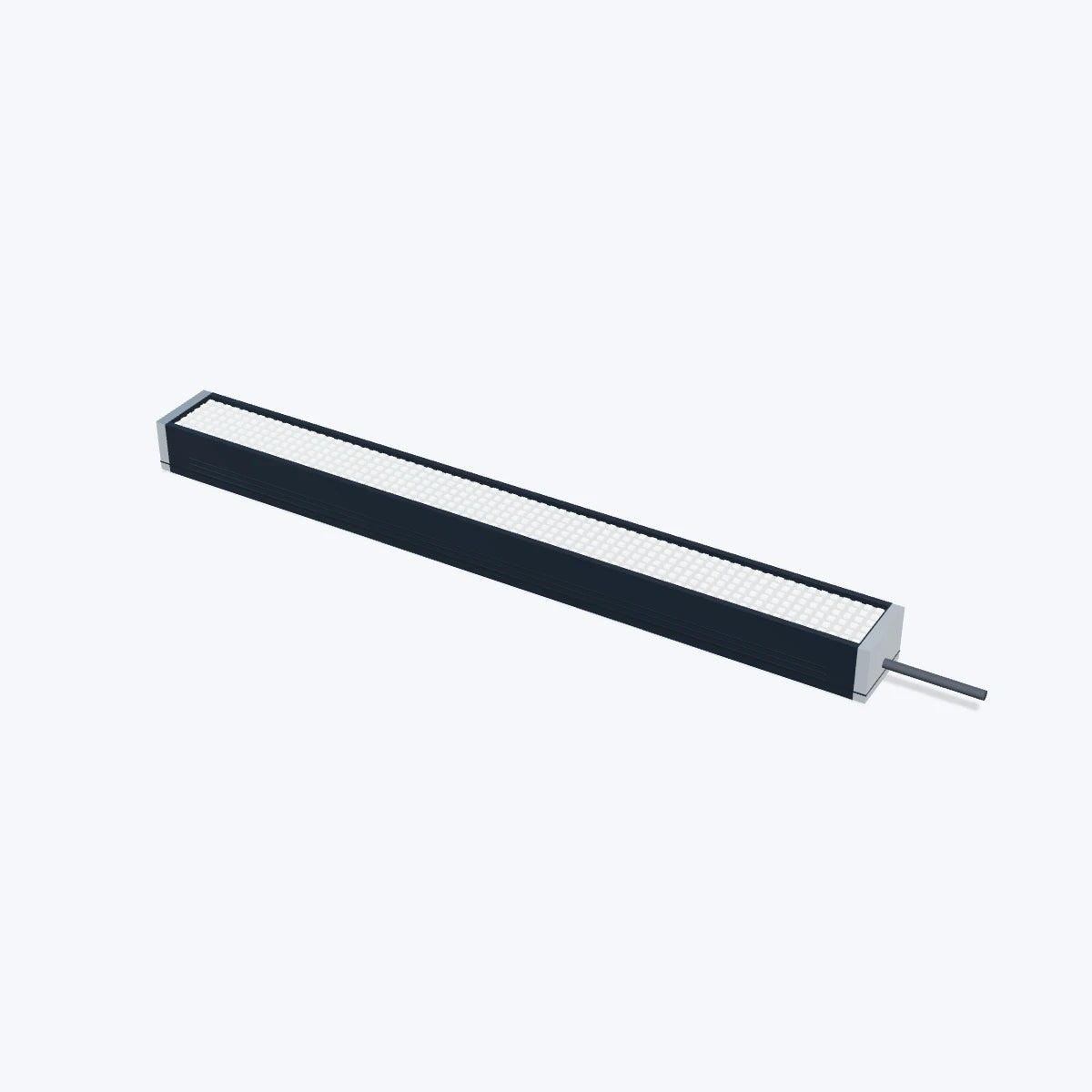

Model LS-BAR-0488

  • ColourRed, Green, Blue, White
  • Size362 mm
  • Voltage24 V
  • TypeStandard
$379.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.7 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

362 x 30 mm High uniformity bar light (LS-BAR-0488)LS-BAR-0488

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High uniformity bar light with a wide-angle LED array and high luminance; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0488
Light array quantities6
Remark30mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white6600 K
Emitting lengthB = A - 12
Luminous surface width (mm)30
Emitting length B (mm)350

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersAnalog controller, digital controller, high power controller
Power (R)10.1W
Power (G/B/W)13.4W

Mechanical

Weight474 g
Dimension A (mm)362

Other models in the High uniformity bar light (LS-BAR-S69) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0476 192 x 16 mm $279.00 15 in stock View
LS-BAR-0475 187 x 30 mm $279.00 18 in stock View
LS-BAR-0480 252 x 16 mm $299.00 16 in stock View
LS-BAR-0481 262 x 30 mm $299.00 11 in stock View
LS-BAR-0482 282 x 16 mm $309.00 17 in stock View
LS-BAR-0483 287 x 30 mm $319.00 10 in stock View
LS-BAR-0477 212 x 30 mm $329.00 13 in stock View
LS-BAR-0484 312 x 16 mm $339.00 15 in stock View
LS-BAR-0485 312 x 30 mm $339.00 11 in stock View
LS-BAR-0478 222 x 16 mm $359.00 14 in stock View
LS-BAR-0487 342 x 16 mm $359.00 15 in stock View
LS-BAR-0486 337 x 30 mm $359.00 11 in stock View
LS-BAR-0489 372 x 16 mm $389.00 13 in stock View
LS-BAR-0490 387 x 30 mm $449.00 11 in stock View
LS-BAR-0491 402 x 16 mm $519.00 9 in stock View
LS-BAR-0492 412 x 30 mm $539.00 13 in stock View
LS-BAR-0497 487 x 30 mm $539.00 15 in stock View
LS-BAR-0493 432 x 16 mm $569.00 11 in stock View
LS-BAR-0498 492 x 16 mm $569.00 13 in stock View
LS-BAR-0494 437 x 30 mm $569.00 12 in stock View
LS-BAR-0495 462 x 16 mm $579.00 14 in stock View
LS-BAR-0500 522 x 16 mm $579.00 10 in stock View
LS-BAR-0496 462 x 30 mm $579.00 16 in stock View
LS-BAR-0499 512 x 30 mm $579.00 14 in stock View
