High uniformity bar light (LS-BAR-S69)
  • High uniformity bar light (LS-BAR-S69)

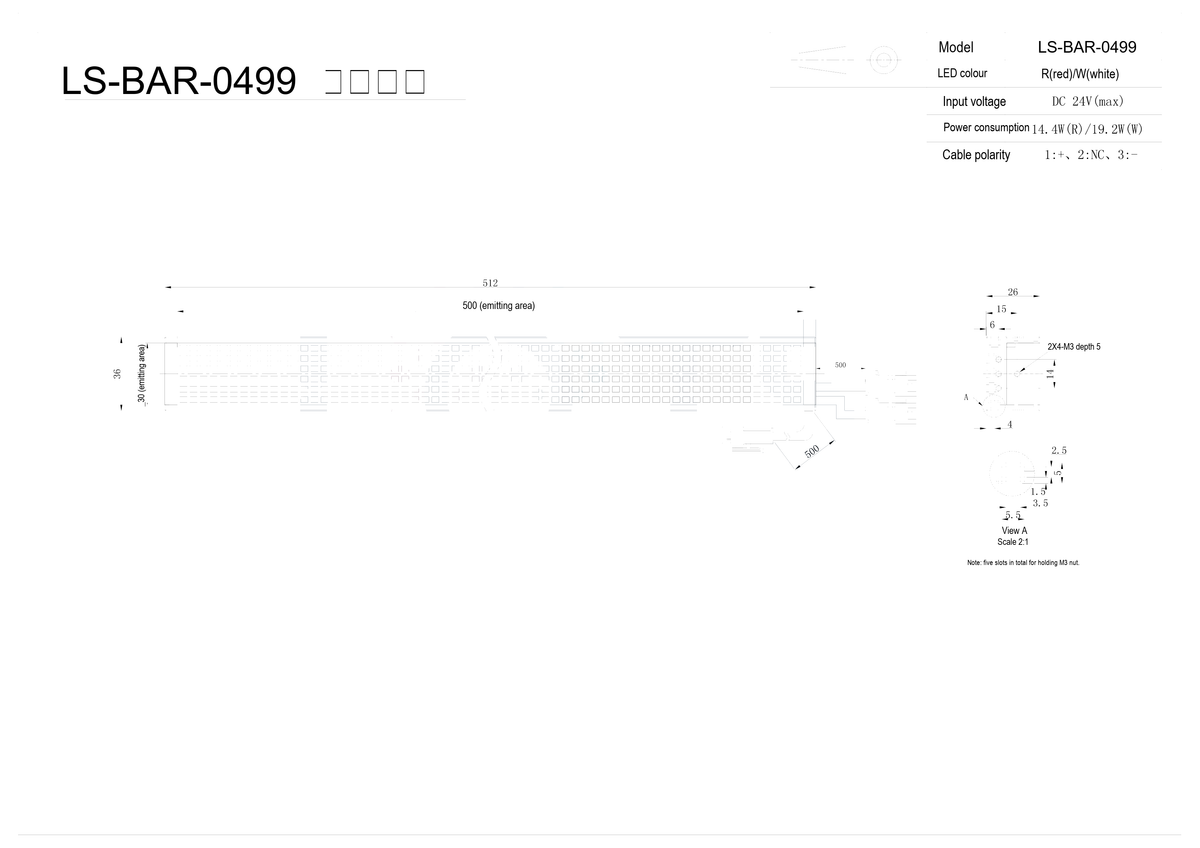

  • LS-BAR-0499 dimensions (mm)

Representative photo of this series

Bar lights

512 x 30 mm High uniformity bar light (LS-BAR-0499)

Model LS-BAR-0499

  • ColourRed, Green, Blue, White
  • Size512 mm
  • Voltage24 V
  • TypeStandard
$579.00

Ships in 2-3 weeks

0.9 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

512 x 30 mm High uniformity bar light (LS-BAR-0499)LS-BAR-0499

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High uniformity bar light with a wide-angle LED array and high luminance; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0499
Light array quantities6
Remark30mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white6600 K
Emitting lengthB = A - 12
Luminous surface width (mm)30
Emitting length B (mm)500

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersAnalog controller, digital controller, high power controller
Power (R)14.4W
Power (G/B/W)19.2W

Mechanical

Weight647 g
Dimension A (mm)512

Other models in the High uniformity bar light (LS-BAR-S69) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0481 262 x 30 mm $299.00 Ships in 2-3 weeks View
LS-BAR-0482 282 x 16 mm $309.00 Ships in 2-3 weeks View
LS-BAR-0483 287 x 30 mm $319.00 Ships in 2-3 weeks View
LS-BAR-0477 212 x 30 mm $329.00 Ships in 2-3 weeks View
LS-BAR-0484 312 x 16 mm $339.00 Ships in 2-3 weeks View
LS-BAR-0485 312 x 30 mm $339.00 Ships in 2-3 weeks View
LS-BAR-0478 222 x 16 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0487 342 x 16 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0486 337 x 30 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0488 362 x 30 mm $379.00 Ships in 2-3 weeks View
LS-BAR-0489 372 x 16 mm $389.00 Ships in 2-3 weeks View
LS-BAR-0490 387 x 30 mm $449.00 Ships in 2-3 weeks View
LS-BAR-0491 402 x 16 mm $519.00 Ships in 2-3 weeks View
LS-BAR-0492 412 x 30 mm $539.00 Ships in 2-3 weeks View
LS-BAR-0497 487 x 30 mm $539.00 Ships in 2-3 weeks View
LS-BAR-0493 432 x 16 mm $569.00 Ships in 2-3 weeks View
LS-BAR-0498 492 x 16 mm $569.00 Ships in 2-3 weeks View
LS-BAR-0494 437 x 30 mm $569.00 Ships in 2-3 weeks View
LS-BAR-0495 462 x 16 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0500 522 x 16 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0496 462 x 30 mm $579.00 Ships in 2-3 weeks View
LS-BAR-0501 762 x 30 mm $729.00 Ships in 2-3 weeks View
LS-BAR-0502 1012 x 30 mm $1,249.00 Ships in 2-3 weeks View
LS-BAR-0503 1512 x 30 mm $1,669.00 Ships in 2-3 weeks View
