Bar lights

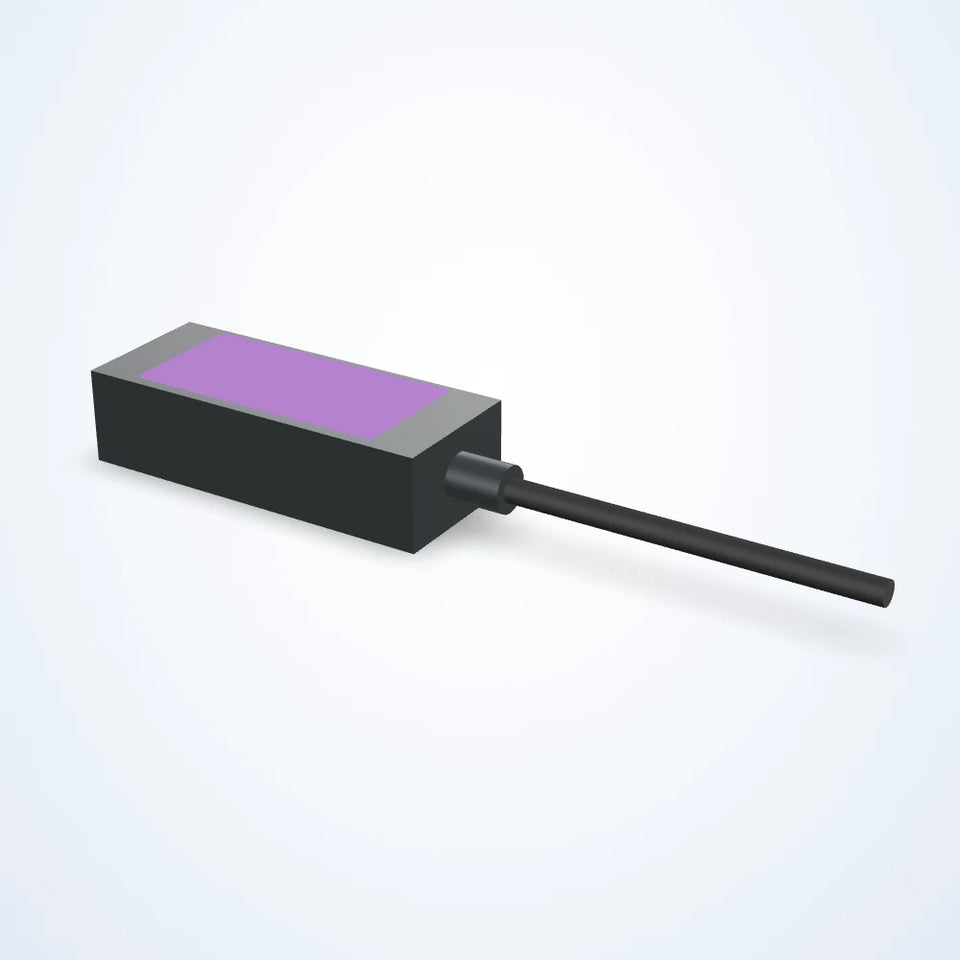

Bar light series, 20.5 mm high, Flying Leads
- 10 models
- from $509.00
- Series LS-BAR-S01
The Bar light series, 20.5 mm high, Flying Leads is a range of 10 bar lights from LumaSpec Vision, from $509.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 57.7 x 27.2 mm, 108.5 x 27.2 mm, 159.3 x 27.2 mm, 210.1 x 27.2 mm, 260.9 x 27.2 mm, 311.7 x 27.2 mm, 362.5 x 27.2 mm, 413.3 x 27.2 mm, 464.1 x 27.2 mm, 514.9 x 27.2 mm
- Type
- Standard
- Voltage
- 24 V
- Colour
- Red, Green, Blue, White, Infrared, UV
- Wavelength
- 365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 850 nm, 940 nm
All 10 models in the Bar light series, 20.5 mm high, Flying Leads
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-0001 | 57.7 x 27.2 mm | 57.7 | 80 | 125 (by configuration) | $509.00quote | View |
| LS-BAR-0002 | 108.5 x 27.2 mm | 108.5 | 130.8 | 125 (by configuration) | $549.00quote | View |
| LS-BAR-0003 | 159.3 x 27.2 mm | 159.3 | 181.6 | 125 (by configuration) | $739.00quote | View |
| LS-BAR-0004 | 210.1 x 27.2 mm | 210.1 | 232.4 | 125 (by configuration) | $879.00quote | View |
| LS-BAR-0005 | 260.9 x 27.2 mm | 260.9 | 283.2 | 125 / 150 (by configuration) | $1,019.00quote | View |
| LS-BAR-0006 | 311.7 x 27.2 mm | 311.7 | 334 | 125 / 150 (by configuration) | $1,149.00quote | View |
| LS-BAR-0007 | 362.5 x 27.2 mm | 362.5 | 384.8 | 125 / 150 (by configuration) | $1,289.00quote | View |
| LS-BAR-0008 | 413.3 x 27.2 mm | 413.3 | 435.6 | 150 (by configuration) | $1,429.00quote | View |
| LS-BAR-0009 | 464.1 x 27.2 mm | 464.1 | 486.4 | 150 (by configuration) | $1,569.00quote | View |
| LS-BAR-0010 | 514.9 x 27.2 mm | 514.9 | 537.2 | 150 (by configuration) | $1,709.00quote | View |
