Bar lights

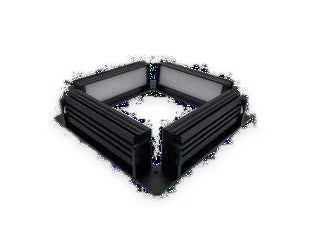

Strip combination light source, LS-BAR-S103 series
- 8 models
- from $1,019.00
- Series LS-BAR-S103
The Strip combination light source, LS-BAR-S103 series is a range of 8 bar lights from LumaSpec Vision, from $1,019.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 231 mm frame, 126 mm opening, 254 mm frame, 252 mm opening, 296 mm frame, 176 mm opening, 370 mm frame, 252 mm opening, 442 mm frame, 353 mm opening, 457 mm frame, 351 mm opening, 528 mm frame, 321 mm opening, 596 mm frame, 321 mm opening
- Colour
- Red, Green, Blue, White, Infrared, UV
- Type
- Strip / combination
- Voltage
- 24 V
Features
- Light source angle can be freely adjusted, each bar independently controlled
- Good versatility, can be freely combined, suitable for many occasions; first choice for large-format lighting
- Size can be customized according to different needs
Typical uses
- PCB substrate inspection
- Electronic component inspection
- Mark point positioning
- Defect detection, character detection and positioning recognition of large-format products
- Clear outline of the object with obvious contrast
All 8 models in the Strip combination light source, LS-BAR-S103 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-1316 | 231 mm frame, 126 mm opening | 126 | 8 | 231 | $1,019.00 | View |
| LS-BAR-1318 | 254 mm frame, 252 mm opening | 252 | 8 | 254 | $1,079.00 | View |
| LS-BAR-1317 | 296 mm frame, 176 mm opening | 176 | 8 | 296 | $1,219.00 | View |
| LS-BAR-1319 | 370 mm frame, 252 mm opening | 252 | 8 | 370 | $1,459.00 | View |
| LS-BAR-1321 | 442 mm frame, 353 mm opening | 353 | 8 | 442 | $1,659.00 | View |
| LS-BAR-1320 | 457 mm frame, 351 mm opening | 351 | 3 | 457 | $1,709.00 | View |
| LS-BAR-1323 | 528 mm frame, 321 mm opening | 321 | 3 | 528 | $1,919.00 | View |
| LS-BAR-1322 | 596 mm frame, 321 mm opening | 321 | 3 | 596 | $2,129.00 | View |
