Strip combination light source, 35 series
  • Strip combination light source, 35 series

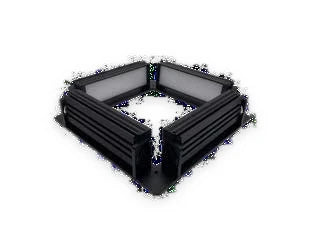

Representative photo of this series

Bar lights

Strip combination light source, LS-BAR-S103 series, 231 mm frame, 126 mm opening (LS-BAR-1316)

Model LS-BAR-1316

  • ColourRed, Green, Blue, White, Infrared, UV
  • Voltage24 V DC (12 V on request)
  • TypeStrip / combination
  • Height46 mm
$1,019.00

Ships in 2-3 weeks

1.7 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Strip combination light source, LS-BAR-S103 series, 231 mm frame, 126 mm opening (LS-BAR-1316)LS-BAR-1316

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Combination of four strip lights; the light angle can be freely adjusted and each bar is independently controlled. Good universality, can be freely combined; preferred for large-format lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1316
ConstructionFour-bar combination
Number of lamp rows8
Inner opening (mm)126

Interfaces and I/O

Cable length (mm)500

Light

Bar emitting width (mm)35

Electrical

Voltage24 V DC (12 V on request)
Power red (W)6.91
Power white/blue/green (W)8.64

Mechanical

Height (mm)46
Mounting4 x M4 through
Overall frame size (mm)231
Overall height (mm)46
Shipping weight1.70 kg

Other models in the Strip combination light source, LS-BAR-S103 series series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-1318 254 mm frame, 252 mm opening $1,079.00 Ships in 2-3 weeks View
LS-BAR-1317 296 mm frame, 176 mm opening $1,219.00 Ships in 2-3 weeks View
LS-BAR-1319 370 mm frame, 252 mm opening $1,459.00 Ships in 2-3 weeks View
LS-BAR-1321 442 mm frame, 353 mm opening $1,659.00 Ships in 2-3 weeks View
LS-BAR-1320 457 mm frame, 351 mm opening $1,709.00 Ships in 2-3 weeks View
LS-BAR-1323 528 mm frame, 321 mm opening $1,919.00 Ships in 2-3 weeks View
LS-BAR-1322 596 mm frame, 321 mm opening $2,129.00 Ships in 2-3 weeks View
