Bar lights

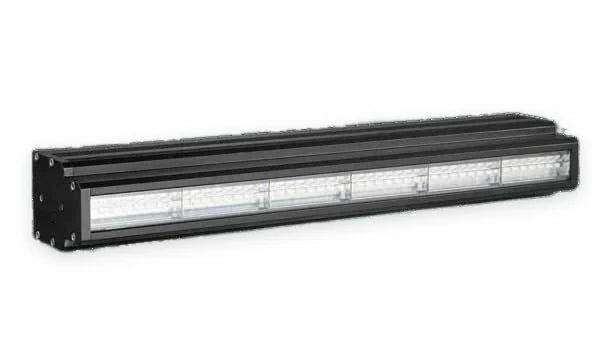

LED bar light (LS-BAR-S106)
- 11 models
- from $139.00
- Series LS-BAR-S106
The LED bar light (LS-BAR-S106) is a range of 11 bar lights from LumaSpec Vision, from $139.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 72.5 x 14 mm, 220 x 14 mm, 295 x 14 mm, 370 x 14 mm
- Colour
- Red, Green, Blue, White
- Type
- Standard
Features
- Quick and efficient customization
- Uniform, low heat illumination
- Widely used in microscope
- Long working distance
- Compact design
- High density and high brightness LED array
- Bar lighting can be customized other size and color
Typical uses
- Measurement inspection of mechanical components
- Inspection of transparent film
- Microscope illumination
All 11 models in the LED bar light (LS-BAR-S106)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-1335 | 75mm x 14mm (working area) | 0.21 | 80.5 x 21 x 29 | $139.00 | View | |
| LS-BAR-1336 | 72.5 x 14 mm | 0.21 | 80.5 x 21 x 31.5 | dia. 4.0 x 500 ±20 (drawing) | $179.00 | View |
| LS-BAR-1337 | 72.5 x 14 mm | 0.21 | 80.5 x 21 x 29 | dia. 3.5 x 620 ±30 (drawing) | $179.00 | View |
| LS-BAR-1338 | 145mm x 14mm (working area) | 0.42 | 155 x 21 x 29 | $199.00 | View | |
| LS-BAR-1339 | 220mm x 14mm (working area) | 0.53 | 230 x 21 x 29 | $259.00 | View | |
| LS-BAR-1342 | 295 x 14 mm | 0.72 | 305 x 21 x 31.5 | dia. 4.0 x 500 ±20 (drawing) | $319.00 | View |
| LS-BAR-1343 | 295 x 14 mm | 0.72 | 305 x 21 x 29 | dia. 3.5 x 620 ±30 (drawing) | $319.00 | View |
| LS-BAR-1340 | 220 x 14 mm | 0.53 | 230 x 21 x 31.5 | dia. 4.0 x 500 ±20 (drawing) | $359.00 | View |
| LS-BAR-1341 | 220 x 14 mm | 0.53 | 230 x 21 x 29 | dia. 3.5 x 620 ±30 (drawing) | $359.00 | View |
| LS-BAR-1344 | 370 x 14 mm | 0.95 | 380 x 21 x 31.5 | dia. 4.0 x 500 ±20 (drawing) | $389.00 | View |
| LS-BAR-1345 | 370 x 14 mm | 0.95 | 380 x 21 x 29 | dia. 3.5 x 620 ±30 (drawing) | $389.00 | View |
