Bar lights

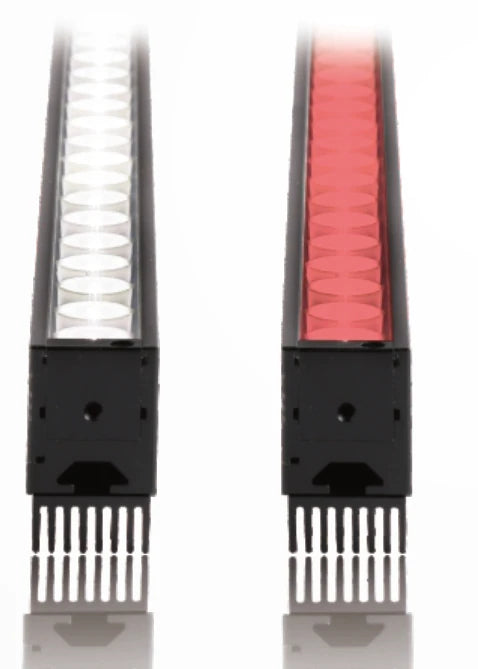

High power bar light (LS-BAR-S73)
- 9 models
- from $209.00
- Series LS-BAR-S73
The High power bar light (LS-BAR-S73) is a range of 9 bar lights from LumaSpec Vision, from $209.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 90 x 16 mm, 120 x 16 mm, 150 x 16 mm, 210 x 16 mm, 270 x 16 mm, 300 x 16 mm, 360 x 16 mm, 420 x 16 mm, 510 x 16 mm
- Colour
- Red, Green, Blue, White
- Type
- Linear / high intensity
- Voltage
- 24 V
Features
- High power LEDs, lighting at long working distance, high luminance
- Multiple installation methods, easy to install
- One-piece aluminium alloy design, high heat-dissipation performance
- Option: diffuser plate, improves lamp shadow and glare when imaging reflective workpieces
- Customizable: Combined light, Length, Multi-area control, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
Typical uses
- Large LCD panel defect inspection
- Metal surface defect inspection
- Printed character defect inspection
- Connector pin flatness inspection
- Imaging example: mobile phone bottom shrapnel direction inspection (LS-BAR-0639-B)
All 9 models in the High power bar light (LS-BAR-S73)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-0637 | 90 x 16 mm | 102 | 90 | 4.8W | $209.00 | View |
| LS-BAR-0638 | 120 x 16 mm | 132 | 120 | 4.8W | $229.00 | View |
| LS-BAR-0639 | 150 x 16 mm | 162 | 150 | 4.8W | $259.00 | View |
| LS-BAR-0641 | 270 x 16 mm | 282 | 270 | 14.4W | $299.00 | View |
| LS-BAR-0640 | 210 x 16 mm | 222 | 210 | 9.6W | $329.00 | View |
| LS-BAR-0642 | 300 x 16 mm | 312 | 300 | 14.4W | $329.00 | View |
| LS-BAR-0643 | 360 x 16 mm | 372 | 360 | 19.2W | $379.00 | View |
| LS-BAR-0644 | 420 x 16 mm | 432 | 420 | 24.0W | $569.00 | View |
| LS-BAR-0645 | 510 x 16 mm | 522 | 510 | 24.0W | $579.00 | View |
