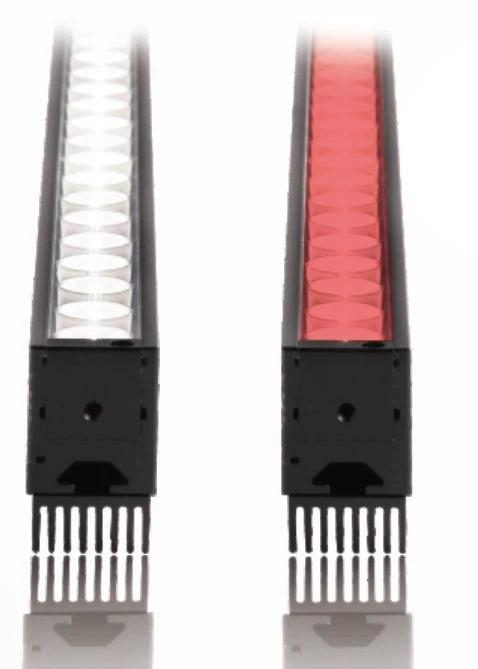

Representative photo of this series
Bar lights
510 x 16 mm High power bar light (LS-BAR-0645)
Model LS-BAR-0645
- ColourRed, Green, Blue, White
- Size522 mm
- Voltage24 V
- TypeLinear / high intensity
$579.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High power bar light using high-power LEDs for long working distance and high luminance; multiple installation methods, one-piece aluminium alloy body with high heat-dissipation performance.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0645 |
|---|---|
| Light array quantities | 3 |
| Option | Diffuser plate (improves lamp shadow and glare when imaging reflective workpieces) |
| Remark | 16mm |
Optics
| Recommended working distance | 10mm~550mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Luminous surface width | 16 mm |
|---|---|
| Colour temperature of white | 6600 K |

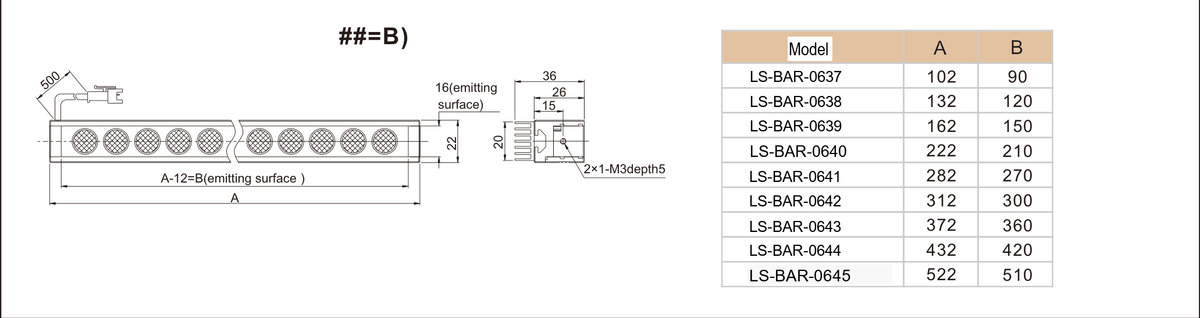

| Emitting length | A - 12 = B |
| Emitting length B (mm) | 510 |
| Emitting width (mm) | 16 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Analog controller, digital controller, high power controller |
| Power (G/B/W) | 24.0W |
| Power (R) | 14.4W |
Mechanical
| Min. overall size | 102 mm x 22 mm |
|---|---|
| Max. overall size | 522 mm x 22 mm |
| Weight (G/B/W) | 530 g |
| Dimension A (mm) | 522 |
| Weight (R) | 520 g |
Other models in the High power bar light (LS-BAR-S73) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0637 | 90 x 16 mm | $209.00 | Ships in 2-3 weeks | View |
| LS-BAR-0638 | 120 x 16 mm | $229.00 | Ships in 2-3 weeks | View |
| LS-BAR-0639 | 150 x 16 mm | $259.00 | Ships in 2-3 weeks | View |
| LS-BAR-0641 | 270 x 16 mm | $299.00 | Ships in 2-3 weeks | View |
| LS-BAR-0640 | 210 x 16 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BAR-0642 | 300 x 16 mm | $329.00 | Ships in 2-3 weeks | View |
| LS-BAR-0643 | 360 x 16 mm | $379.00 | Ships in 2-3 weeks | View |
| LS-BAR-0644 | 420 x 16 mm | $569.00 | Ships in 2-3 weeks | View |
