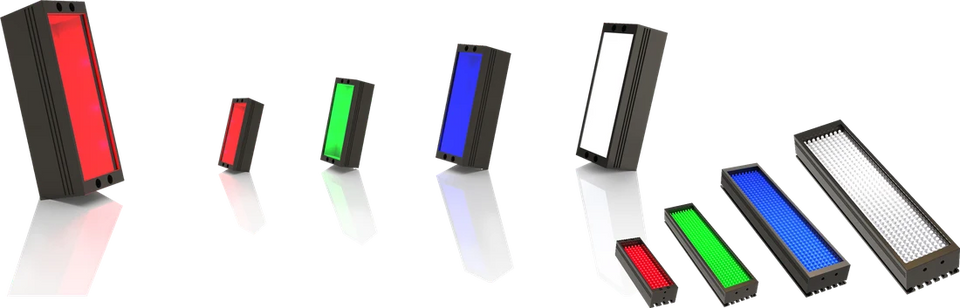

Bar light (LS-BAR-S94)
- 57 models
- from $149.00
- Series LS-BAR-S94
The Bar light (LS-BAR-S94) is a range of 57 bar lights from LumaSpec Vision, from $149.00. It comes in 56 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 40 x 16 mm, 60 x 16 mm, 74 x 30 mm, 74 x 45 mm, 80 x 16 mm, 86 x 30 mm, 90 x 16 mm, 98 x 30 mm, 100 x 30 mm, 120 x 16 mm, 146 x 30 mm, 150 x 16 mm, 150 x 30 mm, 160 x 16 mm, 170 x 30 mm, 180 x 16 mm and 40 more
- Colour
- Red, Green, Blue, White
- Type
- Standard
- Voltage
- 24 V
Features
- Can customize illumination width, length, and size.
- Wavelength and color temperature options available, with combinations of different colors possible.
- Compact design for easy installation.
- Adjustable illumination angle, diffuser plate optional.
Typical uses
- Surface defect detection
- Image scanning
- LCD panel inspection
- Pin flatness test
- Slender object damage/appearance inspection
- Textured metal damage inspection
All 57 models in the Bar light (LS-BAR-S94)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-1030 | 40 x 16 mm | 40x16 | 3 | 52x20x24 | $149.00 | View |
| LS-BAR-1008 | 60 x 16 mm | 60x16 | 3 | 72x22x46 | $169.00 | View |
| LS-BAR-1033 | 80 x 16 mm | 80x16 | 3 | 92x20x24 | $189.00 | View |
| LS-BAR-1031 | 74 x 30 mm | 74x30 | 6 | 86x34x24 | $189.00 | View |
| LS-BAR-1032 | 74 x 45 mm | 74x45 | 9 | 90x52x28 | $189.00 | View |
| LS-BAR-1034 | 86 x 30 mm | 86x30 | 6 | 98x34x24 | $199.00 | View |
| LS-BAR-1009 | 90 x 16 mm | 90x16 | 3 | 102x22x46 | $209.00 | View |
| LS-BAR-1035 | 98 x 30 mm | 98x30 | 6 | 110x34x24 | $219.00 | View |
| LS-BAR-1010 | 100 x 30 mm | 100x30 | 6 | 112x36x46 | $219.00 | View |
| LS-BAR-1036 | 120 x 16 mm | 120x16 | 3 | 131x20x24 | $229.00 | View |
| LS-BAR-1011 | 120 x 16 mm | 120x16 | 3 | 132x22x46 | $229.00 | View |
| LS-BAR-1038 | 160 x 16 mm | 160x16 | 3 | 172x20x24 | $259.00 | View |
| LS-BAR-1012 | 150 x 16 mm | 150x16 | 3 | 162x22x46 | $259.00 | View |
| LS-BAR-1037 | 146 x 30 mm | 146x30 | 6 | 158x34x24 | $259.00 | View |
| LS-BAR-1013 | 150 x 30 mm | 150x30 | 6 | 162x36x46 | $259.00 | View |
| LS-BAR-1016 | 240 x 16 mm | 240x16 | 3 | 252x22x46 | $269.00 | View |
| LS-BAR-1039 | 170 x 30 mm | 170x30 | 6 | 182x34x24 | $269.00 | View |
| LS-BAR-1014 | 180 x 16 mm | 180x16 | 3 | 192x22x46 | $279.00 | View |
| LS-BAR-1040 | 180 x 30 mm | 180x30 | 6 | 192x34x24 | $279.00 | View |
| LS-BAR-1041 | 194 x 30 mm | 194x30 | 6 | 206x34x24 | $279.00 | View |
| LS-BAR-1042 | 197 x 16 mm | 197x16 | 3 | 209x20x24 | $289.00 | View |
| LS-BAR-1017 | 250 x 30 mm | 250x30 | 6 | 262x36x46 | $289.00 | View |
| LS-BAR-1045 | 266 x 30 mm | 266x30 | 6 | 278x34x24 | $299.00 | View |
| LS-BAR-1046 | 275 x 16 mm | 275x16 | 3 | 287x20x24 | $309.00 | View |
| LS-BAR-1018 | 275 x 30 mm | 275x30 | 6 | 287x36x46 | $309.00 | View |
| LS-BAR-1047 | 290 x 30 mm | 290x30 | 6 | 302x34x24 | $319.00 | View |
| LS-BAR-1015 | 200 x 30 mm | 200x30 | 6 | 212x36x46 | $319.00 | View |
| LS-BAR-1043 | 200 x 45 mm | 200x45 | 9 | 216x52x28 | $319.00 | View |
| LS-BAR-1019 | 300 x 16 mm | 300x16 | 3 | 312x22x46 | $329.00 | View |
| LS-BAR-1020 | 300 x 30 mm | 300x30 | 6 | 312x36x46 | $329.00 | View |
| LS-BAR-1048 | 300 x 45 mm | 300x45 | 9 | 316x52x28 | $329.00 | View |
| LS-BAR-1044 | 218 x 30 mm | 218x30 | 6 | 230x34x24 | $369.00 | View |
| LS-BAR-1049 | 386 x 30 mm | 386x30 | 6 | 398x34x24 | $449.00 | View |
| LS-BAR-1050 | 400 x 45 mm | 400x45 | 9 | 416x52x28 | $459.00 | View |
| LS-BAR-1052 | 500 x 45 mm | 500x45 | 9 | 516x52x28 | $569.00 | View |
| LS-BAR-1021 | 450 x 16 mm | 450x16 | 3 | 462x22x46 | $579.00 | View |
| LS-BAR-1051 | 434 x 30 mm | 434x30 | 6 | 446x34x24 | $579.00 | View |
| LS-BAR-1054 | 578 x 30 mm | 578x30 | 6 | 590x34x24 | $579.00 | View |
| LS-BAR-1022 | 450 x 30 mm | 450x30 | 6 | 462x36x46 | $579.00 | View |
| LS-BAR-1053 | 550 x 45 mm | 550x45 | 9 | 562x52x28 | $579.00 | View |
| LS-BAR-1023 | 600 x 16 mm | 600x16 | 3 | 612x22x46 | $629.00 | View |
| LS-BAR-1024 | 600 x 30 mm | 600x30 | 6 | 612x36x46 | $629.00 | View |
| LS-BAR-1055 | 600 x 45 mm | 600x45 | 9 | 616x52x28 | $629.00 | View |
| LS-BAR-1056 | 700 x 45 mm | 700x45 | 9 | 716x52x28 | $669.00 | View |
| LS-BAR-1025 | 750 x 16 mm | 750x16 | 3 | 762x22x46 | $729.00 | View |
| LS-BAR-1026 | 750 x 30 mm | 750x30 | 6 | 762x36x46 | $729.00 | View |
| LS-BAR-1057 | 800 x 45 mm | 800x45 | 9 | 816x52x28 | $979.00 | View |
| LS-BAR-1027 | 900 x 16 mm | 900x16 | 3 | 912x22x46 | $1,149.00 | View |
| LS-BAR-1028 | 900 x 30 mm | 900x30 | 6 | 912x36x46 | $1,159.00 | View |
| LS-BAR-1058 | 900 x 45 mm | 900x45 | 9 | 916x52x28 | $1,159.00 | View |
| LS-BAR-1059 | 950 x 45 mm | 950x45 | 9 | 966x52x28 | $1,199.00 | View |
| LS-BAR-1060 | 1000 x 45 mm | 1000x45 | 9 | 1016x52x28 | $1,239.00 | View |
| LS-BAR-1061 | 1100 x 45 mm | 1100x45 | 9 | 1116x52x28 | $1,339.00 | View |
| LS-BAR-1029 | 1200 x 30 mm | 1200x30 | 6 | 1212x36x46 | $1,439.00 | View |
| LS-BAR-1062 | 1200 x 45 mm | 1200x45 | 9 | 1216x52x28 | $1,439.00 | View |
| LS-BAR-1063 | 1300 x 45 mm | 1300x45 | 9 | 1316x52x28 | $1,519.00 | View |
| LS-BAR-1064 | 1400 x 45 mm | 1400x45 | 9 | 1416x52x28 | $1,569.00 | View |
