Bar light (LS-BAR-S94)
  • Bar light (LS-BAR-S94)

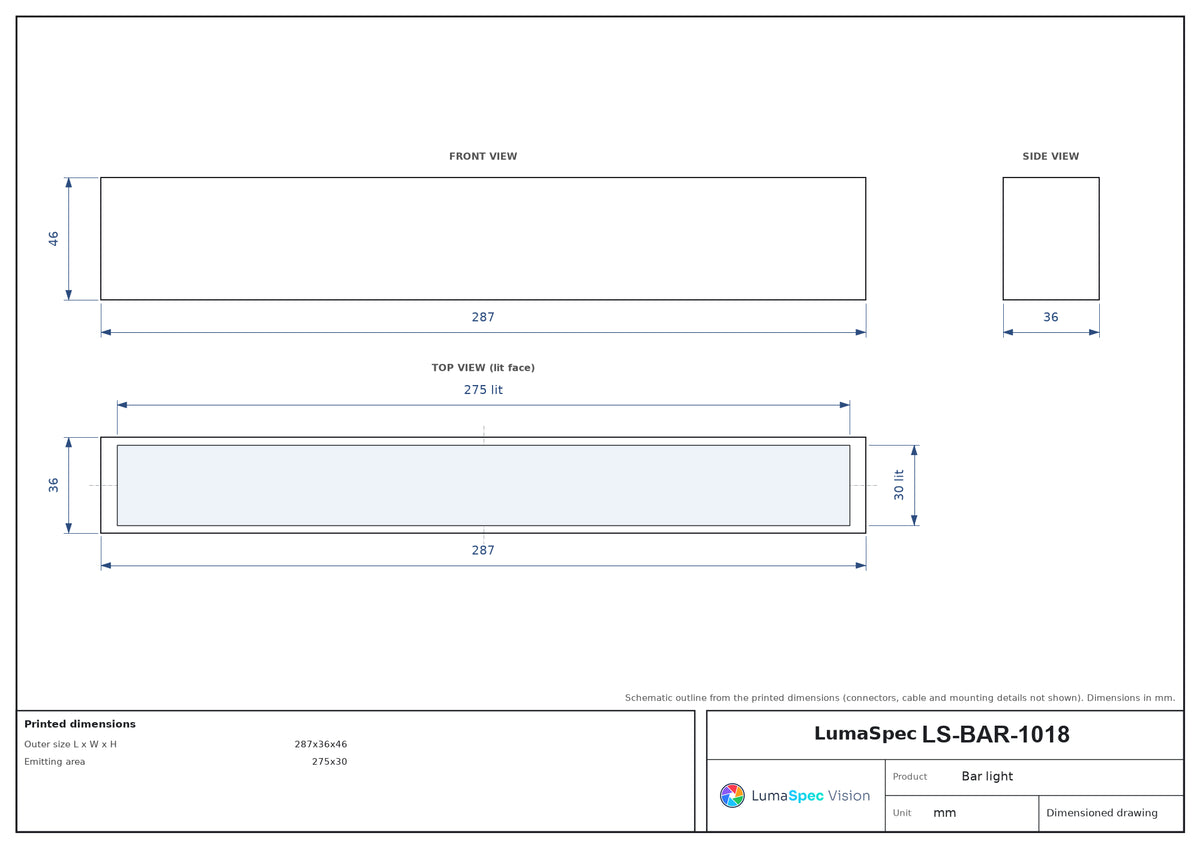

  • LS-BAR-1018 dimensions (mm)

Bar lights

275 x 30 mm LED Bar Light (LS-BAR-1018)

Model LS-BAR-1018

  • ColourRed, Green, Blue, White
  • Emitting area275x30 mm
  • Size287x36x46 mm
  • Voltage24 V
  • Power17.2 W
$309.00

Ships in 2-3 weeks

0.7 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

275 x 30 mm LED Bar Light (LS-BAR-1018)LS-BAR-1018

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

275 x 30 mm LED Bar Light. LED bar light for surface defect detection, image scanning, LCD panel inspection, pin flatness testing and slender-object damage/appearance inspection. Illumination width, length and size can be customized; wavelength/colour temperature options and colour combinations are available, with an adjustable illumination angle and optional diffuser plate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1018

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows6
Emitting area (mm)275x30
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R (W)10.3
Power W/B/G (W)17.2

Mechanical

Outer size L x W x H (mm)287x36x46
Shipping weight (estimated)0.70 kg

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing: overall length A+12, 36 high x 46 deep (finned), 30 emitting width, 4-M3 depth 6 holes (11.5 / 25.5, 14 spacing), M3 nut (T-slot) mounting, 500 mm cable
