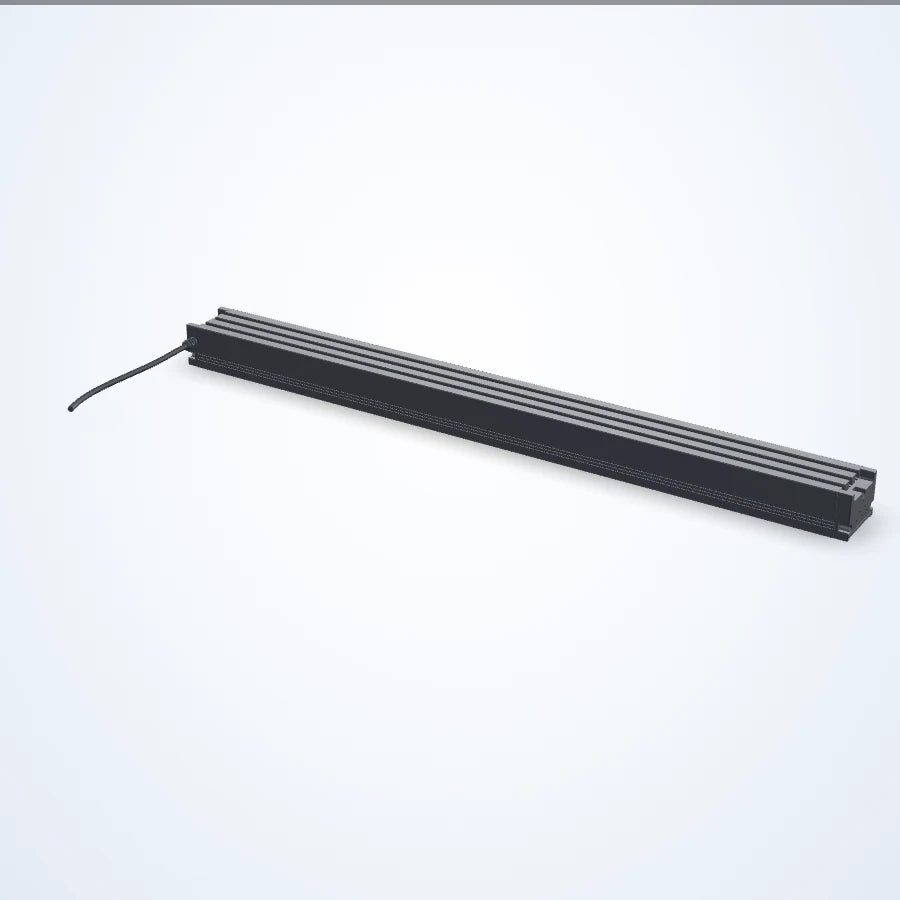

  • LS-BAR-1051 3D render

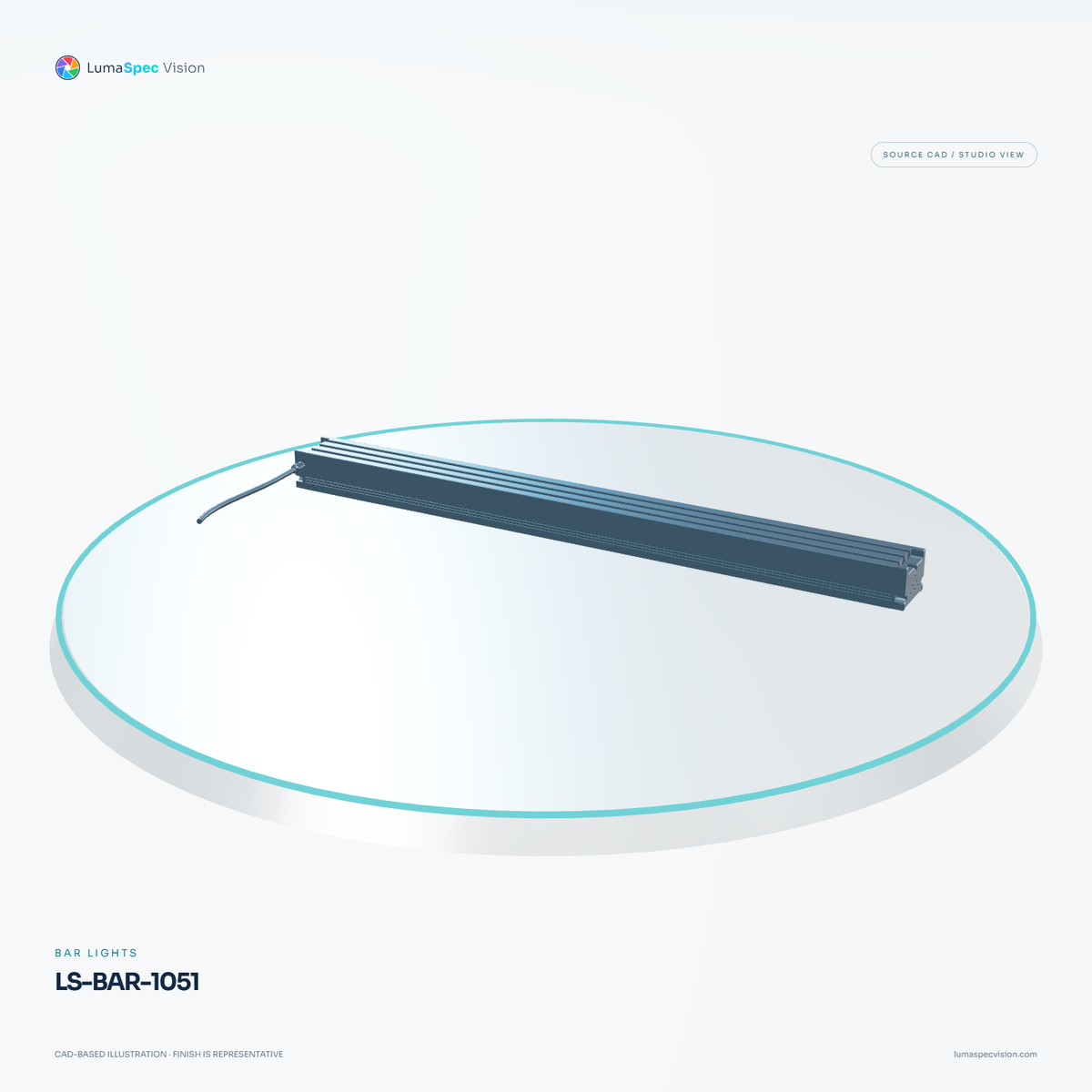

  • LS-BAR-1051 — Bar lights, 3D view 1. CAD-based illustration; finish is representative.

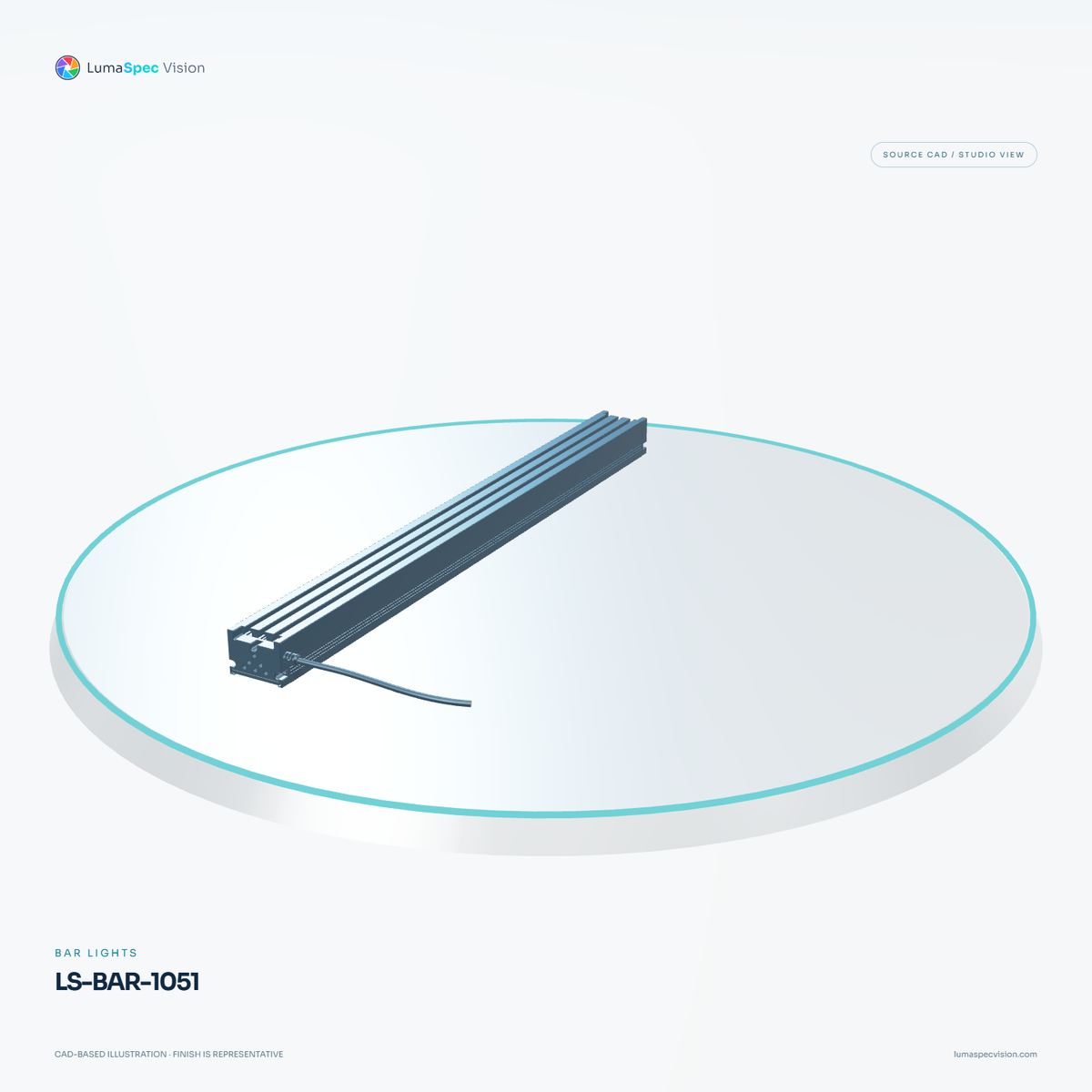

  • LS-BAR-1051 — Bar lights, 3D view 2. CAD-based illustration; finish is representative.

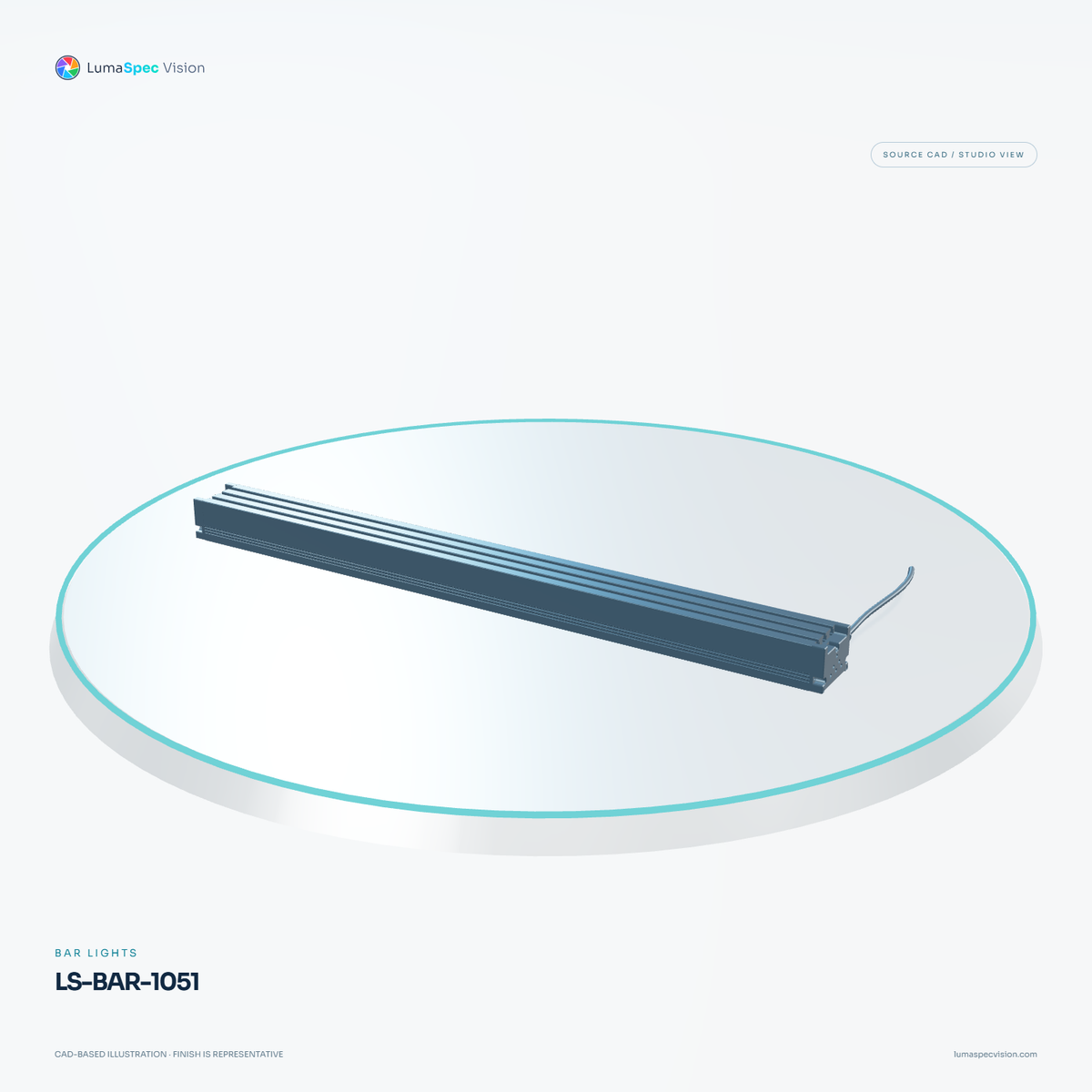

  • LS-BAR-1051 — Bar lights, 3D view 3. CAD-based illustration; finish is representative.

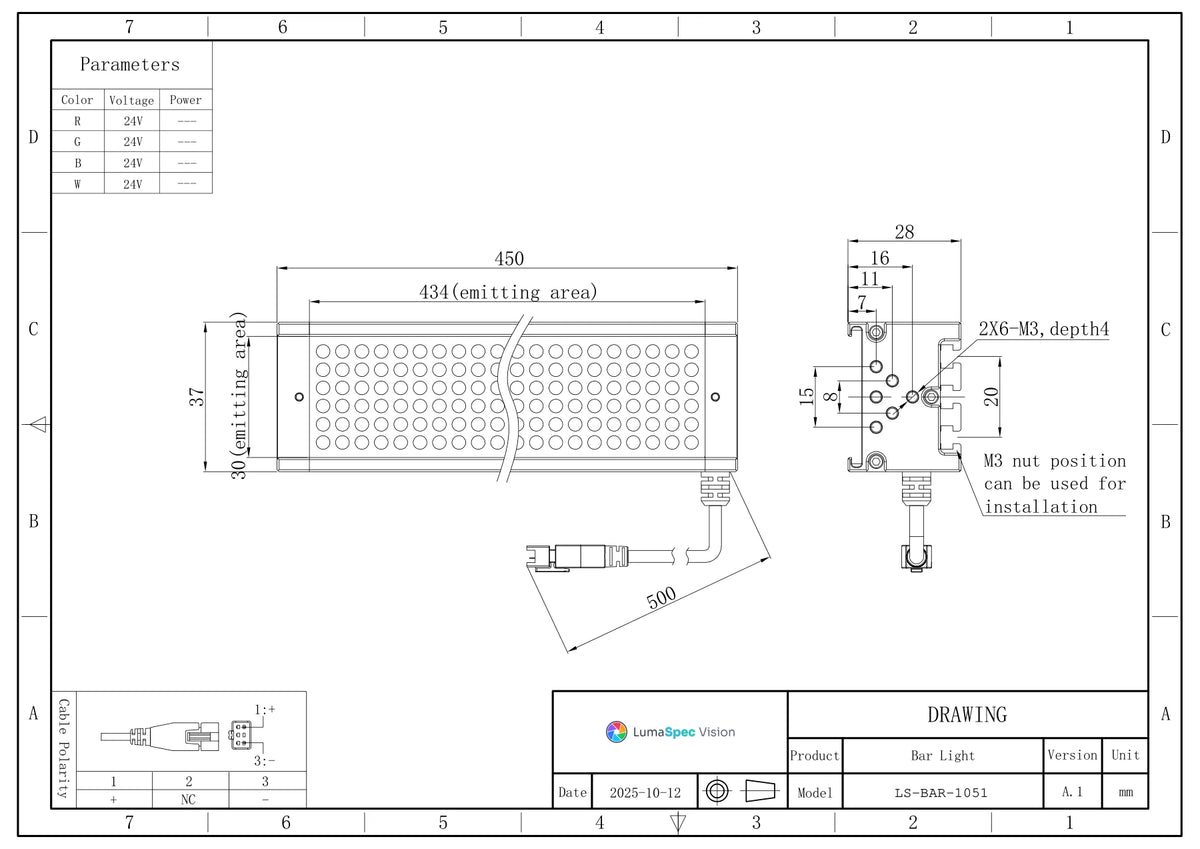

  • LS-BAR-1051 dimensions (mm)

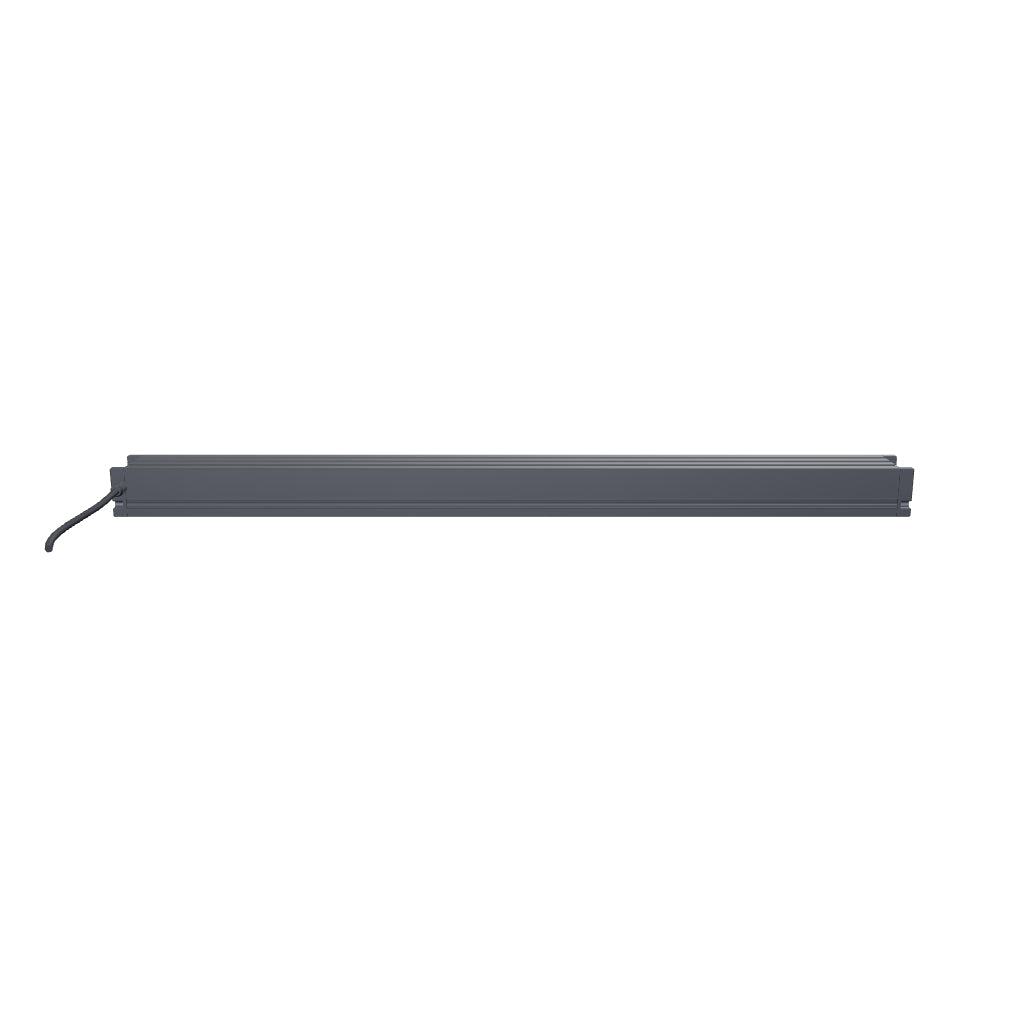

  • LS-BAR-1051 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Bar lights

434 x 30 mm LED Bar Light (LS-BAR-1051)

Model LS-BAR-1051-R

  • ColourRed, Green, Blue, White
  • Emitting area434x30 mm
  • Size446x34x24 mm
  • Voltage24 V
  • Power28 W
$579.00

Ships in 2-3 weeks

0.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

434 x 30 mm LED Bar Light (LS-BAR-1051)LS-BAR-1051-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

434 x 30 mm LED Bar Light. LED bar light for surface defect detection, image scanning, LCD panel inspection, pin flatness testing and slender-object damage/appearance inspection. Illumination width, length and size can be customized; wavelength/colour temperature options and colour combinations are available, with an adjustable illumination angle and optional diffuser plate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1051

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows6
Emitting area (mm)434x30
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R (W)20
Power W/B/G (W)28

Mechanical

Outer size L x W x H (mm)446x34x24
Shipping weight (estimated)0.65 kg

Mounting and drawing data

drawing: overall length A+12, 34 high x 24 deep, 30 emitting width, 4-M3 depth 4 holes at 9.0 spacing, 18 slot pitch, M3 nut (T-slot) mounting, 500 mm cable

LS-BAR-1051

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BAR-1051 — Bar lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm)
446x34x24
Emitting area (mm)
434x30
Voltage (V)
24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
