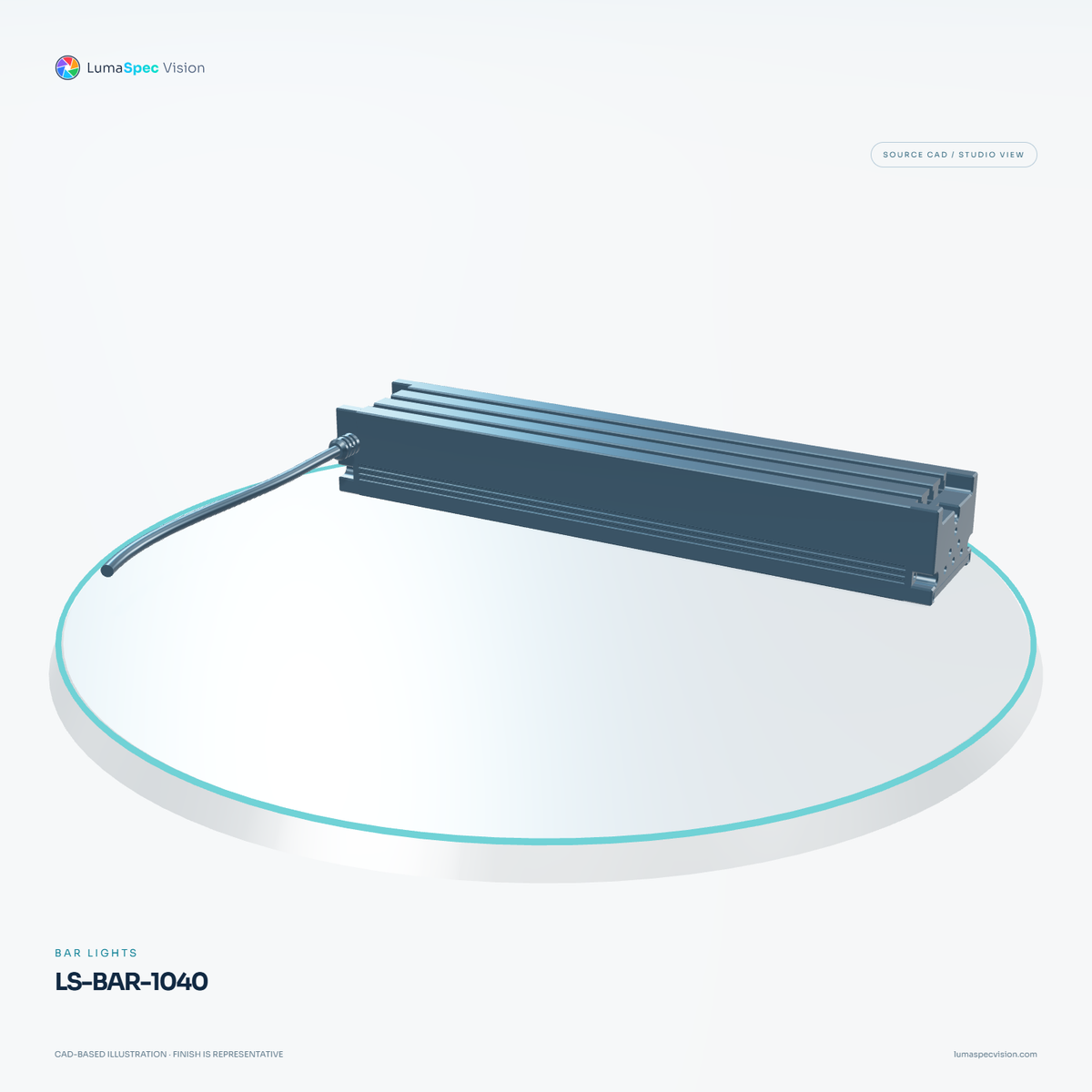

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Bar lights

180 x 30 mm LED Bar Light (LS-BAR-1040)

Model LS-BAR-1040

ColourRed, Green, Blue, White
Emitting area180x30 mm
Size192x34x24 mm
Voltage24 V
Power9 W

$279.00

Ships in 2-3 weeks

0.35 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

180 x 30 mm LED Bar Light. LED bar light for surface defect detection, image scanning, LCD panel inspection, pin flatness testing and slender-object damage/appearance inspection. Illumination width, length and size can be customized; wavelength/colour temperature options and colour combinations are available, with an adjustable illumination angle and optional diffuser plate.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-1040

Interfaces and I/O

Cable length	500 mm (per dimension drawings)

Light

LED rows	6
Emitting area (mm)	180x30
Colours	Red, Green, Blue, White
LED colour options (legend)	R / G / B / W / IR / UV
Colours shown per model	R, G, B, W

Electrical

Voltage (V)	24
Power R (W)	6
Power W/B/G (W)	9

Mechanical

Outer size L x W x H (mm)	192x34x24
Shipping weight (estimated)	0.35 kg

Mounting and drawing data

drawing: overall length A+12, 34 high x 24 deep, 30 emitting width, 4-M3 depth 4 holes at 9.0 spacing, 18 slot pitch, M3 nut (T-slot) mounting, 500 mm cable

Downloads

Features

Can customize illumination width, length, and size.
Wavelength and color temperature options available, with combinations of different colors possible.
Compact design for easy installation.
Adjustable illumination angle, diffuser plate optional.

Applications

Surface defect detection
Image scanning
LCD panel inspection
Pin flatness test
Slender object damage/appearance inspection
Textured metal damage inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

LS-BAR-1040

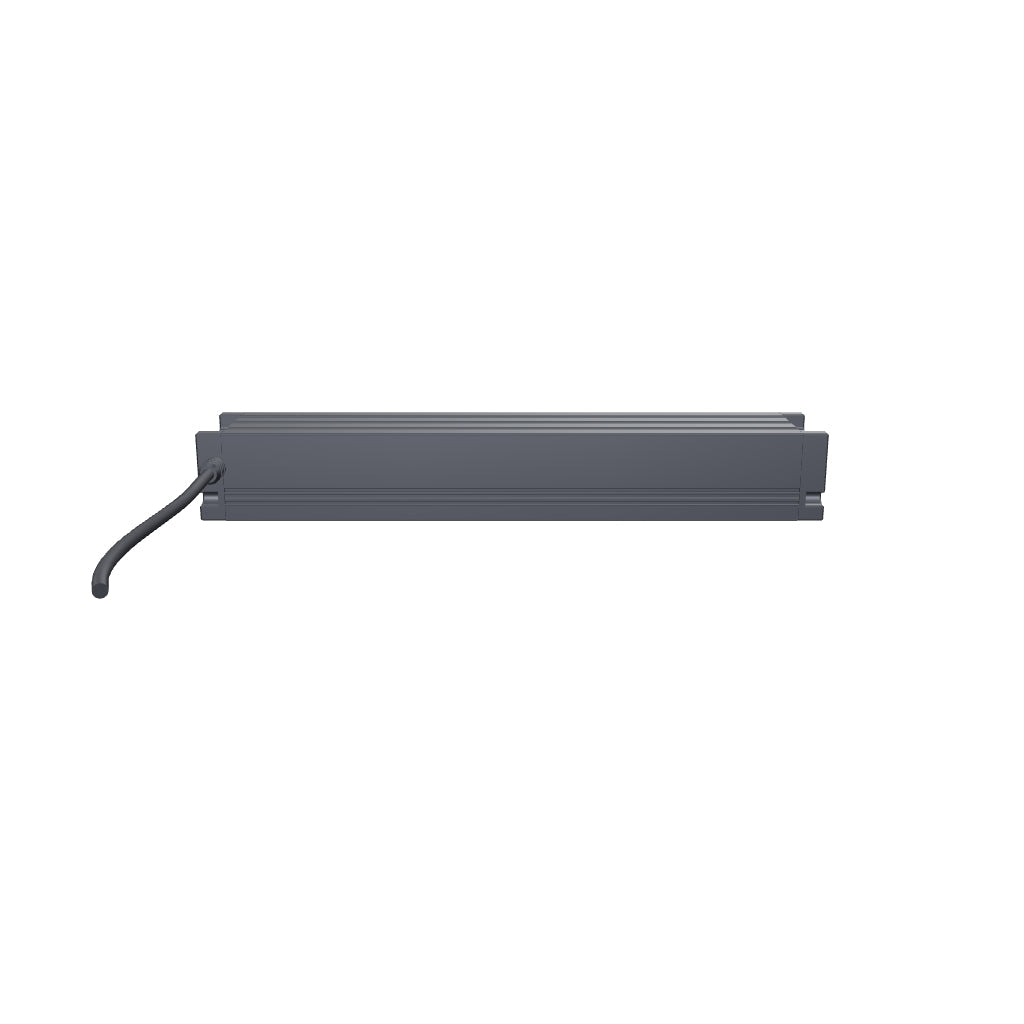

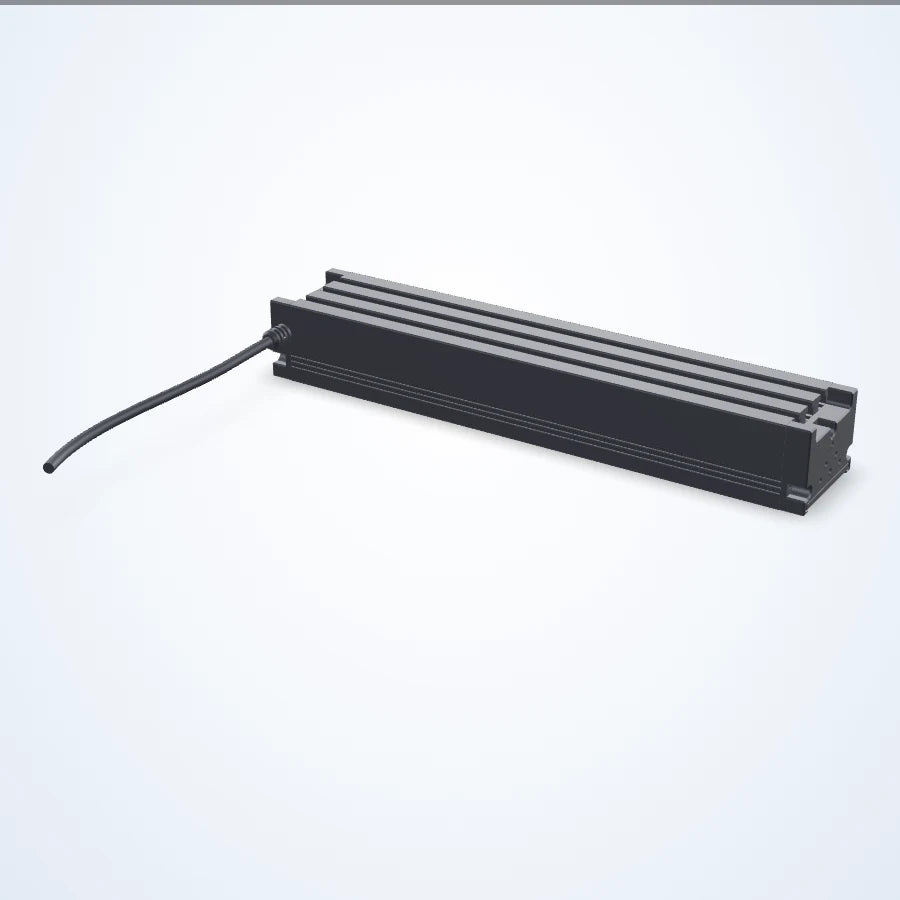

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

Source CAD

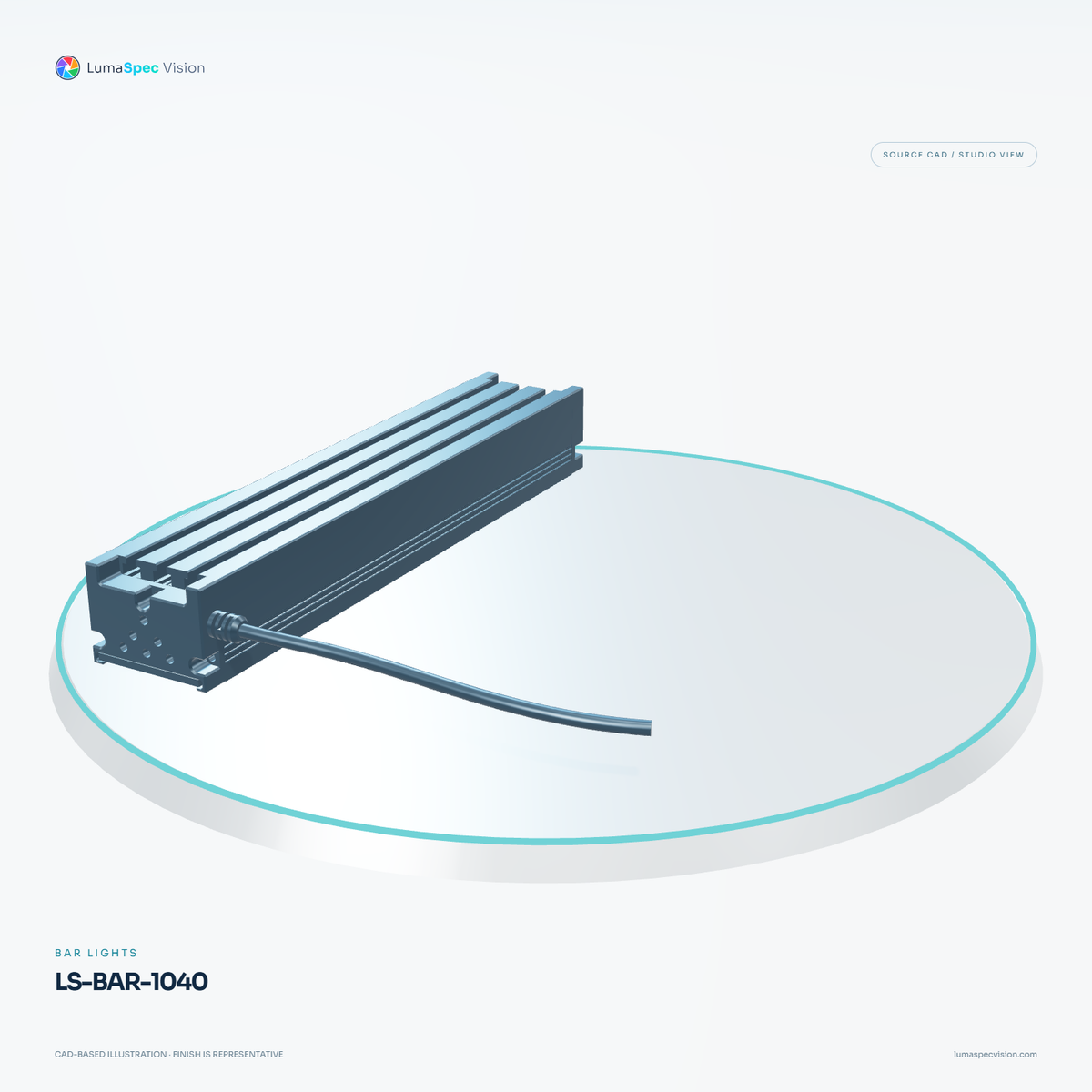

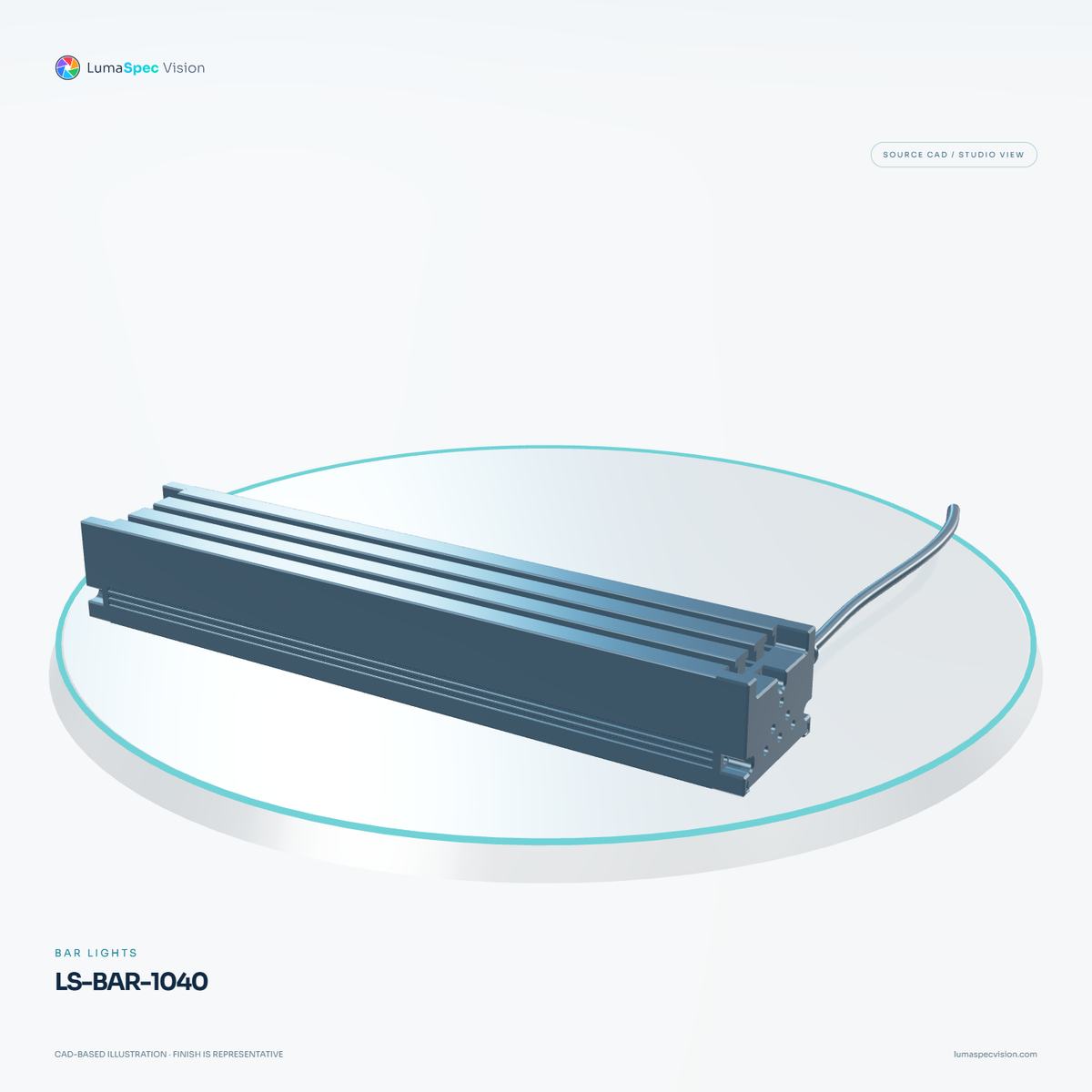

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

Outer size L x W x H (mm): 192x34x24
Emitting area (mm): 180x30
Voltage (V): 24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
