Bar lights

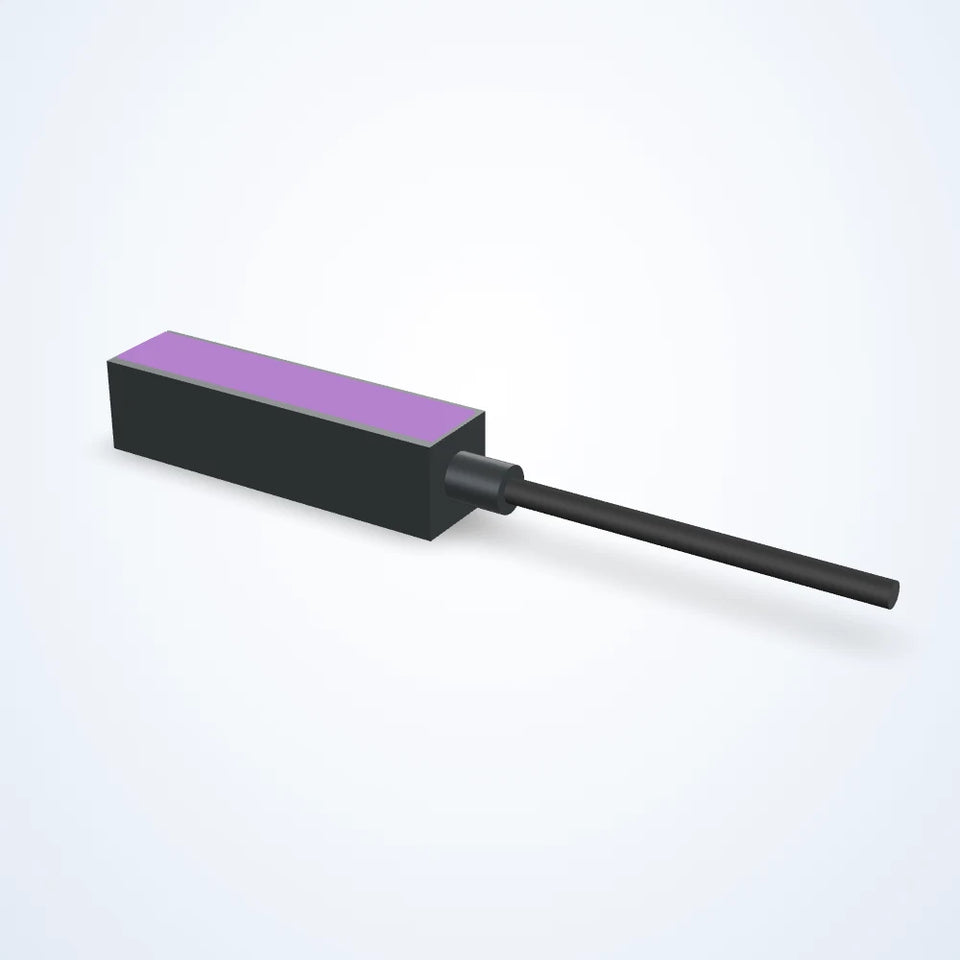

Bar light series, 20 mm high, Flying Leads
- 20 models
- from $399.00
- Series LS-BAR-S02
The Bar light series, 20 mm high, Flying Leads is a range of 20 bar lights from LumaSpec Vision, from $399.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 86.9 x 15.4 mm, 137.7 x 15.4 mm, 188.5 x 15.4 mm, 239.3 x 15.4 mm, 290.1 x 15.4 mm, 340.9 x 15.4 mm, 391.7 x 15.4 mm, 442.5 x 15.4 mm, 493.3 x 15.4 mm, 544.1 x 15.4 mm, 594.9 x 15.4 mm, 645.7 x 15.4 mm, 696.5 x 15.4 mm, 747.3 x 15.4 mm, 798.1 x 15.4 mm, 848.9 x 15.4 mm and 4 more
- Type
- Standard
- Voltage
- 24 V
- Colour
- Red, Green, Blue, White, Infrared, UV
- Wavelength
- 365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 850 nm, 940 nm
All 20 models in the Bar light series, 20 mm high, Flying Leads
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-0011 | 86.9 x 15.4 mm | 86.9 | 80 | 125 (by configuration) | $399.00quote | View |
| LS-BAR-0012 | 137.7 x 15.4 mm | 137.7 | 130.8 | 125 (by configuration) | $439.00quote | View |
| LS-BAR-0013 | 188.5 x 15.4 mm | 188.5 | 181.6 | 125 (by configuration) | $589.00quote | View |
| LS-BAR-0014 | 239.3 x 15.4 mm | 239.3 | 232.4 | 125 (by configuration) | $669.00quote | View |
| LS-BAR-0015 | 290.1 x 15.4 mm | 290.1 | 283.2 | 125 (by configuration) | $749.00quote | View |
| LS-BAR-0016 | 340.9 x 15.4 mm | 340.9 | 334 | 125 (by configuration) | $829.00quote | View |
| LS-BAR-0017 | 391.7 x 15.4 mm | 391.7 | 384.8 | 125 (by configuration) | $909.00quote | View |
| LS-BAR-0018 | 442.5 x 15.4 mm | 442.5 | 435.6 | 125 (by configuration) | $989.00quote | View |
| LS-BAR-0019 | 493.3 x 15.4 mm | 493.3 | 486.4 | 125 (by configuration) | $1,069.00quote | View |
| LS-BAR-0020 | 544.1 x 15.4 mm | 544.1 | 537.2 | 125 / 150 (by configuration) | $1,159.00quote | View |
| LS-BAR-0021 | 594.9 x 15.4 mm | 594.9 | 588 | 125 / 150 (by configuration) | $1,239.00quote | View |
| LS-BAR-0022 | 645.7 x 15.4 mm | 645.7 | 638.8 | 125 / 150 (by configuration) | $1,319.00quote | View |
| LS-BAR-0023 | 696.5 x 15.4 mm | 696.5 | 689.6 | 125 / 150 (by configuration) | $1,399.00quote | View |
| LS-BAR-0024 | 747.3 x 15.4 mm | 747.3 | 740.4 | 125 / 150 (by configuration) | $1,479.00quote | View |
| LS-BAR-0025 | 798.1 x 15.4 mm | 798.1 | 791.2 | 150 (by configuration) | $1,559.00quote | View |
| LS-BAR-0026 | 848.9 x 15.4 mm | 848.9 | 842 | 150 (by configuration) | $1,649.00quote | View |
| LS-BAR-0027 | 899.7 x 15.4 mm | 899.7 | 892.8 | 150 (by configuration) | $1,729.00quote | View |
| LS-BAR-0028 | 950.5 x 15.4 mm | 950.5 | 943.6 | 150 (by configuration) | $1,809.00quote | View |
| LS-BAR-0029 | 1001 x 15.4 mm | 1001 | 994.4 | 150 (by configuration) | $1,889.00quote | View |
| LS-BAR-0030 | 1052 x 15.4 mm | 1052 | 1045 | 150 (by configuration) | $1,969.00quote | View |
