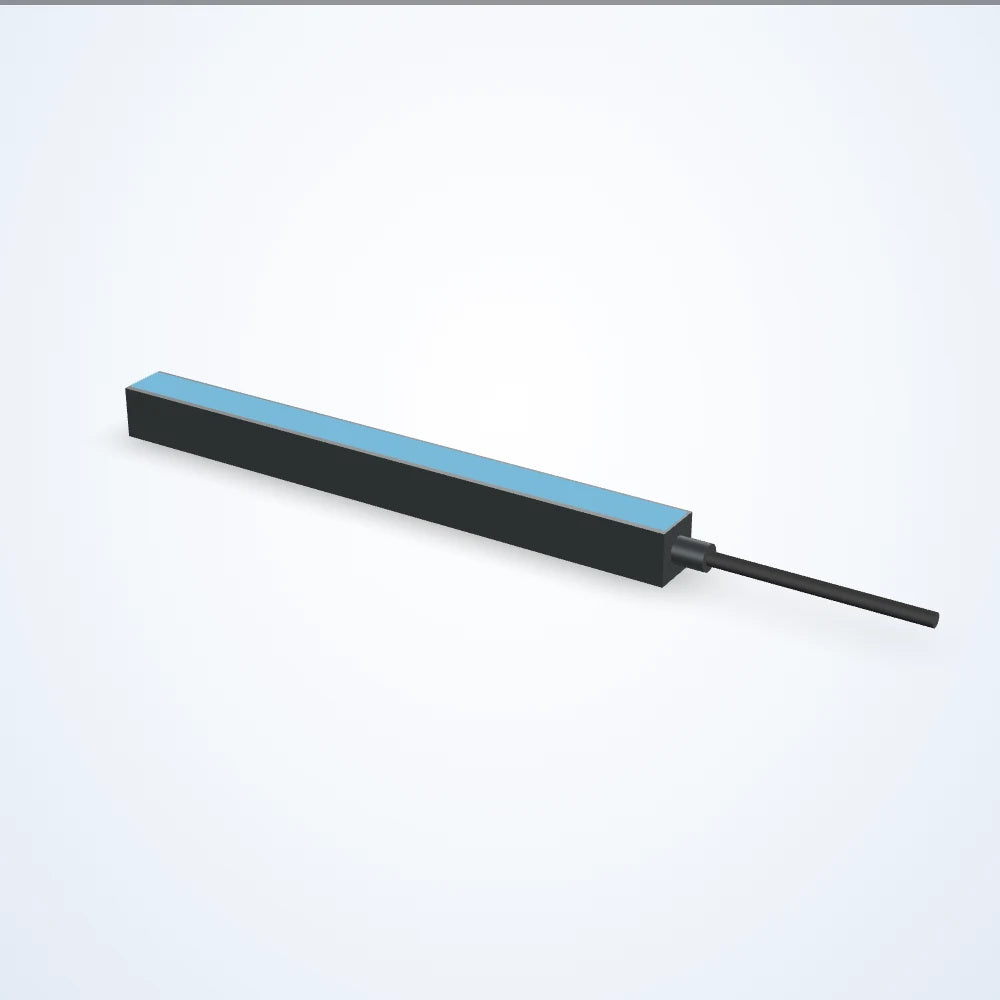

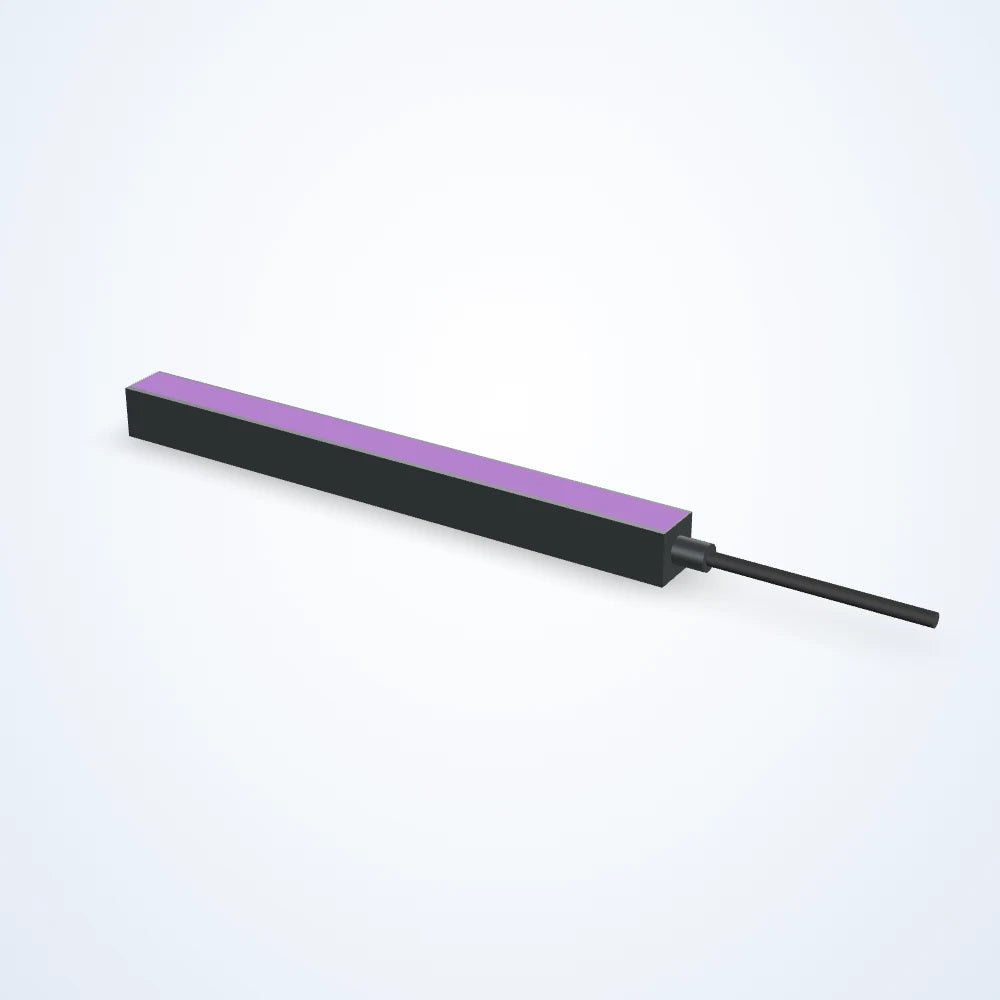

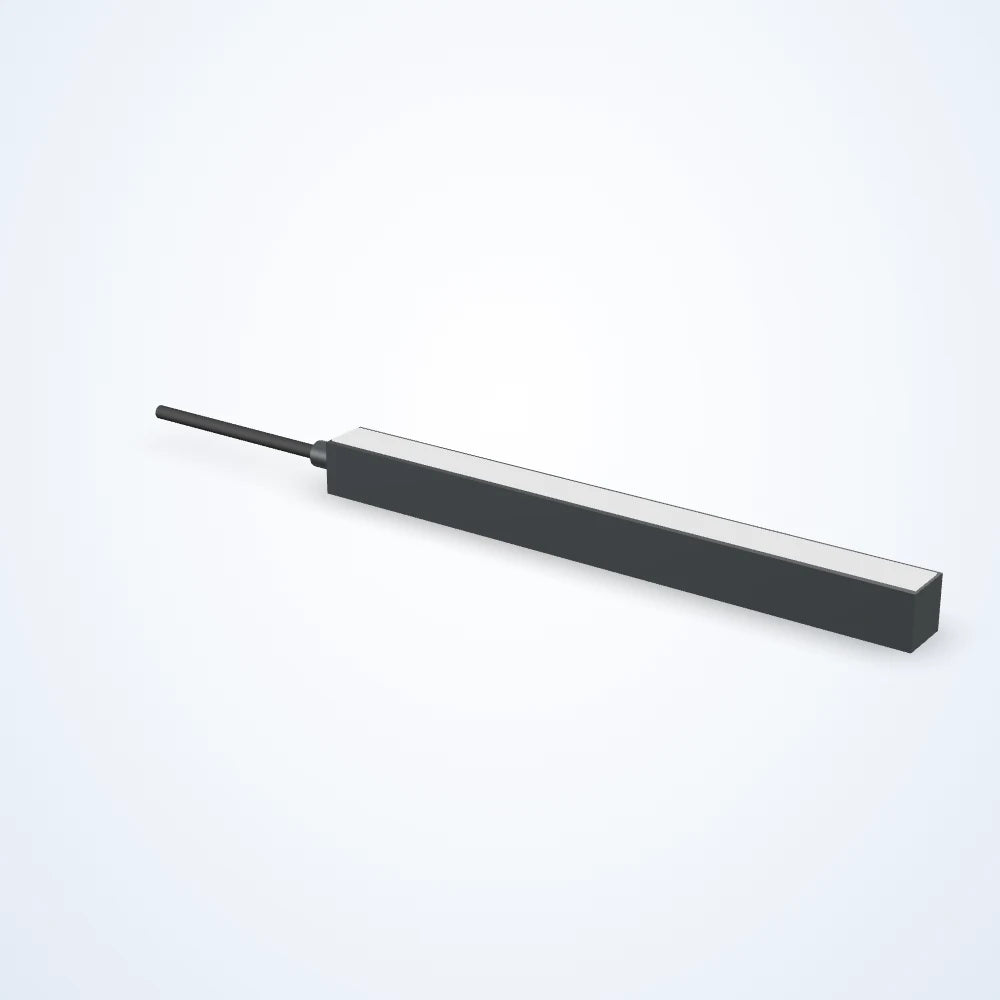

Bar light, 239.3 mm lit length (LS-BAR-0014)
Model LS-BAR-0014
- ColourWhite, UV, Infrared, Red, Green, Blue
- Voltage24 VDC
- TypeStandard
- Wavelength365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 850 nm, 940 nm
from $669.00 USDList price
Sold by quote: request a quote and we confirm the price, lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 52 available
Dashed or marked values are not made with your other choices: picking one switches them to the nearest available configuration.
Configuration LS-BAR-0014-01 $1,369.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED bar light for directional, low-angle or angled illumination: edges, surface texture, engraving and label reading, mounted singly or in pairs and quads. Lit area 239.3 x 15.4 mm; 24 VDC supply; connection: flying leads. Choose colour, driver included, driver location, intensity control, operating modes below (52 configurations) and request a quote.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEIEC 62471RoHS
Specifications
General
| Model | LS-BAR-0014 |
|---|---|
| Connection at light | Hardwired |
| Maximum duty cycle (%) | 100 |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | 0 to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS
As declared by the manufacturer |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 274 / 366 (by configuration) |
| Maximum input power constant on (W) | 6.6 / 8.8 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |
Mechanical
| Lit length (mm) | 239.3 |
|---|---|
| Lit width (mm) | 15.4 |
| Length (mm) | 232.4 |
| Width (mm) | 20 |
| Height (mm) | 20 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
Engineering data
Drive and fit the LS-BAR-0014
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Supply24 V DC
Emitting length239.3 mm
Ingress protectionIP50
Operating temperature0 to 60 °C
Cable length2000 mm
Mounting and installation
| Mounting | Tapped holes |
|---|---|
| Cable | 2 mFlying leads |
| Protection | IP50 |
| Housing | Aluminum |

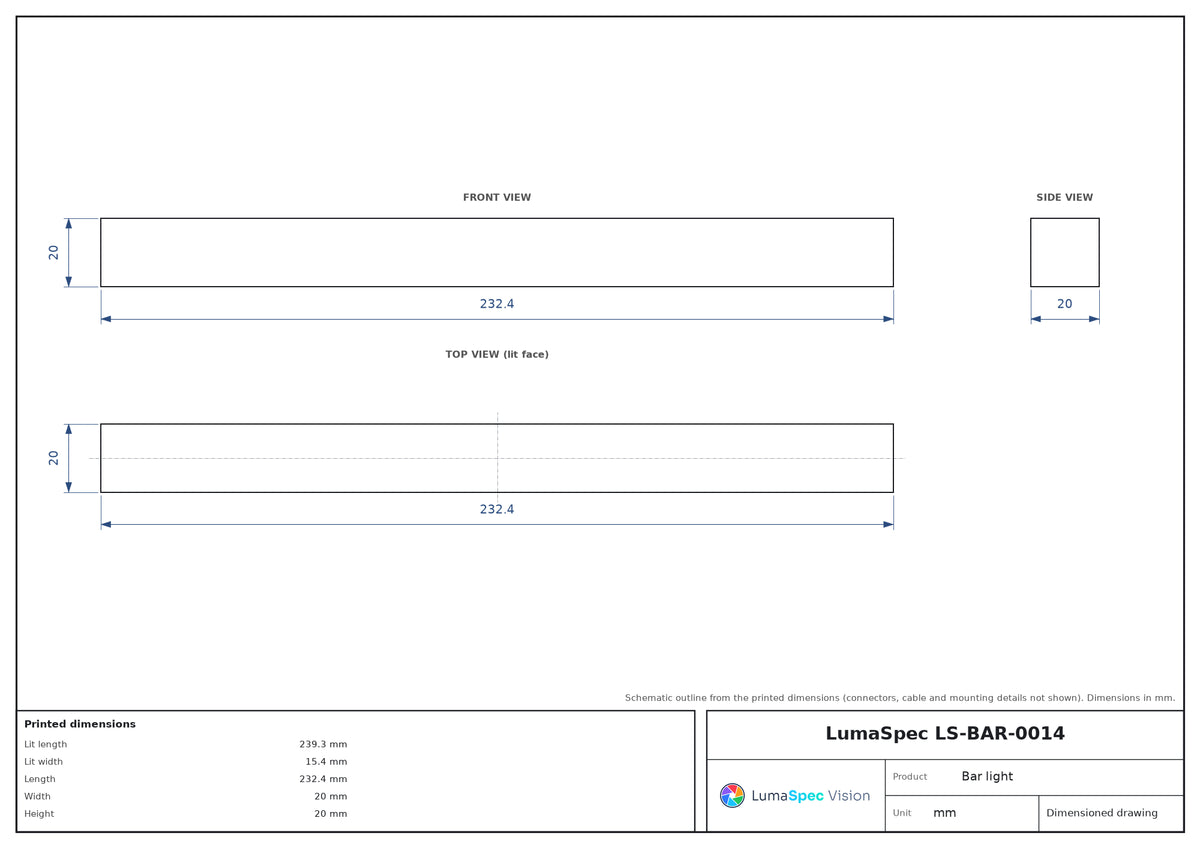

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
