Phone-frame positioning: use the outline and cut-outs together
A bright frame face, darker openings and a clear outer boundary are visible in the source capture. They provide several geometric features to test for localization before any positioning accuracy is claimed.
Use stable geometry for position; validate the machine-coordinate result separately.
Real camera capture
- Light in sourceLS-ROS154 · white
- EvidenceReal application-lab image
- Imaging kitCamera, lens and fixture proposed
- AcceptanceValidate on representative parts
Lighting application-lab catalog capture

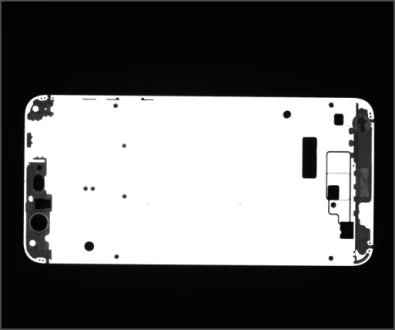

What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
A frame may be partly saturated even while the openings remain dark. A rule must tolerate ordinary reflection changes.
Position and orientation should be tied to stable geometry rather than incidental surface brightness.
How it was solved
The source identifies the white adjustable four-sided light and labels the task contour positioning.
Test an outline plus selected cut-outs on the actual frame. The proposed 3D frame is a representative bench specimen; source dimensions and source camera field are not supplied.
Why it works
- 1
The bright face and dark openings provide complementary geometry for a localization trial.
- 2
Those visible features do not establish coordinate accuracy, calibration or robot-handling performance.
Lighting application-lab catalog capture
Evidence you can inspect
The frame outer boundary and several cut-outs are clearly visible.
The catalog labels the example mobile-phone contour positioning under the white adjustable four-sided light.
No source frame dimensions, camera recipe, localization algorithm, position error or cycle time is given.
From image contrast to a production decision
What to validate on your part
- 01
Choose stable reference features
Use cut-outs and boundaries that remain present across the accepted design variants.
- 02
Vary finish and loading
Include normal reflectivity, part tilt, placement and fixture-background changes.
- 03
Calibrate the downstream coordinates
Measure image-to-machine registration separately if the result drives placement or motion.
From the demo to your test bench
Parts in this setup
LightTested
LS-ROS154

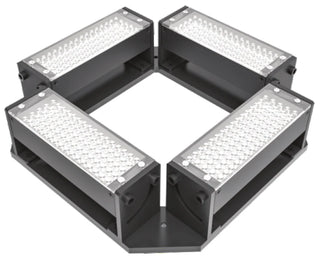

Four-side adjustable bar light (LS-ROS154)
White LS-ROS154 explicitly identified for mobile-phone contour positioning. Printed housing 154 × 154 × 42 mm and adjustable per-side angles; the actual source direction is unspecified.
$119.00
In proposed setup
CameraOur pick
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE area scan camera, IMX264, Gen 2 basic version, Mono, Without PoE
5 MP monochrome global-shutter camera proposed for a contrast trial. Confirm field, sampling, exposure and algorithm on the actual application.
$819.00
In proposed setup
LensOur pick
LS-KF1628M-ML
16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-KF1628M-ML)
Proposed 16 mm C-mount macro lens at its printed 0.1x magnification / 152 mm working-distance pair. The proposed 2448 × 2048 sensor with 3.45 µm pixels gives a derived 84.456 × 70.656 mm field; confirm focus, coverage and residual distortion on the real sample.
$319.00
In proposed setup
Camera test stationOur pick
LS-BT-XZ-G-6-6045
Camera stand with XZ adjustment and glass tray, height 600 mm (LS-BT-XZ-G-6-6045)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$359.00
In proposed setup
"Tested" identifies the part named in the source. "Our pick" is a proposed alternative or supporting part. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Tested light | LS-ROS154, white |
|---|---|
| Source camera / lens | Not specified in the source image caption; proposed parts below |
| Proposed lens point | 0.1x at 152 mm, printed lens pair |
| Derived proposed field | 84.456 × 70.656 mm = sensor dimensions / 0.1x; not a source test field |
| Light envelope (printed) | 154 × 154 × 42 mm |
| Source part size | Not supplied; representative frame geometry in 3D |
| Mounting (proposed) | LS-BT-XZ-G-6-6045; 600 mm column, 600 × 450 mm base, glass tray and two included lighting holders |
Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.

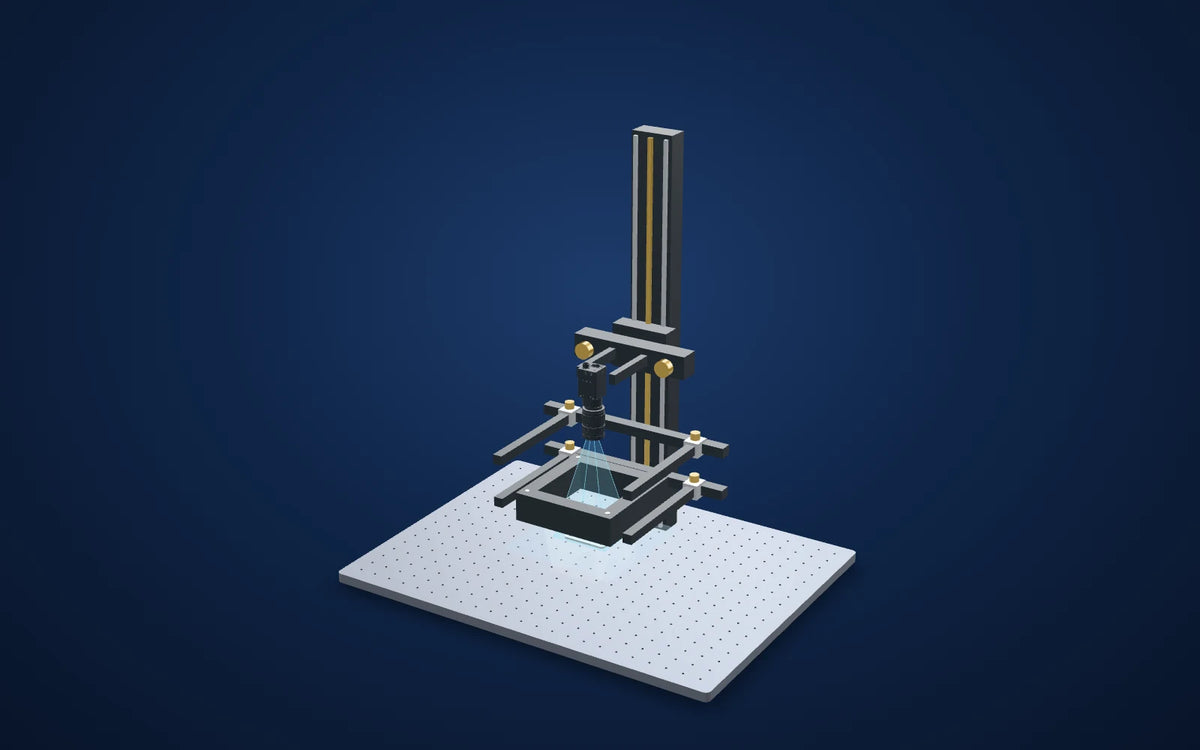

Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. Representative part geometry is illustrative, not reconstructed inspection evidence. The specimen and lighting angle are representative, not dimensions or settings recovered from the source capture.
