Bar lights

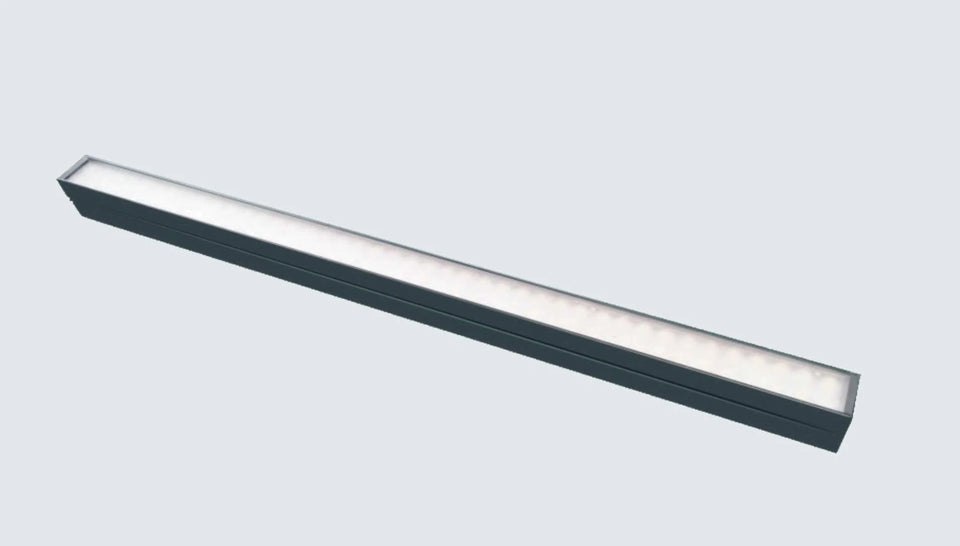

High-brightness bar light (LS-BAR-S87)
- 5 models
- from $219.00
- Series LS-BAR-S87
The High-brightness bar light (LS-BAR-S87) is a range of 5 bar lights from LumaSpec Vision, from $219.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 x 32 mm, 200 x 32 mm, 300 x 32 mm, 500 x 32 mm, 800 x 32 mm
- Colour
- Red, Green, Blue, White
- Type
- Linear / high intensity
- Voltage
- 24 V
Features
- Brightness more than 3 times a standard bar light
- High-power LEDs, long working distance
- Length customisable
Typical uses
- All bar-light applications
- Character inspection
- Appearance inspection
- Component inspection on substrates
- Skylight (opening) feature positioning
All 5 models in the High-brightness bar light (LS-BAR-S87)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-0894 | 100 x 32 mm | 100 x 32 | 18 | L 112 x W 38 | $219.00 | View |
| LS-BAR-0895 | 200 x 32 mm | 200 x 32 | 36 | L 212 x W 38 | $319.00 | View |
| LS-BAR-0896 | 300 x 32 mm | 300 x 32 | 54 | L 312 x W 38 | $329.00 | View |
| LS-BAR-0897 | 500 x 32 mm | 500 x 32 | 80 | L 512 x W 38 | $569.00 | View |
| LS-BAR-0898 | 800 x 32 mm | 800 x 32 | 144 | L 812 x W 38 | $979.00 | View |
