Bar lights

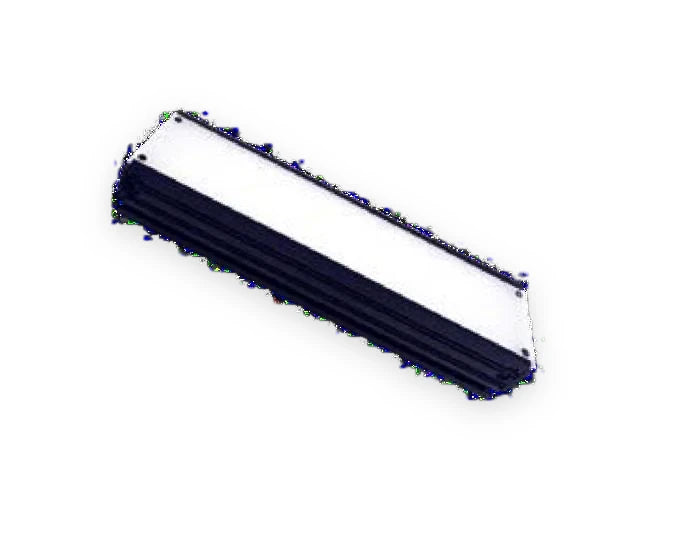

Strip light source, LS-BAR-S91 series
- 7 models
- from $159.00
- Series LS-BAR-S91
The Strip light source, LS-BAR-S91 series is a range of 7 bar lights from LumaSpec Vision, from $159.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 50.4 mm, 75.6 mm, 151.2 mm, 201.6 mm, 252 mm, 302.4 mm, 403.2 mm
- Colour
- Red, Green, Blue, White, Infrared, UV
- Type
- Strip / combination
- Voltage
- 24 V
Features
- First choice for large-area lighting, high cost performance
- Surface-mount LEDs and special optical lenses, concentrated light divergence angle, high light efficiency, stable mass production
- Size can be customized according to different needs
Typical uses
- Metal surface inspection
- PCB substrate inspection, electronic component inspection, appearance defect inspection
- Printed material character recognition, mobile phone case positioning, PCB component presence/absence detection
- Infrared screw detection
- Glue outline
All 7 models in the Strip light source, LS-BAR-S91 series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BAR-0957 | 50.4 mm | 50.4 | 65.4 | 4 | $159.00 | View |
| LS-BAR-0958 | 75.6 mm | 75.6 | 90.6 | 5.2 | $189.00 | View |
| LS-BAR-0959 | 151.2 mm | 151.2 | 166.2 | 6.5 | $259.00 | View |
| LS-BAR-0961 | 252 mm | 252 | 267 | 10.5 | $299.00 | View |
| LS-BAR-0960 | 201.6 mm | 201.6 | 216.6 | 9.3 | $309.00 | View |
| LS-BAR-0962 | 302.4 mm | 302.4 | 317.4 | 13.5 | $329.00 | View |
| LS-BAR-0963 | 403.2 mm | 403.2 | 418.2 | 19 | $519.00 | View |
