Representative photo of this series
Bar lights
151.2 mm strip light source, LS-BAR-S91 series (LS-BAR-0959)
Model LS-BAR-0959
- ColourRed, Green, Blue, White, Infrared, UV
- Emitting area30 mm
- Voltage24 V DC (12 V on request)
- TypeStrip / combination
$259.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Strip light with surface-mount LEDs and special optical lenses that concentrate the divergence angle; first choice for large-area lighting with high cost performance. Size can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0959 |
|---|---|
| Number of lamp rows | 6 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting surface width (mm) | 30 |
|---|---|
| Emitting surface length (mm) | 151.2 |
Electrical
| Voltage | 24 V DC (12 V on request) |
|---|---|
| Power red (W) | 6.5 |
| Power white/blue/green (W) | 7 |

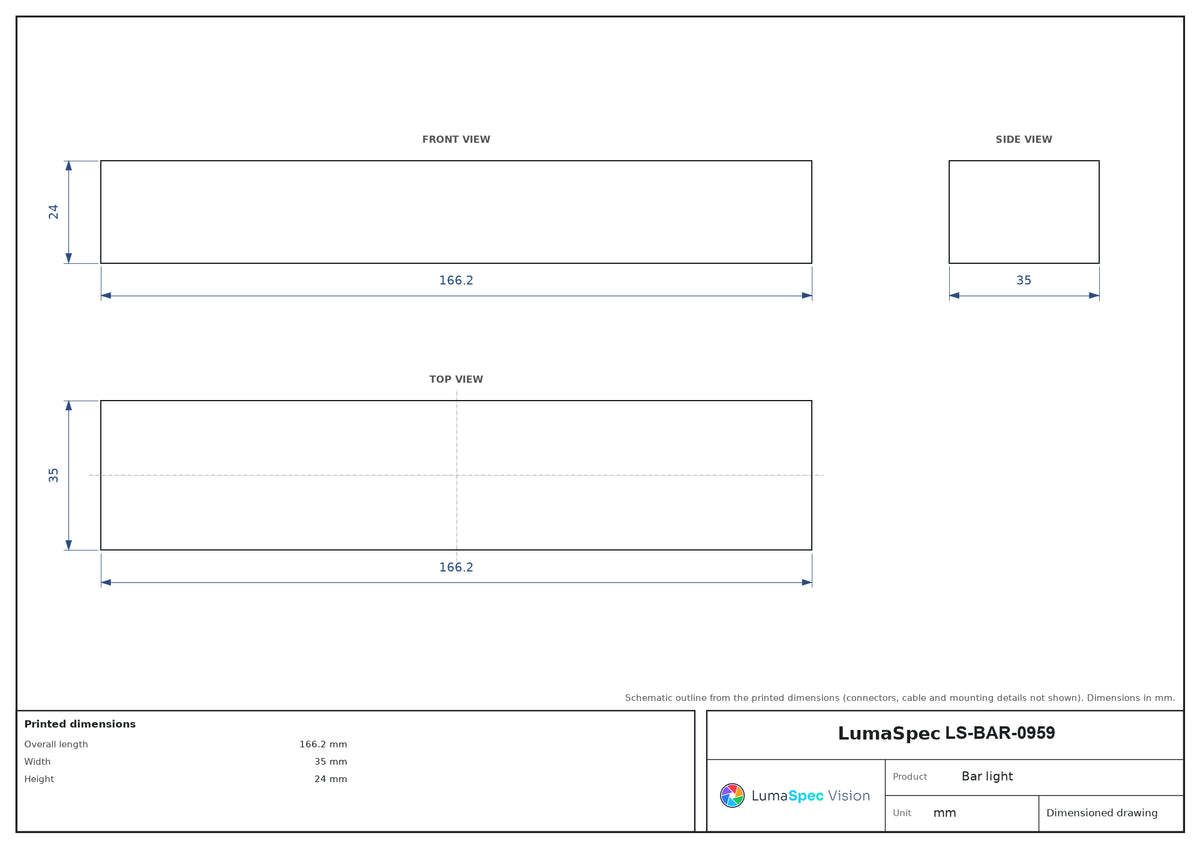

Mechanical
| Width (mm) | 35 |
|---|---|
| Height (mm) | 24 |
| Mounting | 2 x M3, depth 4 |
| Overall length (mm) | 166.2 |
| Overall width (mm) | 35 |
| Overall height (mm) | 24 |
| Shipping weight | 0.35 kg |
Other models in the Strip light source, LS-BAR-S91 series series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-0957 | 50.4 mm | $159.00 | 28 in stock | View |
| LS-BAR-0958 | 75.6 mm | $189.00 | 15 in stock | View |
| LS-BAR-0961 | 252 mm | $299.00 | 23 in stock | View |
| LS-BAR-0960 | 201.6 mm | $309.00 | 23 in stock | View |
| LS-BAR-0962 | 302.4 mm | $329.00 | 24 in stock | View |
| LS-BAR-0963 | 403.2 mm | $519.00 | 18 in stock | View |
