High uniformity bar light (LS-BAR-S69)
  • High uniformity bar light (LS-BAR-S69)
  • LS-BAR-0464 dimensions (mm)

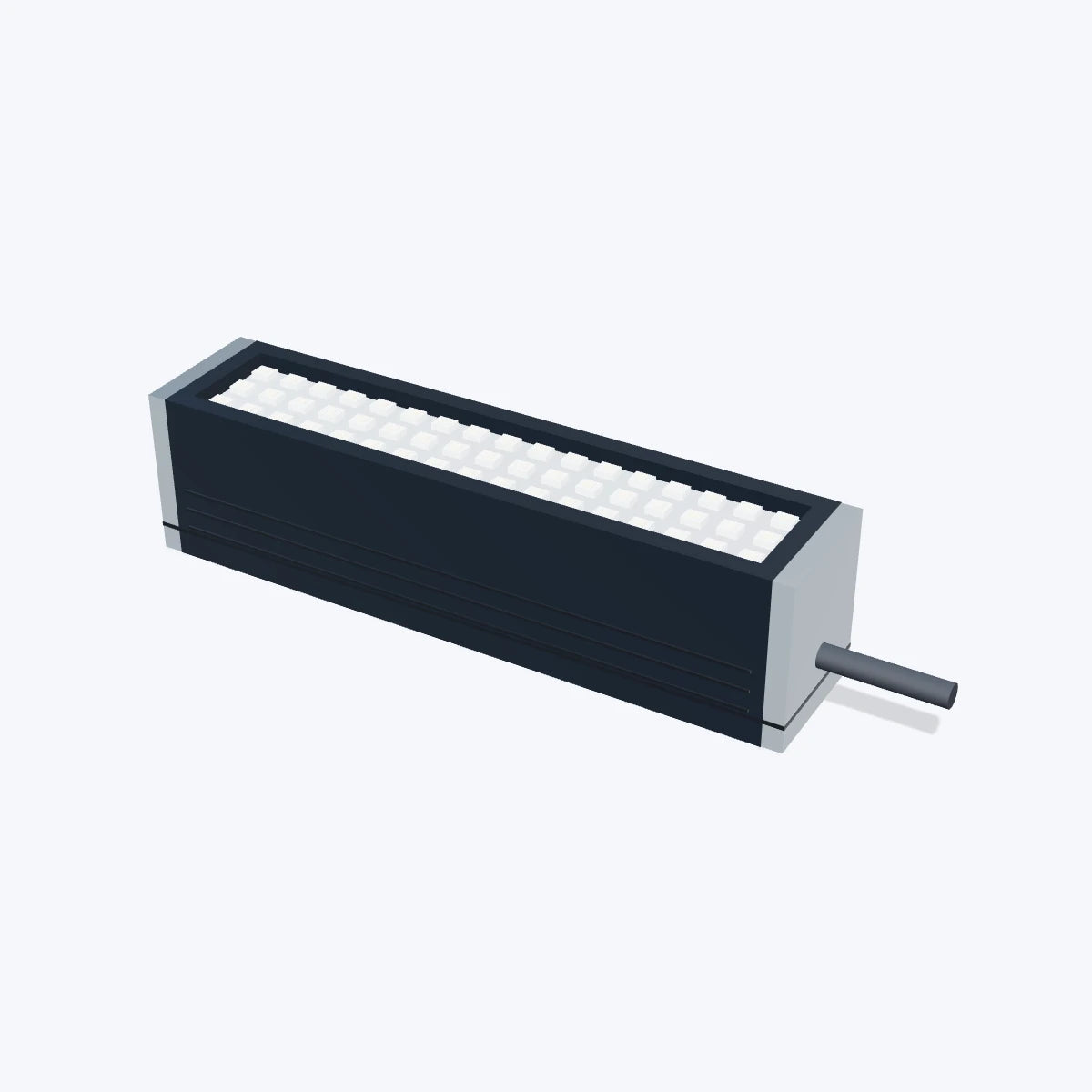

Representative photo of this series

Bar lights

102 x 16 mm High uniformity bar light (LS-BAR-0469)

Model LS-BAR-0469

  • ColourRed, Green, Blue, White
  • Size102 mm
  • Voltage24 V
  • TypeStandard
$219.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

102 x 16 mm High uniformity bar light (LS-BAR-0469)LS-BAR-0469

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

High uniformity bar light with a wide-angle LED array and high luminance; parts made with high-precision moulds reduce batch-to-batch differences, with high heat-dissipation performance, multiple installation methods and optional diffuser plates of different transmittance.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0469
Light array quantities3
Remark16mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white6600 K
Emitting lengthB = A - 12
Luminous surface width (mm)16
Emitting length B (mm)90

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersAnalog controller, digital controller, high power controller
Power (R)1.4W
Power (G/B/W)2.2W

Mechanical

Weight105 g
Dimension A (mm)102

Other models in the High uniformity bar light (LS-BAR-S69) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-BAR-0464 30 mm $89.00 Ships in 2-3 weeks View
LS-BAR-0465 42 x 16 mm $149.00 Ships in 2-3 weeks View
LS-BAR-0466 62 x 30 mm $169.00 Ships in 2-3 weeks View
LS-BAR-0467 72 x 16 mm $179.00 Ships in 2-3 weeks View
LS-BAR-0468 87 x 30 mm $199.00 Ships in 2-3 weeks View
LS-BAR-0470 112 x 30 mm $229.00 Ships in 2-3 weeks View
LS-BAR-0471 132 x 16 mm $259.00 Ships in 2-3 weeks View
LS-BAR-0473 162 x 16 mm $259.00 Ships in 2-3 weeks View
LS-BAR-0472 137 x 30 mm $259.00 Ships in 2-3 weeks View
LS-BAR-0474 162 x 30 mm $259.00 Ships in 2-3 weeks View
LS-BAR-0479 237 x 30 mm $269.00 Ships in 2-3 weeks View
LS-BAR-0476 192 x 16 mm $279.00 Ships in 2-3 weeks View
LS-BAR-0475 187 x 30 mm $279.00 Ships in 2-3 weeks View
LS-BAR-0480 252 x 16 mm $299.00 Ships in 2-3 weeks View
LS-BAR-0481 262 x 30 mm $299.00 Ships in 2-3 weeks View
LS-BAR-0482 282 x 16 mm $309.00 Ships in 2-3 weeks View
LS-BAR-0483 287 x 30 mm $319.00 Ships in 2-3 weeks View
LS-BAR-0477 212 x 30 mm $329.00 Ships in 2-3 weeks View
LS-BAR-0484 312 x 16 mm $339.00 Ships in 2-3 weeks View
LS-BAR-0485 312 x 30 mm $339.00 Ships in 2-3 weeks View
LS-BAR-0478 222 x 16 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0487 342 x 16 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0486 337 x 30 mm $359.00 Ships in 2-3 weeks View
LS-BAR-0488 362 x 30 mm $379.00 Ships in 2-3 weeks View
