3D sensors
Express Logistics
- 14 models
- from $1,009.00
- Series HIK-EXPRESS-LOGISTICS

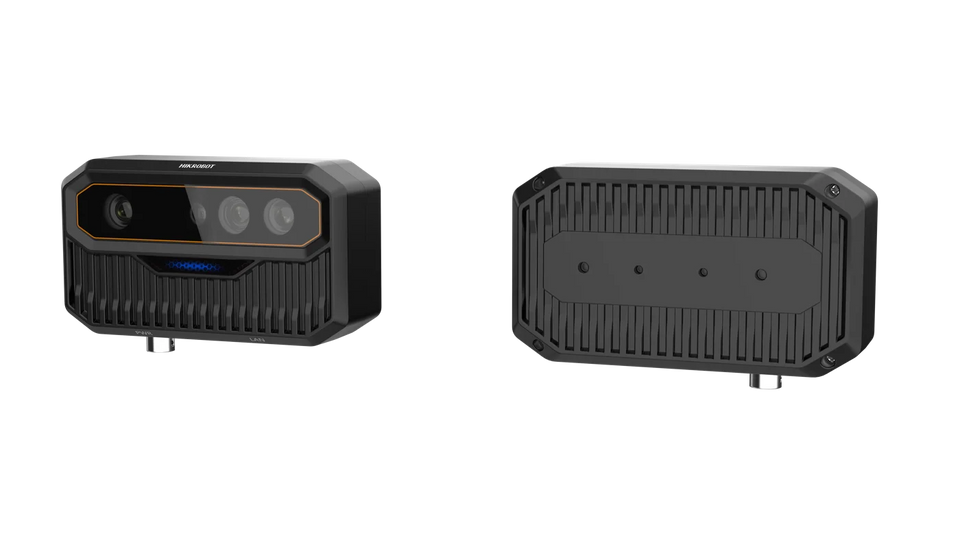

The Express Logistics is a range of 14 3d sensors from Hikrobot, from $1,009.00. It comes in 2 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.4 MP, 6.3 MP
- Type
- Laser profiler, Logistics / volume
- Series
- Logistics 3D cameras
Features
- High-performance sensor with an energy-efficient laser module delivers stable, efficient depth maps with millimeter accuracy
- AI hardware core supports custom deep-learning models
- Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
- Compact size and flexible mounting for many applications
- Narrow-band filter resists ambient light interference
- Gigabit Ethernet interface for a stable, reliable link
- Adopts built-in deep learning algorithm and 3D image process algorithm.
- Large field of view, suitable for scenes with limited working distances.
All 14 models in the Express Logistics
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-DB300S-V | Gigabit Ethernet(1000Mbit/s) | 1850 mm × 1600 mm | 325 mm × 320 mm | 5.5 W@12 VDC | $1,009.00quote | View |
| MV-DB500S-C V3.0 | Gigabit Ethernet (1000 Mbit/s) | 2500 mm × 1800 mm | 580 mm × 470 mm | Typ. 6.76 W @ 24 VDC | $3,199.00quote | View |
| MV-DB500S-C | Gigabit Ethernet(1000Mbit/s) | 2500 mm × 1800 mm | 580 mm × 470 mm | 6.76W@24 VDC | $3,199.00quote | View |
| MV-DB700S-C V3.0 | Gigabit Ethernet (1000 Mbit/s) | 2200 mm × 1500 mm | 590 mm × 470 mm | Typ. 8.2 W @ 24 VDC | $3,229.00quote | View |
| MV-DB700S-S V3.0 | Gigabit Ethernet (1000 Mbit/s) | 2200 mm × 1500 mm | 590 mm × 470 mm | Typ. 9 W @ 24 VDC | $3,229.00quote | View |
| MV-DB700S-S | Gigabit Ethernet(1000Mbit/s) | 2200 mm × 1500 mm | 590 mm × 470 mm | 9W@24 VDC | $3,229.00quote | View |
| MV-DB700S-C | Gigabit Ethernet(1000Mbit/s) | 2200 mm × 1500 mm | 590 mm × 470 mm | 9W@24 VDC | $3,229.00quote | View |
| MV-DB1300A-V V2.0 | Gigabit Ethernet(1000Mbit/s) | 3340 mm× 2500 mm@3200 mm | 870 mm × 860 mm@1100 mm | 10 W@24 VDC | $3,229.00quote | View |
| MV-DB500S-S | Gigabit Ethernet | 2500 mm × 1800 mm | 580 mm × 470 mm | Avg. 5.5 W@24 VDC | $3,249.00quote | View |
| MV-DB500S-V | Gigabit Ethernet (1000 Mbit/s) | 2400 mm × 1800 mm | 580 mm × 470 mm | Typ. 9 W @ 24 VDC | $8,509.00quote | View |
| MV-DL2125-04H-R | Gigabit Ethernet (1000 Mbit/s) | 2600 mm | 1000 mm | Typ. 10 W @ 12 VDC | $9,609.00quote | View |
| MV-DL2125-04P-R | Gigabit Ethernet (1000 Mbit/s) | 2600 mm | 1000 mm | Typ. 19.2 W @ 24 VDC | $9,609.00quote | View |
| MV-DL2126-04H-R | Gigabit Ethernet(1000 Mbit/s) | 2000 mm | 700 mm | 10.0 W@12 VDC | $9,609.00quote | View |
| MV-DL2126-04P-R | Gigabit Ethernet(1000 Mbit/s) | 2000 mm | 700 mm | 16.8 W@24 VDC | $9,609.00quote | View |
