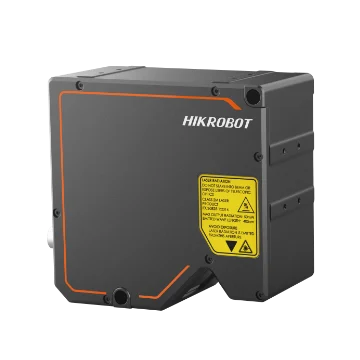

3D sensors
DP4000 Series
- 10 models
- from $12,379.00
- Series HIK-DP4000
The DP4000 Series is a range of 10 3d sensors from Hikrobot, from $12,379.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Type
- Laser profiler
- Series
- DP4000 series
Features
- Adopts high-speed, high-resolution, and large-pixel element image chips.
- Adopts FPGA hardware with 49 KHz scan frame rate.
- Provides customized large iris lens and ultra-uniform laser optical solution.
- Adopts ultra-high subpixel algorithm and accuracy is up to submicron level.
- Supports multiple exposure modes with good robustness.
- Adopts multiple-frame integration technology to provide complete profiles.
- Provides multiple filter modes with stable data.
- Adopts integrated design for easy installation and debugging.
All 10 models in the DP4000 Series
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-DP4020-01P | 0.41 μm to 0.58 μm | 405 nm | Typ. 20.6 W @ 24 VDC | Class 3B | $12,379.00quote | View |
| MV-DP4060-01P | 1.06 μm to 1.98 μm | 405 nm | Typ. 20.6 W @ 24 VDC | Class 2 | $12,379.00quote | View |
| MV-DP4090-01P | 1.87 μm to 3.98 μm | 405 nm | Typ. 20.6 W @ 24 VDC | Class 3R | $12,379.00quote | View |
| MV-DP4180-01P | 3.72 μm to 8.40 μm | 405 nm | Typ. 20.6 W @ 24 VDC | Class 3R | $12,379.00quote | View |
| MV-DP4180-03P | 3.72 μm to 8.40 μm | 650 nm | Typ. 20.6 W @ 24 VDC | Class 3R | $12,379.00quote | View |
| MV-DP4430-01P | 8.4 μm to 35.5 μm | 405 nm | Typ. 20 W @ 24 VDC | Class 3R | $12,379.00quote | View |
| MV-DP4430-03P | 8.4 μm to 35.5 μm | 650 nm | Typ. 20 W @ 24 VDC | Class 3R | $12,379.00quote | View |
| MV-DP4940-03P | 14.8 μm to 98.7 μm | 650 nm | Typ. 20 W @ 24 VDC | Class 3R | $12,379.00quote | View |
| MV-DP4060-01PS | 1.06 ~ 1.98 μm | 20.6 W@24 VDC | Class 2 | $12,379.00quote | View | |
| MV-DP4920-05MAX | 1.87 ~ 3.98 μm | 20.6 W@24 VDC | Class 3R | $12,379.00quote | View |
