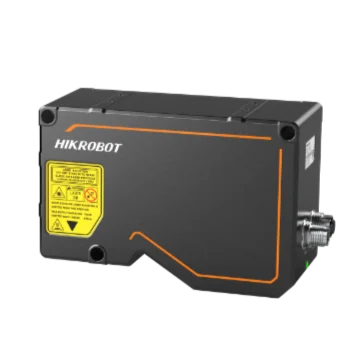

Hikrobot MV-DP4920-05MAX 3D laser profile sensor

Model MV-DP4920-05MAXHikrobot

TypeLaser profiler
Data points/profile4080
Reference distance94 mm
Resolution (Z-axis)1.87 ~ 3.98 μm

$12,379.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

1.71 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DP4920-05MAX 3D laser profile sensor. High-frame-rate, high-resolution image sensor with large pixels FPGA hardware acceleration, scan rate up to 49 kHz

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP4920-05MAX
Brand	Hikrobot
Data points/profile	4080
Reference distance	94 mm
Measurement range (Z-axis)	42 mm
Measurement range (X-axis)	44 mm @ near end; 51.5 mm @ reference distance; 59 mm @ far end
Repeatability (Z-axis)*	0.66 μm @ data that sensor tests gauge block on optical platform
Linearity Z-axis (±% of MR)	0.01
Profile data interval	10.6 ~ 15.9 μm
Laser safety class	Class 3R

Sensor and imaging

Resolution (Z-axis)	1.87 ~ 3.98 μm
Scan frame rate	2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Client software	3DMVS (V3.1.0 and above), VM3D, or third-party software

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	20.6 W@24 VDC

Mechanical

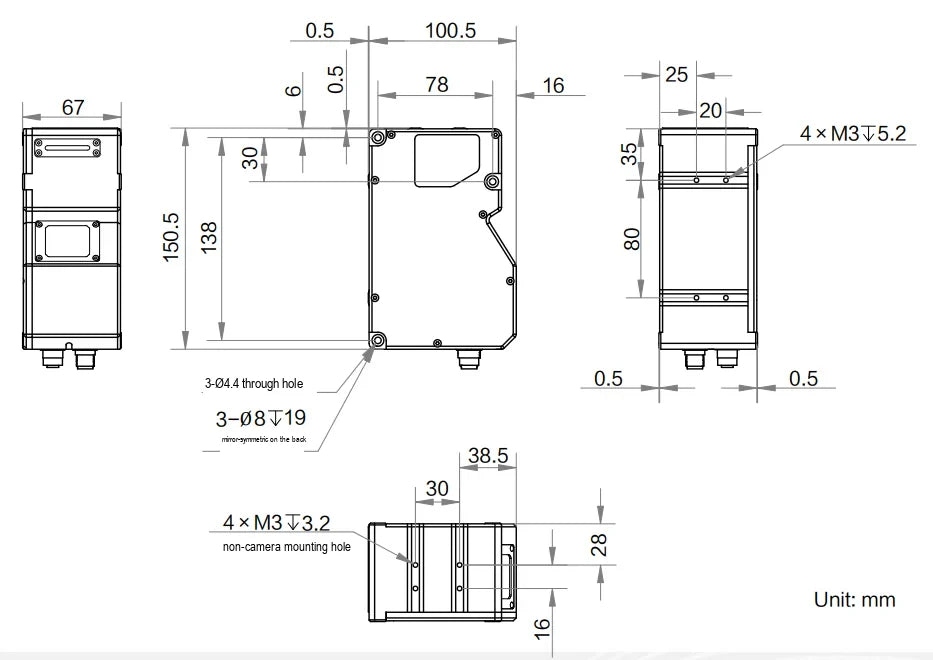

Dimension	150.5 mm ×100.5 mm × 67 mm
Weight	Approx. 1150 g (2.5 lb.)
Shipping weight (estimated)	1.71 kg

Downloads

Datasheet (PDF, Chinese)MV-DP4920-05MAX · 1.0 MB

Features

High-frame-rate, high-resolution image sensor with large pixels
FPGA hardware acceleration, scan rate up to 49 kHz
Custom large-aperture lens and ultra-uniform laser optics
Ultra-high-precision sub-pixel algorithm with sub-micron precision
Multiple exposure modes for greater robustness
Multi-frame fusion algorithm for more complete contours
Selectable filtering modes for more stable data
Integrated design for easy installation and setup
