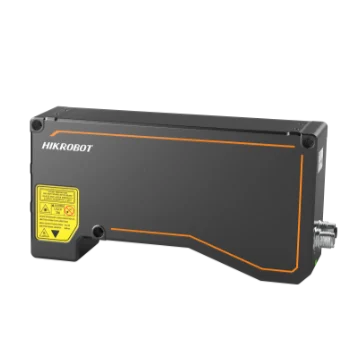

Hikrobot MV-DP4430-03P 3D Laser Profile Sensor
Model MV-DP4430-03PHikrobot
- TypeLaser profiler
- Data points/profile4080
- Reference distance430 mm
- Resolution (Z-axis)8.4 μm to 35.5 μm
$12,379.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
1.91 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DP4430-03P 3D Laser Profile Sensor. Adopts high-speed, high-resolution, and large-pixel element image chips. Adopts FPGA hardware with 49 KHz scan frame rate.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DP4430-03P |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 4080 |
| Reference distance | 430 mm |
| Measurement range (Z-axis) | 340 mm |
| Measurement range (X-axis) | 153 mm @ near field of view; 241 mm @ reference distance; 329 mm @ far field of view |
| Repeatability (Z-axis)* | 2.27 μm @ data that sensor tests gauge block on optical platform |
| Linearity Z-axis (±% of MR) | 0.01 |
| Profile data interval | 35.7 μm to 85.4 μm |
| Laser safety class | Class 3R |
Sensor and imaging
| Resolution (Z-axis) | 8.4 μm to 35.5 μm |
|---|---|
| Scan frame rate | 2.5 kHz (within max. measurement range), max. 49 kHz (in ROI mode) |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1 |
| Client software | 3DMVS (V3.1.0 and above), VM3D, or third-party software |
Light
| Wavelength | 650 nm |
|---|
Environment and compliance
| Ingress protection | IP67 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
|---|
Electrical
| Data output | Profile data, depth image, brightness image |
|---|---|
| Trigger mode | Software trigger, external trigger (differential encoder) |
| Power consumption | Typ. 20 W @ 24 VDC |
| Power supply | 24 VDC |
Mechanical

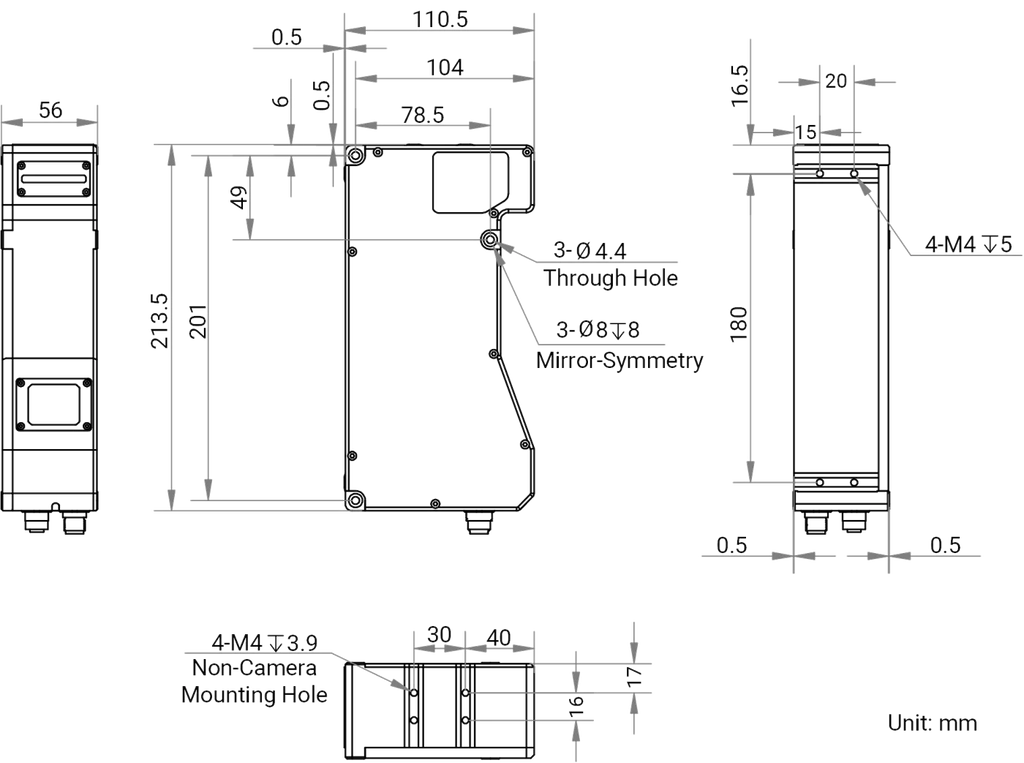

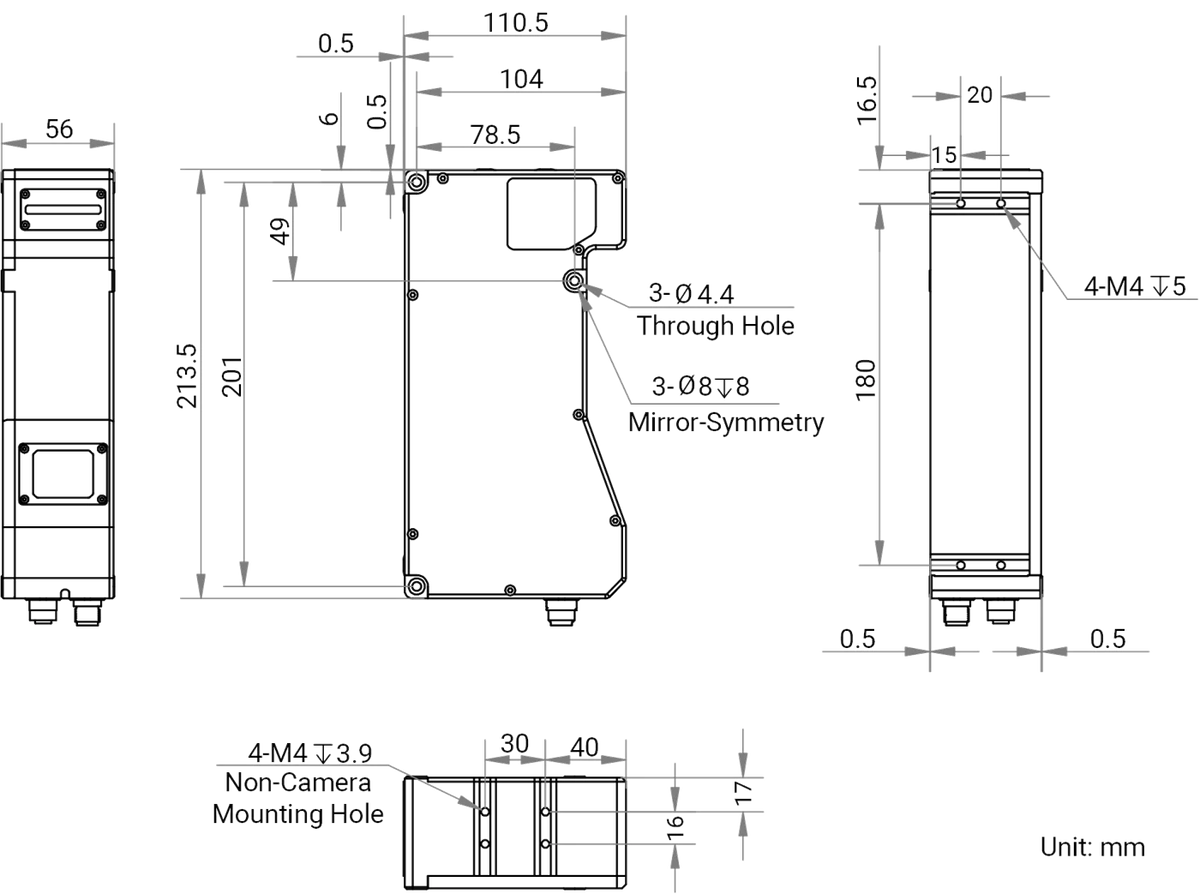

| Dimension | 213.5 mm × 110.5 mm × 56 mm (8.4" × 4.4" × 2.2") |
|---|---|
| Weight | Approx. 1296 g (2.9 lb.) |
| Shipping weight (estimated) | 1.91 kg |
