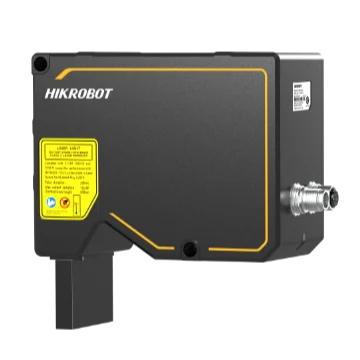

Hikrobot MV-DP4060-01PS 3D laser profile sensor, DP4000 Series

Model MV-DP4060-01PSHikrobot

TypeLaser profiler
Data points/profile4080
Reference distance60 mm
Resolution (Z-axis)1.06 ~ 1.98 μm

$12,379.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

1.79 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DP4060-01PS 3D laser profile sensor, DP4000 Series. High-frame-rate, high-resolution image sensor with large pixels FPGA hardware acceleration, scan rate up to 49 kHz

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP4060-01PS
Brand	Hikrobot
Data points/profile	4080
Reference distance	60 mm
Measurement range (Z-axis)	21 mm
Measurement range (X-axis)	28 mm @ near field of view; 32 mm @ reference distance; 36 mm @ far field of view
Repeatability (Z-axis)*	0.36 μm @ sensor measuring standard gauge blocks on an optical table1
Linearity Z-axis (±% of MR)	0.01
Profile data interval	6.9 ~ 9.7 μm
Laser safety class	Class 2

Sensor and imaging

Resolution (Z-axis)	1.06 ~ 1.98 μm
Scan frame rate	2.5 kHz (at max. measurement range), Up to 49 kHz (ROI mode)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 interface provides power and I/O, including differential input × 3 (Line 0/3/6), differential output × 1 (Line 1), and RS-232 × 1
Client software	3DMVS (V3.1.0 and above), VM3D, or third-party software

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	20.6 W@24 VDC

Mechanical

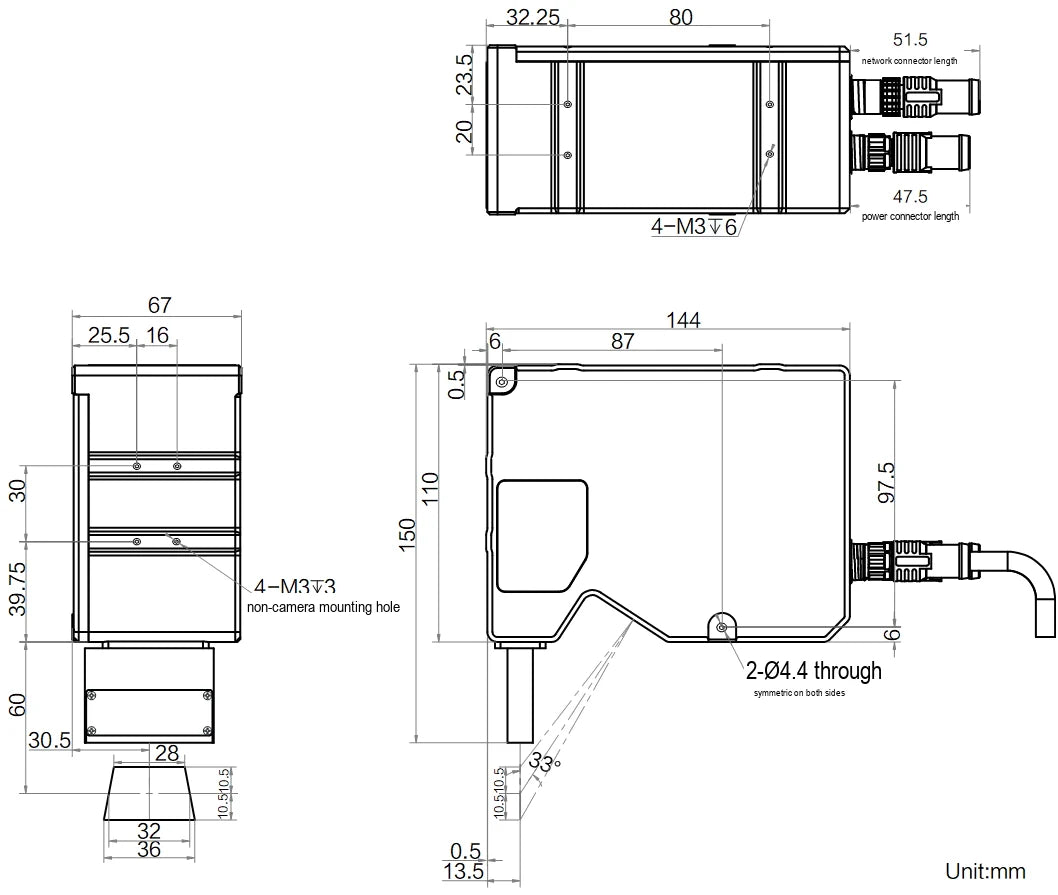

Dimension	144 mm × 150 mm × 67 mm
Weight	Approx. 1210 g
Shipping weight (estimated)	1.79 kg

Downloads

Features

High-frame-rate, high-resolution image sensor with large pixels
FPGA hardware acceleration, scan rate up to 49 kHz
Custom large-aperture lens for outstanding light sensitivity
Collimated output for a more uniform laser line
Optimized laser beam shaping for finer detail
Higher laser power density for wider dynamic range
