3D sensors

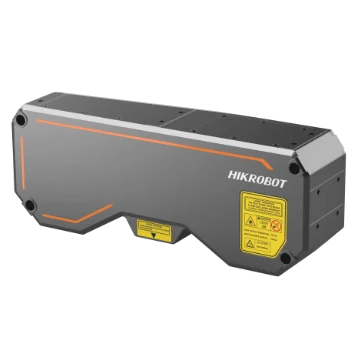

Binocular Single Line Series
- 12 models
- from $8,549.00
- Series HIK-BINOCULAR-SINGLE-LINE
The Binocular Single Line Series is a range of 12 3d sensors from Hikrobot, from $8,549.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Type
- Laser profiler
- Series
- Binocular Single Line series
Features
- Dual image sensor design eliminates blind spots and suppresses stray light
- Built-in high-precision 3D algorithm with sub-micron repeatability
- High-frame-rate image sensor with scan rates up to 10 kHz
- Multiple exposure modes for wider dynamic range
- Image fusion algorithm for more complete point cloud data
- Selectable filtering modes for more stable point cloud data
- High-frame-rate image sensor with scan rates up to 46.7 kHz
- High-frame-rate image sensor: scan rate up to 46.7 kHz
All 12 models in the Binocular Single Line Series
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-DP2060-01D V2.0 | 1.51 μm ~ 2.68 μm | 21 W@24 VDC | 240 mm × 98 mm × 58 mm | Class3R | $8,549.00quote | View |
| MV-DP2120-01D V2.0 | 3.90 μm ~ 7.56 μm | 21 W@24 VDC | 240 mm × 96.5 mm × 65 mm | Class3R | $8,549.00quote | View |
| MV-DP3060-01D | 1.45 μm ~ 2.17 μm | 21 W@24 VDC | 258 mm × 97.5 mm × 66 mm | Class3R | $12,379.00quote | View |
| MV-DP3062-01D | 0.86 μm ~ 1.14 μm | 21 W@24 VDC | 255 mm × 109 mm × 67 mm | 405 nm | $12,379.00quote | View |
| MV-DP3120-01D | 4.23 μm ~ 7.47 μm | 21 W@24 VDC | 258 mm × 96.5 mm × 66 mm | Class3R | $12,379.00quote | View |
| MV-DP3060-01D V2.0 | 1.51 μm ~ 2.68 μm | 28 W@24 VDC | 240 mm × 98 mm × 58 mm | Class3R | $12,379.00quote | View |
| MV-DP3062-01D V2.0 | 0.93 μm ~ 1.23 μm | 28 W@24 VDC | 255 mm × 109 mm × 67 mm | 405 nm | $12,379.00quote | View |
| MV-DP3120-01D V2.0 | 3.89 μm ~ 7.56 μm | 28 W@24 VDC | 240 mm × 96.5 mm × 65 mm | Class3R | $12,379.00quote | View |
| MV-PDCDY01 | 4.23 µm ~ 7.47 µm | 21 W@24 VDC | 258 mm × 96.5 mm × 66 mm | Class3R | $12,379.00quote | View |
| MV-PDCDY02 | 1.45 µm ~ 2.17 µm | 21 W@24 VDC | 258 mm × 97.5 mm × 66 mm | Class3R | $12,379.00quote | View |
| MIS-DP3600-10D | 1.51 µm ~ 2.68 µm | 28 W@24 VDC | 240 mm × 98 mm × 58 mm | Class3R | $12,379.00quote | View |
| MIS-DP3850-10D | 3.89 µm ~ 7.56 µm | 28 W@24 VDC | 240 mm × 96.5 mm × 65 mm | Class3R | $12,379.00quote | View |
