3D sensors

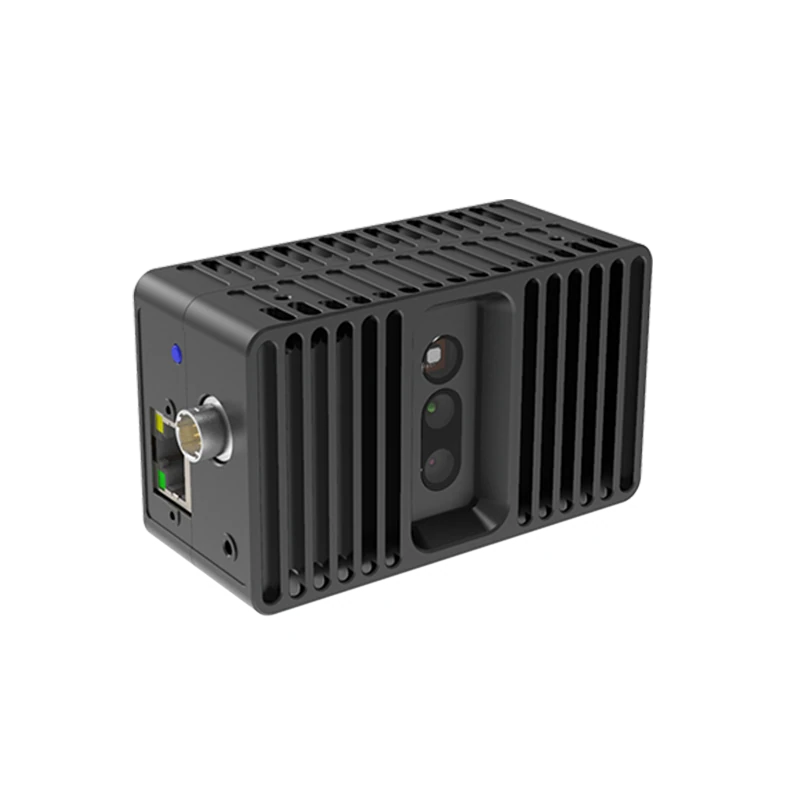

3D depth camera (LS-S3D-0001) (LS-S3D-S01)
- 5 models
- from $699.00
- Series LS-S3D-S01
The 3D depth camera (LS-S3D-0001) (LS-S3D-S01) is a range of 5 3d sensors from LumaSpec Vision, from $699.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Type
- Depth / ToF camera
Features
- Maximum range of single camera: 500mm*500mm*500mm.
- Up to 8 cameras online, maximum range: 2000mm*2000mm* 2000mm.
- State of use: static measurement.
- Upgraded SGBM algorithm with built-in hardware lSP.
- Match SDK and RVS software.
All 5 models in the 3D depth camera (LS-S3D-0001) (LS-S3D-S01)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-S3D-0001 | RJ45 | HR10A-7P-6S (HRS) | 0.1m-10m | 1.5W ~ 6.3W | $699.00 | View |
| LS-S3D-0004 | RJ45 | HR10A-7P-6S (HRS) | 0.3m-1.4m | 2.8W ~ 3.9W | $849.00 | View |
| LS-S3D-0002 | M12 X-Coding | 6 pin aviation interface | 0.7m-3.5m | 2.9W ~ 5.2W | $1,049.00 | View |
| LS-S3D-0005 | M12 X-Coding | 6-pin aviation plug | 0.7m-6m | 2.9W ~ 5.2W | $1,049.00 | View |
| LS-S3D-0003 | Gigabit Ethernet M12 X-Code aviation interface | 8 pin aviation interface | 0.4m-8m | 5.0W ~ 11.3W | $1,249.00 | View |
