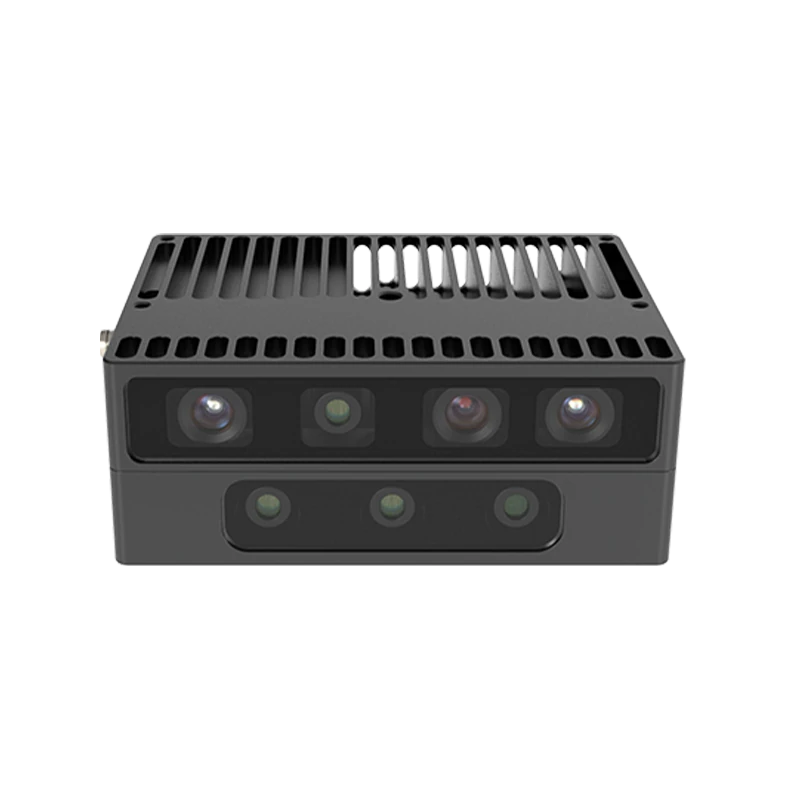

3D depth camera (LS-S3D-0002)
  • 3D depth camera (LS-S3D-0002)

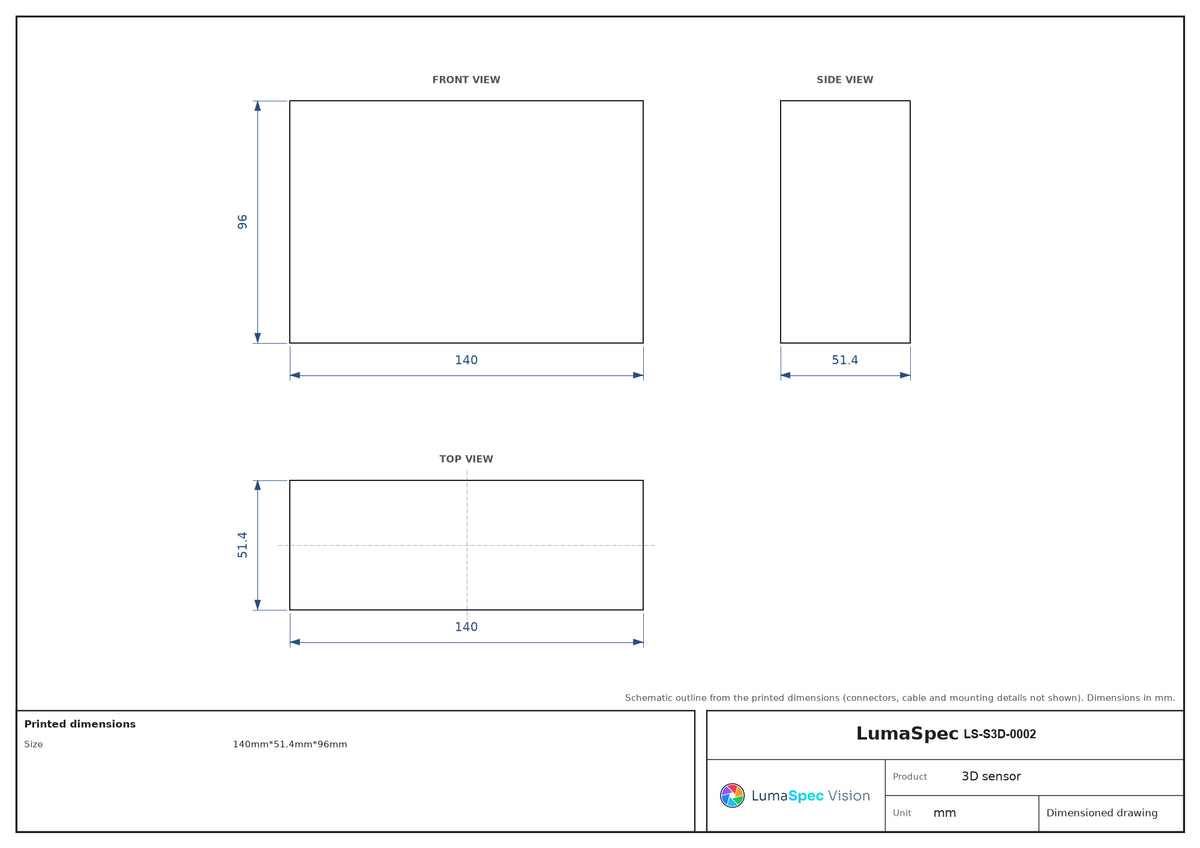

  • LS-S3D-0002 dimensions (mm)

3D sensors

3D depth camera (LS-S3D-0002)

Model LS-S3D-0002

  • Resolution1280*960
  • InterfaceM12 X-Coding
  • TypeDepth / ToF camera
  • Measurement range700 ~ 3500 mm
$1,049.00

Ships in 2-3 weeks

1.3 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3D depth camera (LS-S3D-0002)LS-S3D-0002

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-S3D-0002
Measurement range(mm)700 ~ 3500
FOV (H/V)60°/48°
Z Accuracy(mm)4.85mm@2000mm
X/Y Accuracy(mm)8.23mm@2000mm
Accuracy (Z)1.17mm@800mm;4.44mm@2000mm
Accuracy (X,Y)3.29mm@800mm;8.23mm@2000mm

Optics

Working distance0.7m-3.5m

Sensor and imaging

Depth resolution1280*960
RGB resolution1280*960

Interfaces and I/O

Power supply and trigger interface6 pin aviation interface
Data interfaceM12 X-Coding

Environment and compliance

TemperatureStorage:-10℃~55℃; Controls:0℃~45℃

Electrical

Power&Trigger6-pin aviation plug
Power supplyDC 24V / IEEE802.3af/at POE
Power consumption2.9W ~ 5.2W
Protection levelIP65
VoltageDC 24V / IEEE802.3af/at POE

Mechanical

Size140mm*51.4mm*96mm
Weight860g

Other models in the 3D depth camera (LS-S3D-0001) (LS-S3D-S01) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-S3D-0001 640*480 · RJ45 $699.00 Ships in 2-3 weeks View
LS-S3D-0004 1280*800 · RJ45 $849.00 Ships in 2-3 weeks View
LS-S3D-0005 1280*960 · M12 X-Coding $1,049.00 Ships in 2-3 weeks View
LS-S3D-0003 1280*960 · Depth / ToF camera $1,249.00 Ships in 2-3 weeks View
