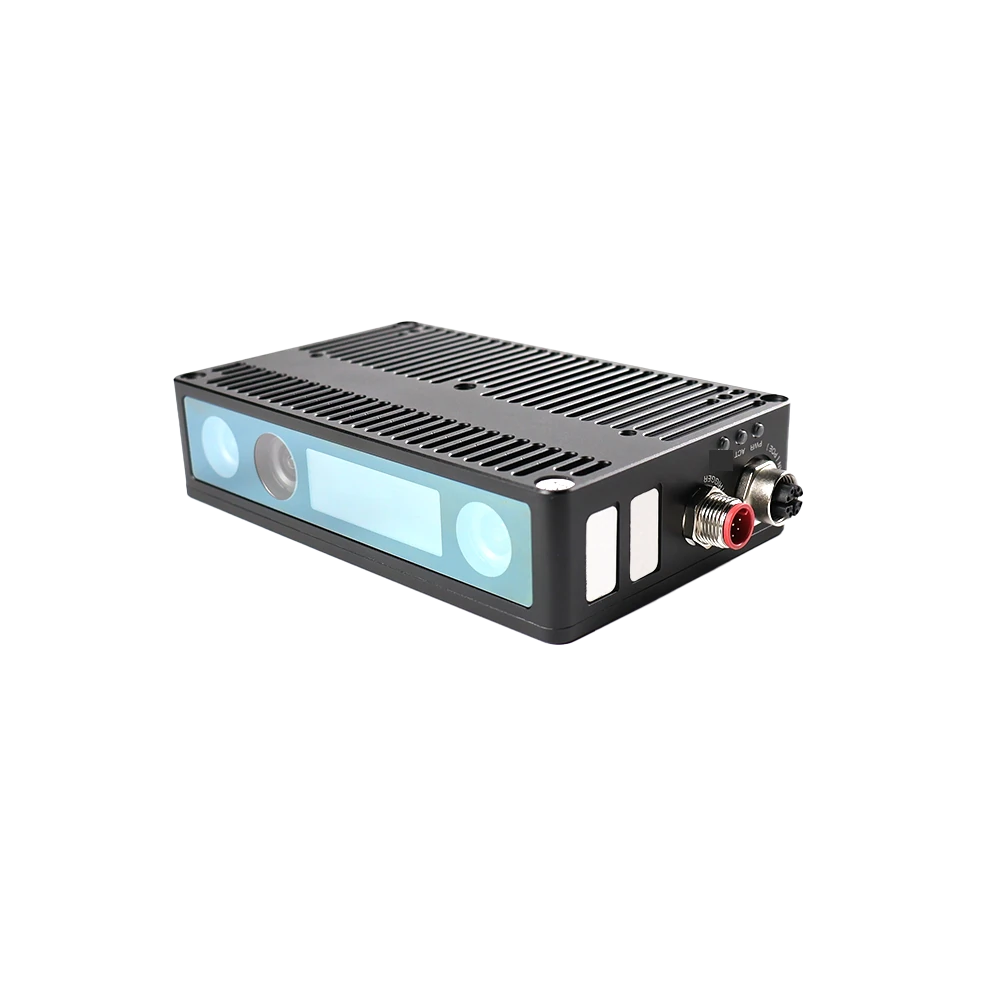

3D depth camera (LS-S3D-0003)
  • 3D depth camera (LS-S3D-0003)

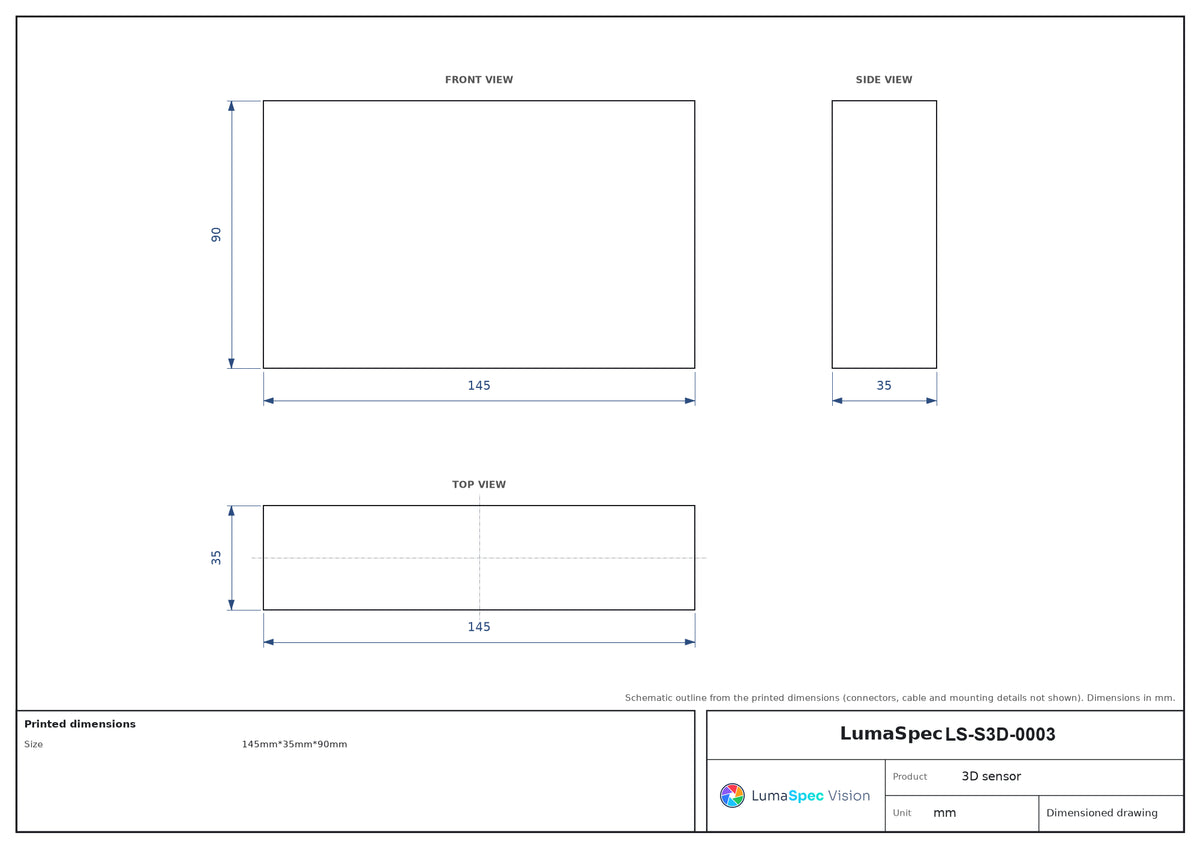

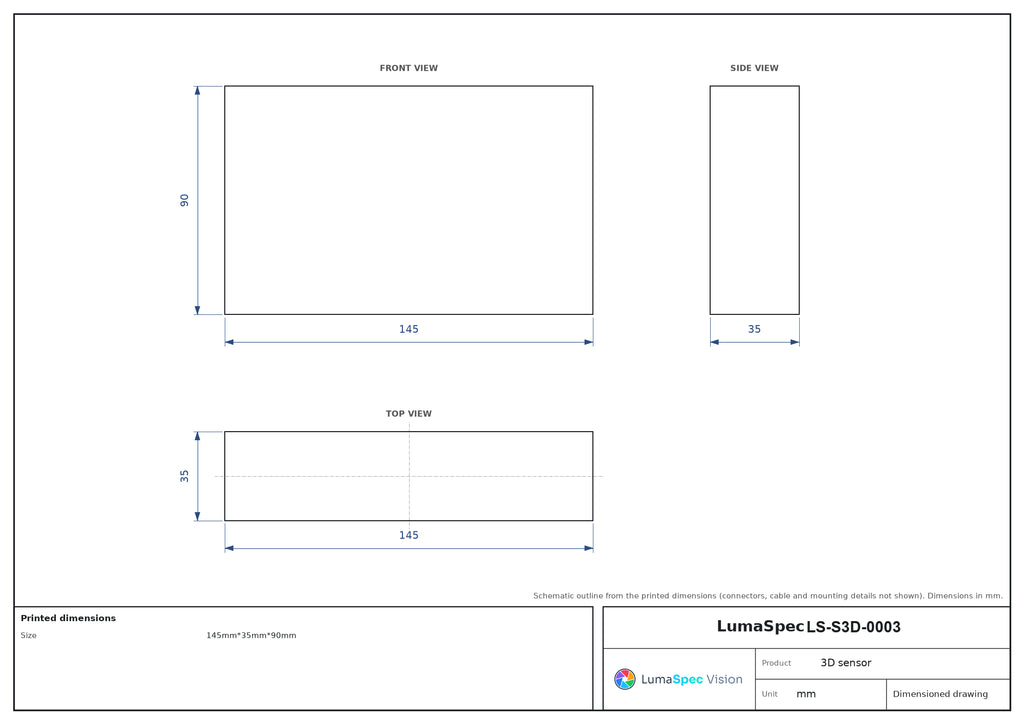

  • LS-S3D-0003 dimensions (mm)

3D sensors

3D depth camera (LS-S3D-0003)

Model LS-S3D-0003

  • Resolution1280*960
  • TypeDepth / ToF camera
  • Measurement range400 ~ 8000 mm
  • FOV (H/V)60°/48°
$1,249.00

Ships in 2-3 weeks

0.97 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3D depth camera (LS-S3D-0003)LS-S3D-0003

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-S3D-0003
Measurement range(mm)400 ~ 8000
FOV (H/V)60°/48°
Z Accuracy(mm)1.56mm@1000mm
X/Y Accuracy(mm)3.2mm@1000mm
Accuracy (Z)1.56mm@1000mm; 1.80mm@1500mm
Accuracy (X,Y)3.2mm@1000mm; 4.8mm@1500mm

Optics

Working distance0.4m-8m

Sensor and imaging

Depth resolution1280*960
RGB resolution2560*1920

Interfaces and I/O

Power supply and trigger interface8 pin aviation interface
Data interfaceGigabit Ethernet M12 X-Code aviation interface

Environment and compliance

TemperatureStorage:-20℃~55℃; Controls:-10℃~50℃

Electrical

Power&Trigger8-pin aviation plug
Power supplyDC 24V / IEEE802.3af/at PoE
Power consumption5.0W ~ 11.3W
Protection levelIP65
VoltageDC 24V / IEEE802.3af/at PoE

Mechanical

Size145mm*35mm*90mm
Weight620g
