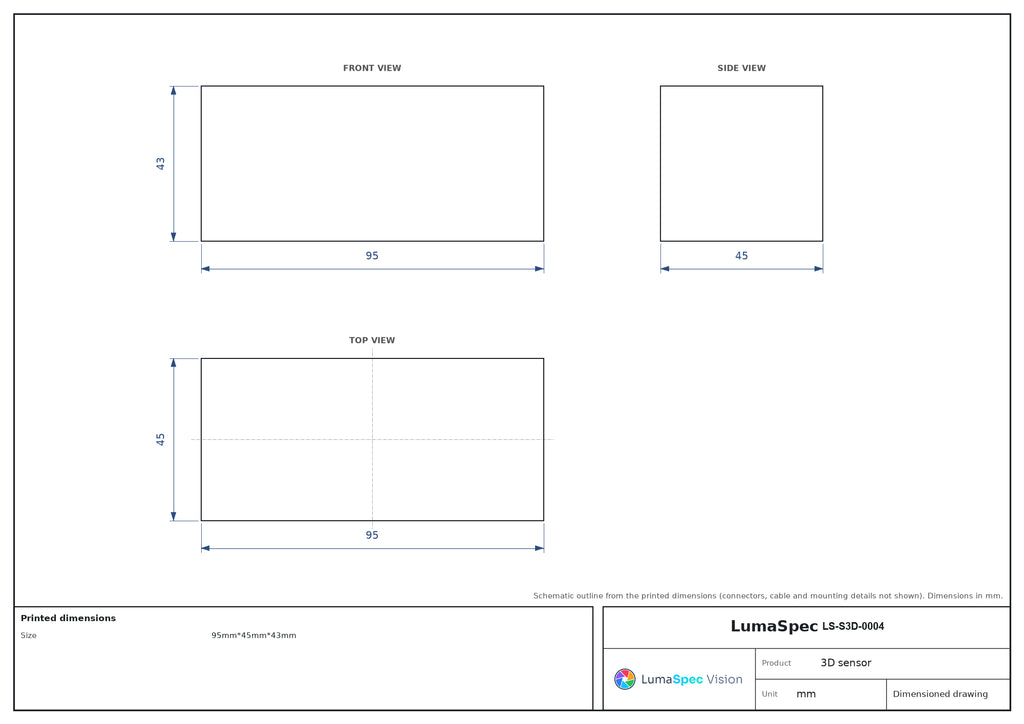

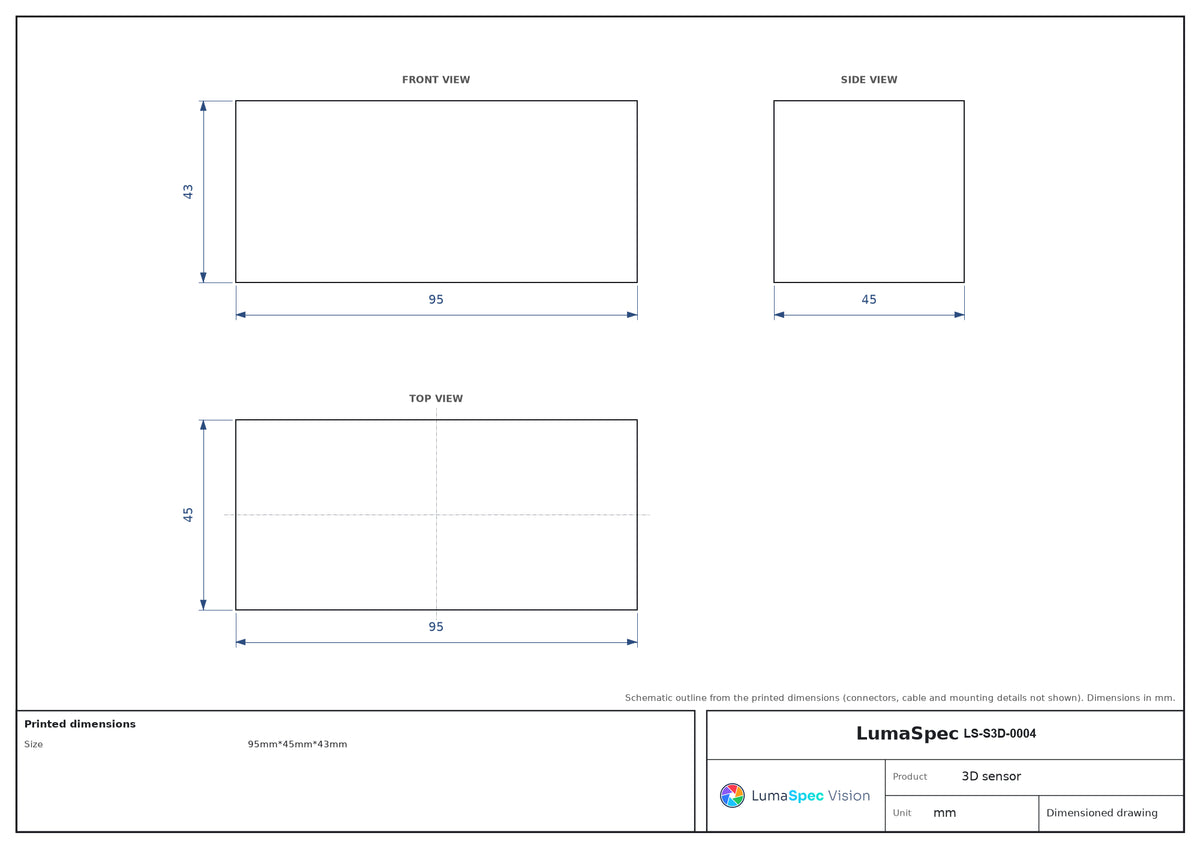

  • LS-S3D-0004 dimensions (mm)

3D sensors

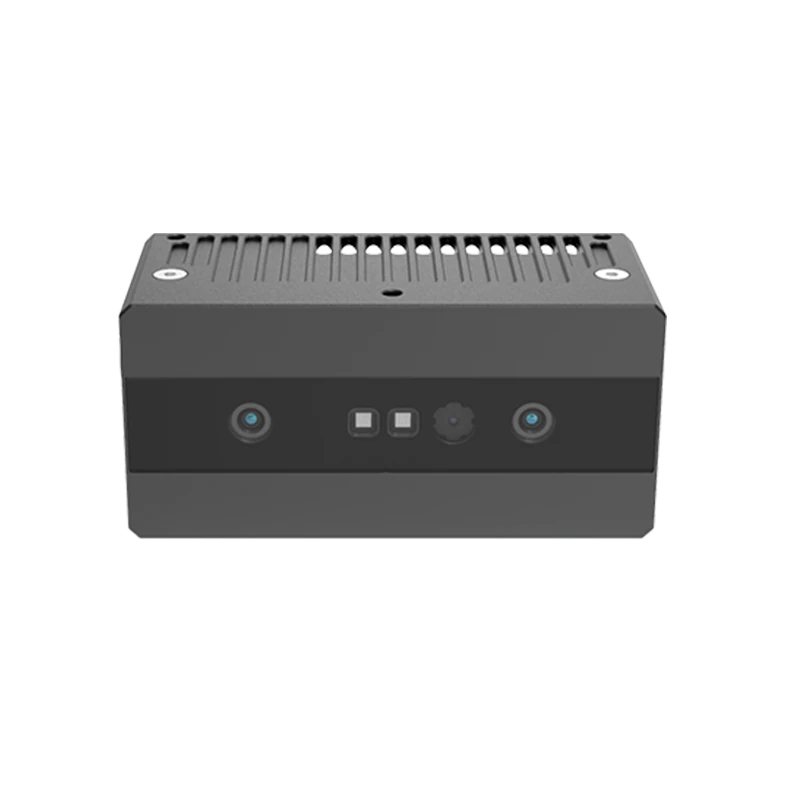

3D depth camera (LS-S3D-0004)

Model LS-S3D-0004

  • Resolution1280*800
  • InterfaceRJ45
  • TypeDepth / ToF camera
  • Measurement range300 ~ 1400 mm
$849.00

Ships in 2-3 weeks

0.42 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3D depth camera (LS-S3D-0004)LS-S3D-0004

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-S3D-0004
Measurement range(mm)300 ~ 1400
FOV (H/V)66°/44°
Z Accuracy(mm)1.73mm@700mm
X/Y Accuracy(mm)4.88mm@700mm
Accuracy (Z)1.73mm@1500mm
Accuracy (X,Y)4.88mm@1500mm

Optics

Working distance0.3m-1.4m

Sensor and imaging

Depth resolution1280*800
RGB resolution1920*1080

Interfaces and I/O

Power supply and trigger interfaceHR10A-7P-6S (HRS)
Data interfaceRJ45

Environment and compliance

TemperatureStorage:-10℃~55℃; Controls:0℃~45℃

Electrical

Power&TriggerHR10A-7P-6S (HRS)
Power supplyDC 12V / 24V
Power consumption2.8W ~ 3.9W
Protection levelIP41
VoltageDC 12V / 24V

Mechanical

Size95mm*45mm*43mm
Weight228g
