3D sensors

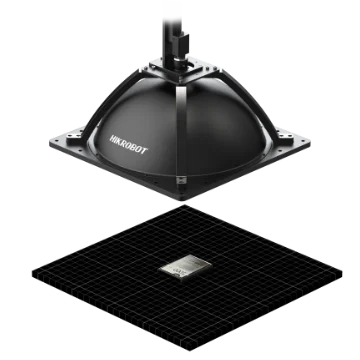

Dome Light 2.5D Inspection System
- 12 models
- price on request
- Series HIK-DOME-LIGHT-2-5D
The Dome Light 2.5D Inspection System is a range of 12 3d sensors from Hikrobot, price on request. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4K line, 5 MP, 8K line, 12.3 MP, 16K line, 26.2 MP
- Type
- 2.5D inspection
- Series
- Dome 2.5D Inspection System
Features
- 2.5D vision inspection system based on photometric stereo extracts surface relief features
- Effectively avoids interference from same-color features, matte materials and complex backgrounds; suited to defect inspection on matte and rough surfaces
- Dome light supports area-scan and line-scan modes for static and dynamic scanning
- The 2.5D system works with Vision Master software for simultaneous 2.5D imaging and defect recognition
All 12 models in the Dome Light 2.5D Inspection System
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-PSL-16K100-C4D50-WDM | 16K line | 16384 × 2 | 3.5 μm × 3.5 μm | Mono 8/10/12 | Price on request | View |
| MV-PSL-4K200-C4D50-WDM | 4K line | 4096 × 2 | 7 μm × 7 μm | Mono 8/10/12 | Price on request | View |
| MV-PSL-8K200-C4D30-WDM | 8K line | 8192 × 2 | 7 μm × 7 μm | Mono 8/10/12 | Price on request | View |
| MV-PSL-8K200-C4D50-WDM | 8K line | 8192 × 2 | 7 μm × 7 μm | Mono 8/10/12 | Price on request | View |
| MV-PSL-16K100-C4D30-WDM | 16K line | 16384 × 2 | 3.5 μm × 3.5 μm | Mono 8/10/12 | Price on request | View |
| MV-PSA-05UM-C4D30-WDM | 5 MP | 2448 × 2048 | 3.45 μm × 3.45 μm | Mono 8/10/10Packed/12/12Packed | Price on request | View |
| MV-PSA-12UM-C4D30-WDM | 12.3 MP | 4096 × 3000 | 3.45 μm × 3.45 μm | Mono 8/10/10Packed/12/12Packed | Price on request | View |
| MV-PSA-25UM-C4D30-WDM | 26.2 MP | 5120 × 5120 | 2.5 μm × 2.5 μm | Mono 8/10/10Packed/12/12Packed | Price on request | View |
| MV-PSA-12GM-C4D30-WDM | 12.3 MP | 4096 × 3000 | 3.45 μm × 3.45 μm | Mono 8/10/10Packed/12/12Packed | Price on request | View |
| MV-PSA-25GM-C4D30-WDM | 26.2 MP | 5120 × 5120 | 2.5 μm × 2.5 μm | Mono 8/10/10Packed/12/12Packed | Price on request | View |
| MV-PSA-05GM-C4D30-WDM | 5 MP | 2448 × 2048 | 3.45 μm × 3.45 μm | Mono 8/10/10Packed/12/12Packed | Price on request | View |
| MV-PSL-4K200-C4D30-WDM | 4K line | 4096 × 2 | 7 μm × 7 μm | Mono 8/10/12 | Price on request | View |
