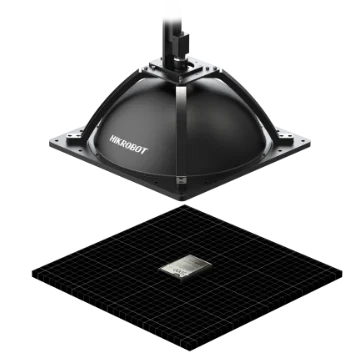

Hikrobot MV-PSL-4K200-C4D30-WDM Dome-light vision inspection system, Resolution 4K, 300 mm dome light, White light

Model MV-PSL-4K200-C4D30-WDMHikrobot

Resolution4096 × 2
Speed195 kHz(1-Line), 100 kHz(2-TDI)
Mono / colourMono
Pixel size7 μm × 7 μm

Price on request

Ships in 2-3 weeks

2.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse 3D sensors

MV-PSL-4K200-C4D30-WDM: resolution 4096 x 2, pixel size 7 µm x 7 µm, transmission interface LC fiber port.

Hikrobot MV-PSL-4K200-C4D30-WDM Dome-light vision inspection system, Resolution 4K, 300 mm dome light, White light. 2.5D vision inspection system based on photometric stereo extracts surface relief features Effectively avoids interference from same-color features, matte materials and complex backgrounds; suited to defect inspection on matte and rough surfaces

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-PSL-4K200-C4D30-WDM
Brand	Hikrobot

Sensor and imaging

Pixel size	7 μm × 7 μm
Resolution	4096 × 2
Max. line rate	195 kHz(1-Line), 100 kHz(2-TDI)
Mono/color	Mono
Pixel format	Mono 8/10/12

Interfaces and I/O

Transmission interface	LC fiber port
Communication	GigE

Light

Emitting area dimension	400 mm × 400 mm
Color	White

Mechanical

Dimension	550 mm × 550 mm × 395 mm
Shipping weight (estimated)	2.20 kg

Downloads

Datasheet (PDF, Chinese)MV-PSL-4K200-C4D30-WDM · 403 KB

Features

2.5D vision inspection system based on photometric stereo extracts surface relief features
Effectively avoids interference from same-color features, matte materials and complex backgrounds; suited to defect inspection on matte and rough surfaces
Dome light supports area-scan and line-scan modes for static and dynamic scanning
The 2.5D system works with Vision Master software for simultaneous 2.5D imaging and defect recognition

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Dome Light 2.5D Inspection System series

See all 12 models

Model	Resolution	Speed	Pixel size	Price	Availability	Link
MV-PSL-4K200-C4D30-WDMThis model	4096 × 2	195 kHz(1-Line), 100 kHz(2-TDI)	7 μm × 7 μm	On request	Ships in 2-3 weeks	Compare
MV-PSL-16K100-C4D50-WDM	16384 × 2		3.5 μm × 3.5 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSL-4K200-C4D50-WDM	4096 × 2	195 kHz(1-Line), 100 kHz(2-TDI)	7 μm × 7 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSL-8K200-C4D30-WDM	8192 × 2	200 kHz	7 μm × 7 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSL-8K200-C4D50-WDM	8192 × 2	200 kHz	7 μm × 7 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSL-16K100-C4D30-WDM	16384 × 2		3.5 μm × 3.5 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSA-05UM-C4D30-WDM	2448 × 2048	74.1 fps @ 2448 × 2048 Mono 8	3.45 μm × 3.45 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSA-12UM-C4D30-WDM	4096 × 3000	30.7 fps @ 4096 × 3000 Mono 8	3.45 μm × 3.45 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSA-25UM-C4D30-WDM	5120 × 5120	14 fps @ 5120 × 5120 Mono 8	2.5 μm × 2.5 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSA-12GM-C4D30-WDM	4096 × 3000	9.5 fps @ 4096 × 3000 Mono 8	3.45 μm × 3.45 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSA-25GM-C4D30-WDM	5120 × 5120	4.5 fps @ 5120 × 5120 Mono 8	2.5 μm × 2.5 μm	On request	Ships in 2-3 weeks	CompareView
MV-PSA-05GM-C4D30-WDM	2448 × 2048	74.1 fps @ 2448 × 2048 Mono 8	3.45 μm × 3.45 μm	On request	Ships in 2-3 weeks	CompareView
