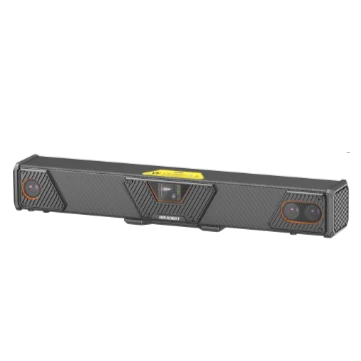

DLS Series Binocular Structured Light Stereo Camera

3D sensors

DLS Series Binocular Structured Light Stereo Camera

  • 10 models
  • from $16,579.00
  • Series HIK-DLS-BINOCULAR-STRUCTURED

The DLS Series Binocular Structured Light Stereo Camera is a range of 10 3d sensors from Hikrobot, from $16,579.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 10 models Series datasheet (PDF)

The series at a glance

Sizes / versions
6.2 MP, 6.3 MP, 11.9 MP, 12 MP
Type
Stereo / structured light
Series
DLS series

Features

  • Custom optical system for excellent image quality
  • Highly uniform laser for complete, detailed point clouds
  • Multi-core parallel processing architecture for high efficiency
  • Synchronized, aligned RGB and depth maps for fast, easy secondary development
  • High-strength carbon fiber design for high stability
  • Extra-wide field of view for long-distance applications
  • Lightweight design: small size, high stability, flexible installation
  • Laser galvanometer scanning for sub-millimeter image acquisition accuracy

All 10 models in the DLS Series Binocular Structured Light Stereo Camera

Link
MV-FA141511.9 MP3200 mm × 2800 mm@3500 mm1360 mm × 1200 mm@1500 mm2200 mm × 2000 mm@2500 mmPrice on requestView
MV-3DWXQ1-SX6-1411.9 MP3200 mm × 2800 mm@3500 mm1360 mm × 1200 mm@1500 mm2200 mm × 2000 mm@2500 mmPrice on requestView
MV-3DWXQ1-SX6-36.2 MP620 mm × 440 mm@800 mm280 mm × 220 mm@400 mm480 mm × 320 mm@600 mmPrice on requestView
MV-3DWXQ1-SX6-66.2 MP1220 mm × 1000 mm@2200 mm640 mm × 600 mm@1200 mm1100 mm × 900 mm@1800 mmPrice on requestView
MV-DLS1400P12 MP3300 mm× 2700 mm1400 mm × 1200 mm$16,579.00quoteView
MV-DLS300P-046.2 MP620 mm × 440 mm@800 mm280 mm × 220 mm@400 mm480 mm × 320 mm@600 mm$16,579.00quoteView
MV-DLS400P-086.2 MP720 mm × 580 mm@1200 mm430 mm × 380 mm@800 mm570 mm × 480 mm@1000 mm$16,579.00quoteView
MV-DLS1400M-1511.9 MP3200 mm × 2800 mm@3500 mm1360 mm × 1200 mm@1500 mm2200 mm × 2000 mm@2500 mm$16,579.00quoteView
MV-DLS600P6.3 MP1220 mm× 960 mm580 mm × 520 mm$20,599.00quoteView
MV-DLS600P-126.2 MP1220 mm × 1000 mm@2200 mm640 mm × 600 mm@1200 mm1100 mm × 900 mm@1800 mm$20,599.00quoteView
