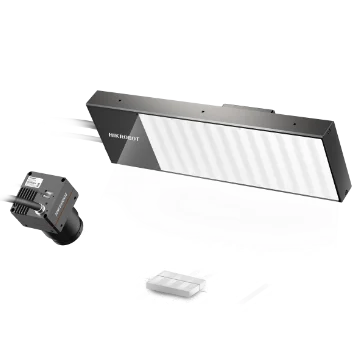

Line Scan 2.5D Inspection System

3D sensors

Line Scan 2.5D Inspection System

  • 21 models
  • price on request
  • Series HIK-LINE-SCAN-2-5D

The Line Scan 2.5D Inspection System is a range of 21 3d sensors from Hikrobot, price on request. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 21 models Series datasheet (PDF)

The series at a glance

Sizes / versions
4K line, 8K line, 16K line
Type
2.5D inspection
Series
Line Scan 2.5D Inspection System

Features

  • A single shot outputs multiple result images, precisely detecting small bumps and dents, fine scratches, dirt, foreign matter, dull spots and other defects for combined inspection
  • Effectively removes background interference and surface glare, sensitively capturing surface depth variations; suited to defect inspection on highly reflective and transparent objects
  • The 2.5D system works with the Vision Master algorithm development platform for simultaneous 2.5D imaging and defect recognition
  • Senses camera and light orientation and outputs angle values for faster setup

All 21 models in the Line Scan 2.5D Inspection System

Link
MV-HLVS-8K200-L308K line8192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-16K100-L3016K line16384 × 2XoFLink3.5 μm × 3.5 μmPrice on requestView
MV-HLVS-4K200-L304K line4096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-8K100-L308K line8192 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-8K100-L158K line8192 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-4K200-L154K line4096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-8K200-L158K line8192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-16K100-L1516K line16384 × 2XoFLink3.5 μm × 3.5 μmPrice on requestView
MV-HLVS-8K100-L608K line8192 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-8K200-L608K line8192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-16K100-L6016K line16384 × 2XoFLink3.5 μm × 3.5 μmPrice on requestView
MV-HLVS-4K200-L604K line4096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-4K200-L15-IR4K line4096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-4K200-L30-IR4K line4096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-8K200-L15-IR8K line8192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-8K200-L30-IR8K line8192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-4K200-L60-C34096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-4K200-L60-C24096 × 2Camera Link7 μm × 7 μmPrice on requestView
MV-HLVS-8K200-L30-GY8192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-8K200-L60-C28192 × 2XoFLink7 μm × 7 μmPrice on requestView
MV-HLVS-16K100-L60-C216384 × 2XoFLink3.5 μm × 3.5 μmPrice on requestView
