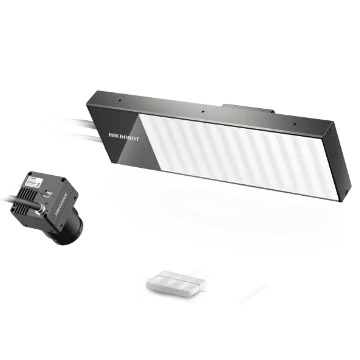

Hikrobot MV-HLVS-8K200-L30 Line-scan 2.5D, 8K resolution, Sampling rate 200 kHz, Emitting area length 300 mm

3D sensors

Hikrobot MV-HLVS-4K200-L60-C2 Line-scan 2.5D, Sampling rate 4k, Line rate 195 kHz, Emitting surface length 600 mm, Includes two cameras

Model MV-HLVS-4K200-L60-C2Hikrobot

Resolution4096 × 2
Speed195 kHz
Mono / colourMono
Pixel size7 μm × 7 μm

Price on request

Ships in 2-3 weeks

2.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-HLVS-4K200-L60-C2 Line-scan 2.5D, Sampling rate 4k, Line rate 195 kHz, Emitting surface length 600 mm, Includes two cameras. A single shot outputs multiple result images, precisely detecting small bumps and dents, fine scratches, dirt, foreign matter, dull spots and other defects for combined inspection Effectively removes background interference and surface glare, sensitively capturing surface depth variations; suited to defect inspection on highly reflective and transparent objects

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-HLVS-4K200-L60-C2
Brand	Hikrobot
Number of cameras	2

Sensor and imaging

Pixel size	7 μm × 7 μm
Resolution	4096 × 2
Max. line rate	195 kHz
Mono/color	Mono
Pixel format	Mono 8

Interfaces and I/O

Transmission interface	Camera Link
Communication	GigE

Light

Emitting area dimension	590 mm x 100 mm
Color	White

Mechanical

Dimension	758 mm x 122 mm x 56.2 mm
Shipping weight (estimated)	2.20 kg

Downloads

Datasheet (PDF, Chinese)MV-HLVS-4K200-L60-C2 · 472 KB

Features

A single shot outputs multiple result images, precisely detecting small bumps and dents, fine scratches, dirt, foreign matter, dull spots and other defects for combined inspection
Effectively removes background interference and surface glare, sensitively capturing surface depth variations; suited to defect inspection on highly reflective and transparent objects
The 2.5D system works with the Vision Master algorithm development platform for simultaneous 2.5D imaging and defect recognition

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
