DP3000 Series

3D sensors

DP3000 Series

  • 26 models
  • from $12,379.00
  • Series HIK-DP3000

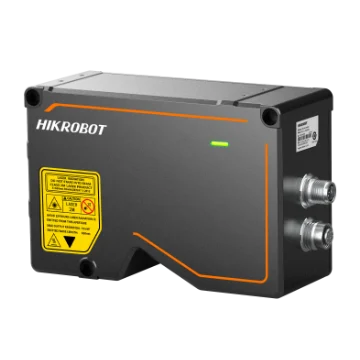

The DP3000 Series is a range of 26 3d sensors from Hikrobot, from $12,379.00. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 26 models Series datasheet (PDF)

The series at a glance

Type
Laser profiler
Series
DP3000 series

Features

  • Built-in high-precision measurement algorithm with sub-micron accuracy
  • High-frame-rate sensor with scan rates up to 46.7 kHz
  • Multiple exposure modes for greater robustness
  • Multi-frame fusion algorithm for more complete contours
  • Selectable filtering modes for more stable data
  • ROI selection and one-click setup for easy operation
  • Built-in high-accuracy algorithm and accuracy is up to submicron level.
  • Adopts high frame rate chip with 46.7 kHz scan frame rate.

All 26 models in the DP3000 Series

Link
MV-HK120EDU/AA4.38 ~ 8.33 μm17.2 W@24 VDCClass3R86 mmPrice on requestView
MV-DP3020-01P V2.00.71 μm to 0.78 μmTyp. 17.2 W @ 24 VDCClass 3R6.8 mm$12,379.00quoteView
MV-DP3060-01P V2.01.74 μm to 3.07 μmTyp. 17.2 W @ 24 VDCClass 3R27 mm$12,379.00quoteView
MV-DP3060-03P V2.01.74 μm to 3.07 μmTyp. 17.2 W @ 24 VDCClass 3B27 mm$12,379.00quoteView
MV-DP3062-01P V2.00.94 μm to 1.22 μmTyp. 17.2 W @ 24 VDCClass 3B11 mm$12,379.00quoteView
MV-DP3120-01P V2.04.38 μm to 8.33 μmTyp. 17.2 W @ 24 VDCClass 3R86 mm$12,379.00quoteView
MV-DP3120-03P V2.04.38 μm to 8.33 μmTyp. 17.2 W @ 24 VDCClass 3R86 mm$12,379.00quoteView
MV-DP3300-01P V2.09.36 μm to 26.27 μmTyp. 17.2 W @ 24 VDCClass 3R210 mm$12,379.00quoteView
MV-DP3300-03P V2.09.36 μm to 26.27 μmTyp. 17.2 W @ 24 VDCClass 3R210 mm$12,379.00quoteView
MV-DP3580-01P V2.014.45 μm to 98.78 μmTyp. 17.2 W @ 24 VDCClass 3B580 mm$12,379.00quoteView
MV-DP3580-03P V2.014.45 μm to 98.78 μmTyp. 17.2 W @ 24 VDCClass 3R580 mm$12,379.00quoteView
MV-DP3900-03P V2.023.04 μm to 185.06 μmTyp. 17.2 W @ 24 VDCClass 3R905 mm$12,379.00quoteView
MV-DP3023-01P V2.00.56 ~ 0.82 μm15.1 W@24 VDC405 nm7.8 mm$12,379.00quoteView
MIS-DP3850-01P4.38 ~ 8.33 μm17.2 W@24 VDCClass3R86 mm$12,379.00quoteView
MIS-DP3200-01P0.71 ~ 0.78 μm17.2 W@24 VDCClass3R6.8 mm$12,379.00quoteView
MIS-DP3003-01P9.36 ~ 26.27 μm17.2 W@24 VDCClass3R210 mm$12,379.00quoteView
MIS-DP3600-10P1.74 ~ 3.07 μm17.2 W@24 VDCClass 227 mm$12,379.00quoteView
MV-DP3050-01P V2.01.58 ~ 1.74 μm17.2 W@24 VDC405 nm6 mm$12,379.00quoteView
MV-DP3061-01P V2.02.71 ~ 3.26 μm17.2 W@24 VDCClass 3B10.4 mm$12,379.00quoteView
MV-DP3080-01P V2.03.77 ~ 4.54 μm17.2 W@24 VDCClass 3R15.2 mm$12,379.00quoteView
MV-DP3140-01P V2.06.38 ~ 7.09 μm17.2 W@24 VDCClass 3R26 mm$12,379.00quoteView
MV-DP3240-01P V2.06.47 ~ 26.11 μm17.2 W@24 VDCClass 3R200 mm$12,379.00quoteView
MV-DP3240-03P V2.06.47 ~ 26.11 μm17.2 W@24 VDCClass 3R200 mm$12,379.00quoteView
MV-DP3470-01P V2.010.39 ~ 169.79 μm17.2 W@24 VDCClass 3B670 mm$12,379.00quoteView
MV-DP3470-03P V2.010.39 ~ 169.79 μm17.2 W@24 VDCClass 3R670 mm$12,379.00quoteView
MV-DP3060-01PS1.74 ~ 3.07 μm17.2 W@24 VDCClass 3R27 mm$12,379.00quoteView
