3D sensors

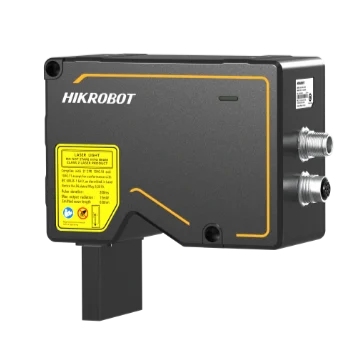

Hikrobot MV-DP3060-01PS 3D laser line profile sensor

Model MV-DP3060-01PSHikrobot

TypeLaser profiler
Data points/profile3200
Reference distance62 mm
Profile data interval9.3 ~ 13.2 μm

$12,379.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

1.36 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DP3060-01PS 3D laser line profile sensor. Built-in high-precision measurement algorithm with sub-micron accuracy High-frame-rate sensor with scan rates up to 46.7 kHz

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP3060-01PS
Brand	Hikrobot
Data points/profile	3200
Reference distance	62 mm
Measurement range (Z-axis)	27 mm
Measurement range (X-axis)	30 mm @ near end; 31 mm @ reference distance; 32 mm @ far end
Profile data interval	9.3 ~ 13.2 μm
Laser safety class	Class 3R
Repeatability (Z-axis)*	0.56 μm @ sensor measuring standard gauge blocks on an optical table1
Linearity Z-axis (±% of MR)	0.01

Sensor and imaging

Scan frame rate	3.4 kHz to 46.7 kHz (high frame rate mode)
Resolution (Z-axis)	1.74 ~ 3.07 μm

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 interface provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Client software	3DMVS, VM3D, or third-party software

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Original image, profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	17.2 W@24 VDC

Mechanical

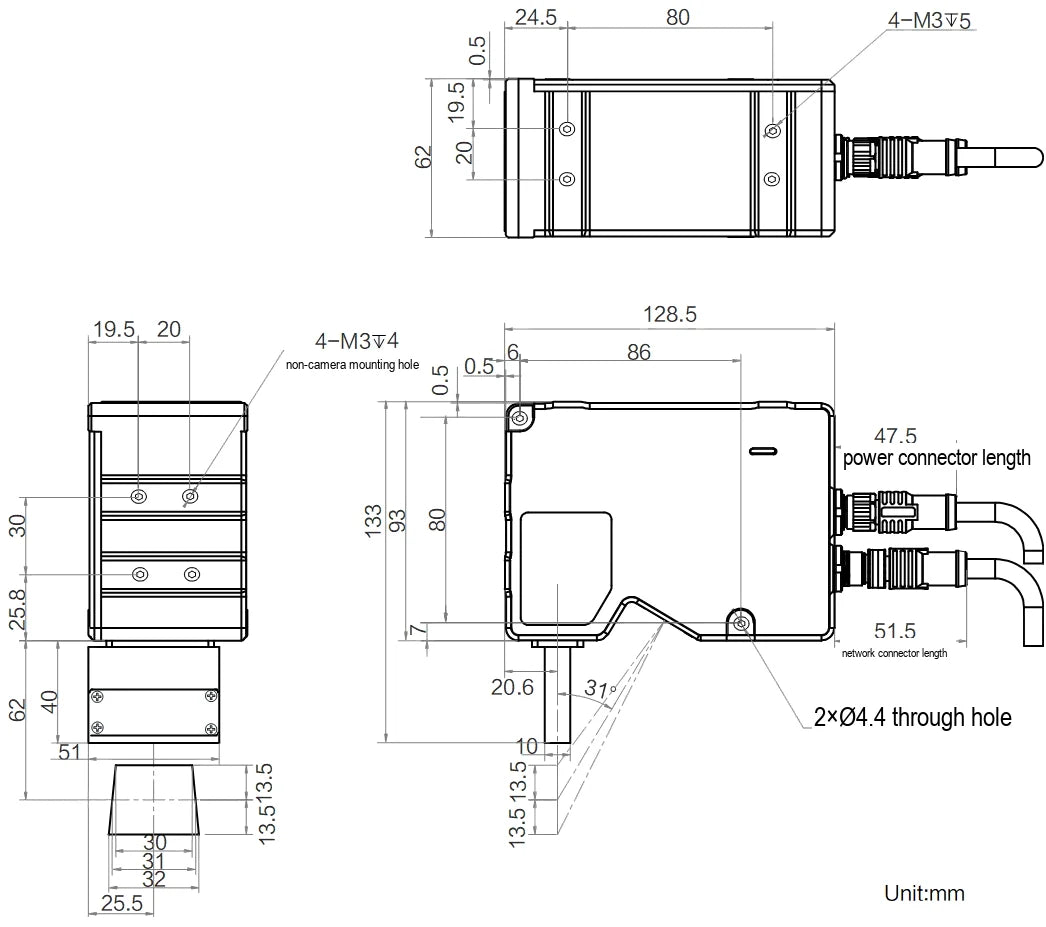

Dimension	128.5 mm × 133 mm × 62 mm
Weight	Approx. 900 g (2.0 lb.)
Shipping weight (estimated)	1.36 kg

Downloads

Features

Built-in high-precision measurement algorithm with sub-micron accuracy
High-frame-rate sensor with scan rates up to 46.7 kHz
ROI selection and one-click setup for easy operation
Collimated output for a more uniform laser line
Optimized laser beam shaping for finer detail
Higher laser power density for wider dynamic range
