Hikrobot MV-DP3060-03P V2.0 3D Laser Profile Sensor

Model MV-DP3060-03P V2.0Hikrobot

TypeLaser profiler
Data points/profile3200
Reference distance62 mm
Resolution (Z-axis)1.74 μm to 3.07 μm

Longest laser wavelength of the 26 models in its series: 660 nm (shared with 1 other model) (series: 405 nm to 660 nm)

$12,379.00

List price

Ships in 2-3 weeks

1.29 kg shipping weight

Not available in the United States. Available for delivery to other countries.

MV-DP3060-03P V2.0: measurement range (z-axis) 27 mm, reference distance 62 mm, resolution (z-axis) 1.74 µm to 3.07 µm, profile data interval 9.3 µm to 13.2 µm, laser wavelength 660 nm.

Hikrobot MV-DP3060-03P V2.0 3D Laser Profile Sensor. Built-in high-accuracy algorithm and accuracy is up to submicron level. Adopts high frame rate chip with 46.7 kHz scan frame rate.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DP3060-03P V2.0
Brand	Hikrobot
Data points/profile	3200
Reference distance	62 mm
Measurement range (Z-axis)	27 mm
Measurement range (X-axis)	30 mm @ near field of view; 35 mm @ reference distance; 40 mm @ far field of view
Repeatability (Z-axis)	0.56 μm @ data that sensor tests gauge block on optical platform1
Linearity Z-axis (±% of MR)	0.01
Profile data interval	9.3 μm to 13.2 μm
Laser safety class	Class 3B

Sensor and imaging

Resolution (Z-axis)	1.74 μm to 3.07 μm
Scan frame rate	3.4 kHz to 46.7 kHz (high frame rate mode2)

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/9), differential input × 2 (Line 3/6), and differential output × 1 (Line 1)
Client software	3DMVS, VM3D, or third-party software

Light

Laser wavelength	660 nm

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 85% RH (no condensation)

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended)

Electrical

Data output	Original image, profile data, depth image, brightness image
Trigger mode	Software trigger, hardware trigger (differential encoder)
Power supply	24 VDC
Power consumption	Typ. 17.2 W @ 24 VDC

Mechanical

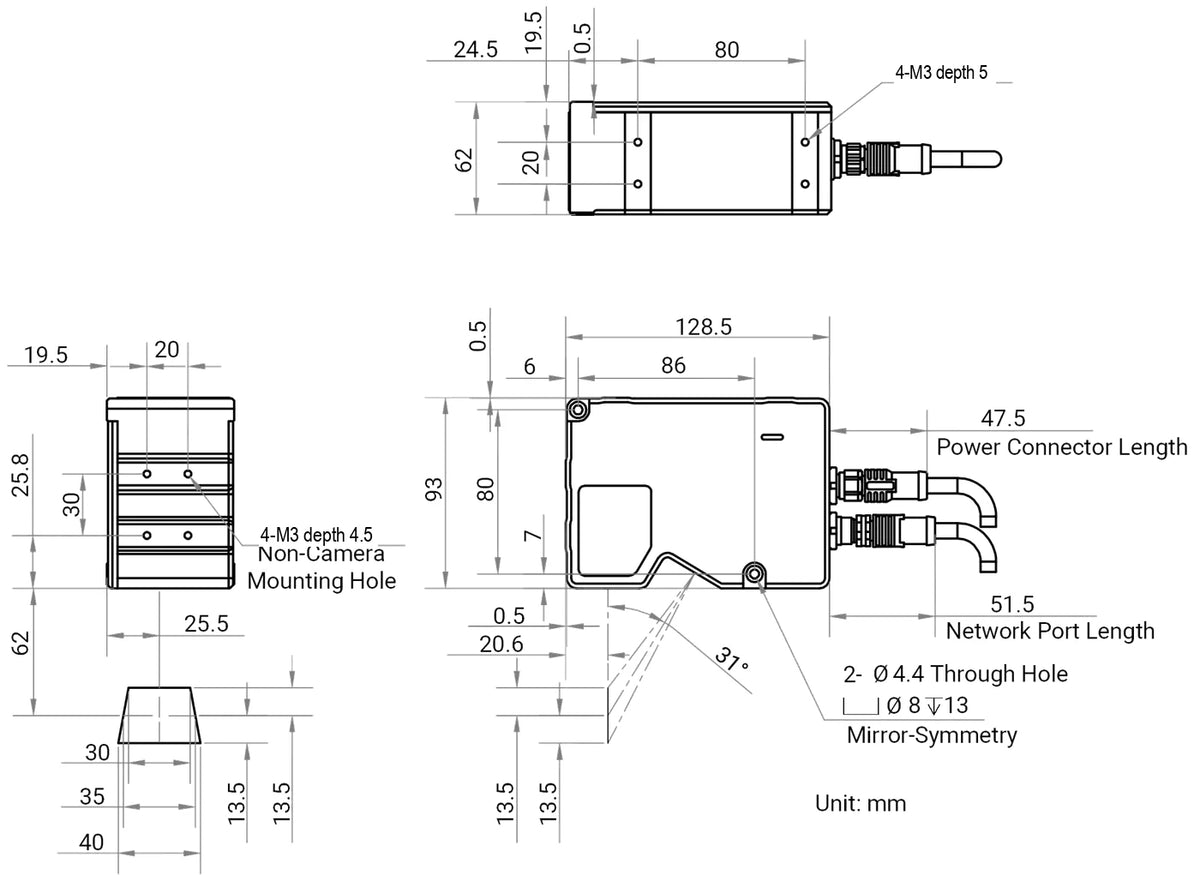

Dimension	128.5 mm × 93 mm × 62 mm (5.1" × 3.7" × 2.4")
Weight	Approx. 850 g (1.9 lb.)
Shipping weight (estimated)	1.29 kg

Downloads

Features

Built-in high-accuracy algorithm and accuracy is up to submicron level.
Adopts high frame rate chip with 46.7 kHz scan frame rate.
Supports multiple exposure modes with good robustness.
Adopts multiple-frame integration technology to provide complete profiles.
Provides multiple filter modes with stable data.
Supports ROI selection and auto setting for easier operation.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the DP3000 series

See all 26 models

Longest laser wavelength of the 26 models in its series: 660 nm (shared with 1 other model) (series: 405 nm to 660 nm)

Model	Reference distance	Resolution (Z-axis)	Price	Availability	Link
MV-DP3060-03P V2.0This model	62 mm	1.74 μm to 3.07 μm	$12,379.00 Quote	Ships in 2-3 weeks	Compare
MV-HK120EDU/AA	126 mm		On request	Ships in 2-3 weeks	CompareView
MV-DP3020-01P V2.0	21.4 mm	0.71 μm to 0.78 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3060-01P V2.0	62 mm	1.74 μm to 3.07 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3062-01P V2.0	61.5 mm	0.94 μm to 1.22 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3120-01P V2.0	126 mm	4.38 μm to 8.33 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3120-03P V2.0	126 mm	4.38 μm to 8.33 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3300-01P V2.0	300 mm	9.36 μm to 26.27 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3300-03P V2.0	300 mm	9.36 μm to 26.27 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3580-01P V2.0	585 mm		$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3580-03P V2.0	585 mm	14.45 μm to 98.78 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3900-03P V2.0	947.5 mm	23.04 μm to 185.06 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3023-01P V2.0	23.3 mm	0.56 ~ 0.82 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MIS-DP3850-01P	126 mm	4.38 ~ 8.33 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MIS-DP3200-01P	21.4 mm	0.71 ~ 0.78 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MIS-DP3003-01P	300 mm	9.36 ~ 26.27 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MIS-DP3600-10P	62 mm	1.74 ~ 3.07 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3050-01P V2.0	47 mm	1.58 ~ 1.74 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3061-01P V2.0	60.2 mm	2.71 ~ 3.26 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3080-01P V2.0	80.2 mm	3.77 ~ 4.54 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3140-01P V2.0	141 mm		$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3240-01P V2.0	245 mm	6.47 ~ 26.11 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3240-03P V2.0	245 mm	6.47 ~ 26.11 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3470-01P V2.0	565 mm	10.39 ~ 169.79 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
MV-DP3470-03P V2.0	565 mm	10.39 ~ 169.79 μm	$12,379.00 Quote	Ships in 2-3 weeks	CompareView
