3D sensors

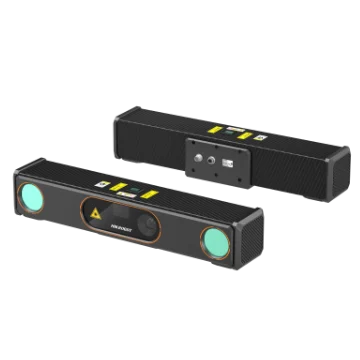

Hikrobot MV-DLS1400P Laser galvanometer stereo camera

Model MV-DLS1400PHikrobot

InterfaceGigabit Ethernet(1000Mbit/s)
Speed1 fps
TypeStereo / structured light
Near field of view1400 mm × 1200 mm

$16,579.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

4.78 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DLS1400P Laser galvanometer stereo camera. Laser galvanometer scanning for sub-millimeter image acquisition accuracy Multi-frame fusion overcomes glare from reflective metal surfaces

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DLS1400P
Brand	Hikrobot
Clearance distance (CD)	1500 mm
Measurement range (MR)	2000 mm
Depth image detection accuracy	X, Y:0.8 mm@1.5 m; 1.4 mm@3 m; Z:0.3 mm@1.5 m; 1.0 mm@3 m
Data type	Raw image (mono + color), Depth map, RGB-D image, Dynamic mask image
Laser safety class	Class 3R

Optics

Near field of view	1400 mm × 1200 mm
Far field of view	3300 mm× 2700 mm

Sensor and imaging

Resolution	4000 × 3000 @ RGB image; 1920 × 1456 @ depth map
Scan frame rate	1 fps

Interfaces and I/O

Data interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Client software	RobotPilot, HiViewer

Light

Color image detection accuracy	X, Y:0.4 mm@1.5 m; 0.8 mm@3m
Wavelength	638 nm

Environment and compliance

Ingress protection	IP65
Temperature	Operating temperature: 0 to 40 °C, Storage temp.: -30 to 80 °C
Humidity	20% to 85% RH (non-condensing)
Certification	CE, RoHS

Computing

Operating system	Windows 7/10/11 32/64bits

Electrical

Power supply	12 ~ 24 VDC
Power consumption	15W@24 VDC

Mechanical

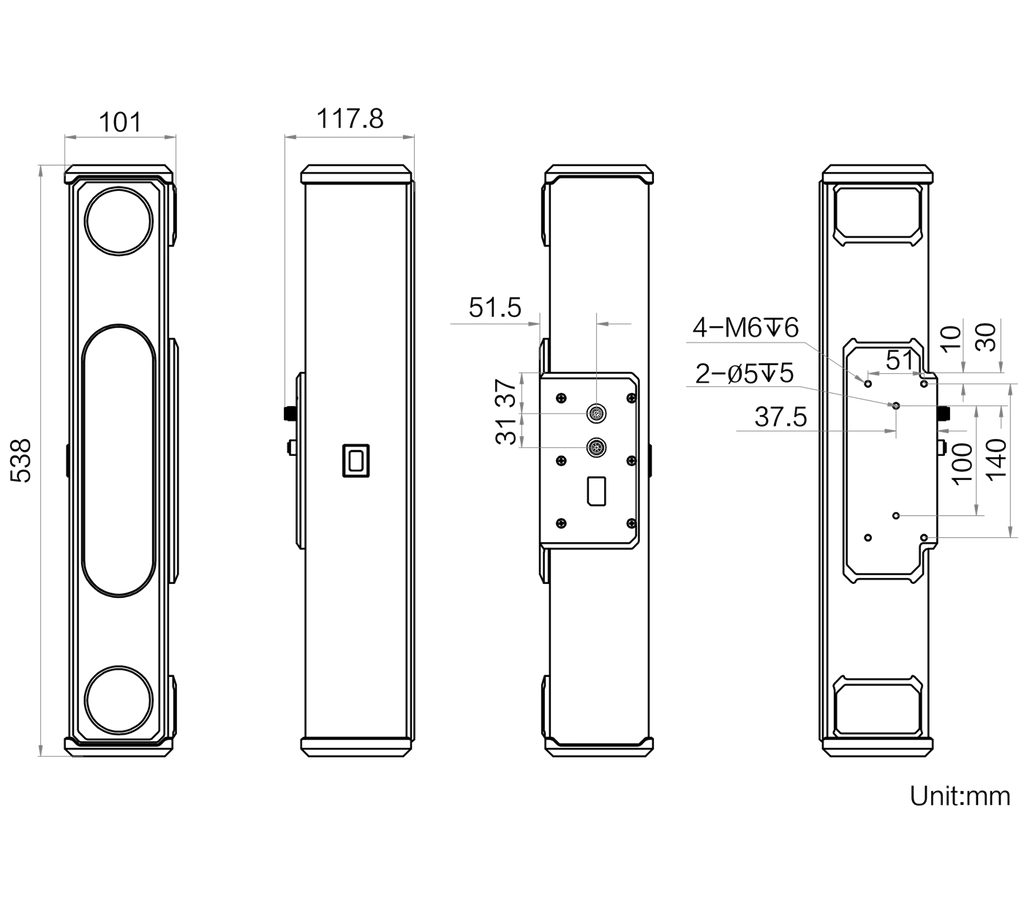

Dimension	538 mm × 101 mm × 117.8 mm
Weight	Approx. 3.34 kg
Shipping weight (estimated)	4.78 kg

Downloads

Features

Laser galvanometer scanning for sub-millimeter image acquisition accuracy
Multi-frame fusion overcomes glare from reflective metal surfaces
Energy-efficient laser module with precise exposure synchronization for more stable performance
Synchronized, aligned RGB and depth map output for easy secondary development
Narrow-band filter for stronger interference resistance and wider dynamic range
Extra-large field of view for a wider range of applications
