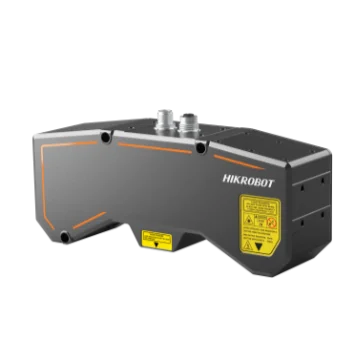

Hikrobot MIS-DP3600-10D 3D laser profile sensor
Model MIS-DP3600-10DHikrobot
- TypeLaser profiler
- Data points/profile3200
- Reference distance63.5 mm
- Resolution (Z-axis)1.51 µm ~ 2.68 µm
$12,379.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
2.2 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MIS-DP3600-10D 3D laser profile sensor. Dual image sensor design eliminates blind spots and suppresses stray light Built-in high-precision 3D algorithm with sub-micron repeatability
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MIS-DP3600-10D |
|---|---|
| Brand | Hikrobot |
| Data points/profile | 3200 |
| Reference distance | 63.5 mm |
| Measurement range (Z-axis) | 26.0 mm |
| Measurement range (X-axis) | 26.5 mm @ near end; 31.0 mm @ reference distance; 35.5 mm @ far end |
| Repeatability (Z-axis)* | 0.49 µm@data from testing standard gauge blocks with the sensor on an optical table |
| Linearity Z-axis (±% of MR) | 0.008 |
| Profile data interval | 8.5 µm ~ 11.6 µm |
| Laser safety class | Class3R |
Sensor and imaging
| Resolution (Z-axis) | 1.51 µm ~ 2.68 µm |
|---|---|
| Scan frame rate | 3.4k Hz to 46.7k Hz (high frame rate mode) |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), Compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector for power and I/O, 2 differential signal inputs (Line 3/6), 2 opto-isolated inputs (Line 0/9), 1 differential signal output (Line 1) |
| Client software | 3DMVS, VM3D, or third-party 3D software |
Light
| Wavelength | 405 nm |
|---|
Environment and compliance
| Ingress protection | IP67 |
|---|---|
| Temperature | Operating temperature: 0 °C to 40 °C, Storage temp.: -30 °C to 80 °C |
| Humidity | 20% RH to 85% RH (no condensation) |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (8 GB memory and above, and i5 CPU recommended) |
|---|
Electrical
| Data output | Profile data, Depth map, Intensity image, Line-width image |
|---|---|
| Trigger mode | Software trigger, hardware trigger (differential encoder) |
| Power supply | 24 VDC |
| Power consumption | 28 W@24 VDC |
Mechanical

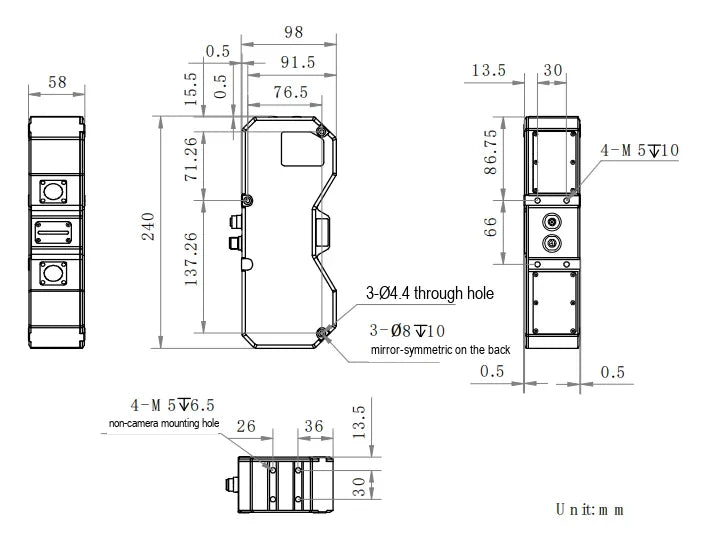

| Dimension | 240 mm × 98 mm × 58 mm |
|---|---|
| Weight | Approx. 1500 g (3.3 lb.) |
| Shipping weight (estimated) | 2.20 kg |
