3D sensors

Hikrobot MV-DB1300A-V V2.0 Multi-DOE speckle structured-light 3D camera (volume measurement)

Model MV-DB1300A-V V2.0Hikrobot

InterfaceGigabit Ethernet(1000Mbit/s)
TypeLogistics / volume
Near field of view870 mm × 860 mm@1100 mm
Typical field of view2000 mm × 1600 mm@2100 mm

$3,229.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

2.33 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DB1300A-V V2.0 Multi-DOE speckle structured-light 3D camera. Custom optical system with built-in high-precision depth fusion algorithm for excellent image quality Multiple exposure modes and narrow-band filter for greater environmental adaptability

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DB1300A-V V2.0
Brand	Hikrobot
Clearance distance (CD)	1100 mm
Measurement range (MR)	2100 mm
Repeatability (Z-axis)*	1.5 mm@2100 mm
Data type	Raw image (mono + color), Depth map, RGB-D image, Volume data
Laser safety class	CLASS 3R

Optics

Near field of view	870 mm × 860 mm@1100 mm
Typical field of view	2000 mm × 1600 mm@2100 mm
Far field of view	3340 mm× 2500 mm@3200 mm

Sensor and imaging

Resolution	3072 × 2048 @ RGB image; 1536 × 1024 @ depth map

Interfaces and I/O

Data interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Client software	HiViewer, Volume measurement software

Light

Wavelength	850 nm

Environment and compliance

Ingress protection	IP65
Temperature	Operating temperature: 0°C to 45°C, Storage temp.: -30 °C to 80 °C
Humidity	20% RH to 85% RH (no condensation)
Certification	RoHS

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Image output latency	1.4 s ~ 1.7 s @ volume measurement mode
Power supply	24 VDC
Power consumption	10 W@24 VDC

Mechanical

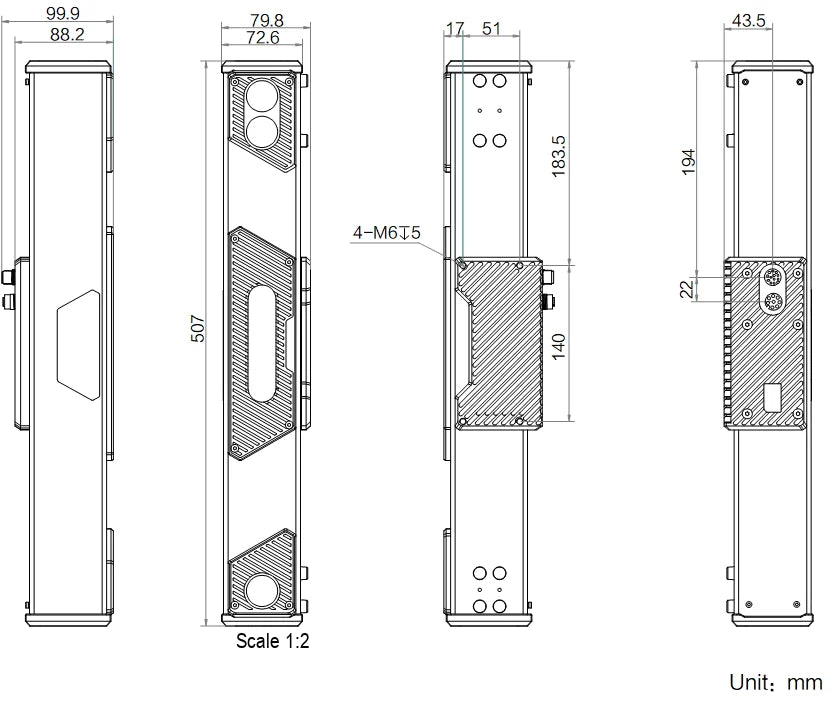

Dimension	507 mm × 79.8 mm × 99.9 mm
Weight	1.59 kg
Shipping weight (estimated)	2.33 kg

Downloads

Features

Custom optical system with built-in high-precision depth fusion algorithm for excellent image quality
Multiple exposure modes and narrow-band filter for greater environmental adaptability
High-strength carbon-fiber design with IP65 protection for high stability
Extra-large field of view and depth of field, optimized for large-item volume measurement

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer
